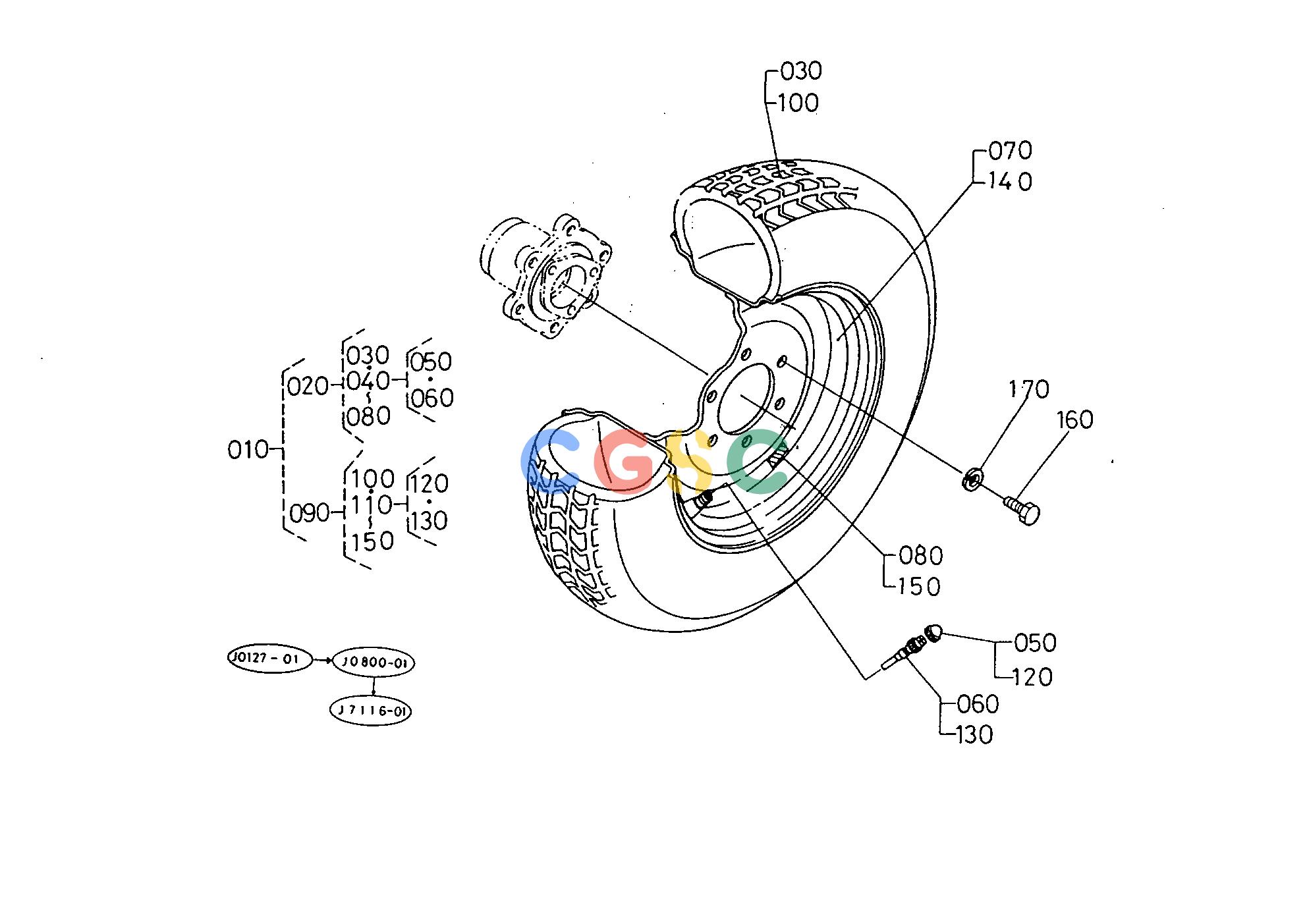

Pos.	Part No	Qty	Parts name	Comments
010.	3243011600	[1]	ASSY FRONT WHEEL	ORANGE; <=12489 40.6120(lbs); 18.460
010.	3248011600	[1]	ASSY FRONT WHEEL	DEEP ORANGE; =>12490 83.6000(lbs); 38.000
020.	3243011610	[1]	ASSY FRONT WHEEL RH	ORANGE; <=12489 41.8000(lbs); 19.000
020.	3248011610	[1]	ASSY FRONT WHEEL RH	DEEP ORANGE; =>12490 0.0000(lbs); 0.000
030.	3523011810	[1]	TIRE	17.6000(lbs); 8.000
040.	3415911850	[1]	VALVE TIRE	0.0286(lbs); 0.013
050.	3824011690	[1]	CAP VALVE	0.0044(lbs); 0.002
060.	3215027740	[1]	CORE VALVE	0.0066(lbs); 0.003
070.	3243011650	[1]	ASSY WHEEL	ORANGE; <=12489 0.0000(lbs); 0.000
070.	3248011650	[1]	ASSY WHEEL	DEEP ORANGE; =>12490 22.0000(lbs); 10.000
080.	3243011720	[1]	LABEL TIRE RH	ORANGE; <=12489 0.0000(lbs); 0.000
080.	3248011720	[1]	LABEL TIRE RH	DEEP ORANGE; =>12490 0.0022(lbs); 0.001
090.	3243011620	[1]	ASSY FRONT WHEEL LH	ORANGE; <=12489 41.8000(lbs); 19.000
090.	3248011620	[1]	ASSY FRONT WHEEL LH	DEEP ORANGE; =>12490 0.0000(lbs); 0.000
100.	3523011810	[1]	TIRE	17.6000(lbs); 8.000
110.	3415911850	[1]	VALVE TIRE	0.0286(lbs); 0.013
120.	3824011690	[1]	CAP VALVE	0.0044(lbs); 0.002
130.	3215027740	[1]	CORE VALVE	0.0066(lbs); 0.003
140.	3243011650	[1]	ASSY WHEEL	ORANGE; <=12489 0.0000(lbs); 0.000
140.	3248011650	[1]	ASSY WHEEL	DEEP ORANGE; =>12490 22.0000(lbs); 10.000
150.	3243011710	[1]	LABEL TIRE LH	ORANGE; <=12489 0.0000(lbs); 0.000
150.	3248011710	[1]	LABEL TIRE LH	DEEP ORANGE; =>12490 0.0022(lbs); 0.001
160.	0117351425	[12]	BOLT	0.1166(lbs); 0.053
170.	0451250140	[12]	WASHER SPRING	0.0220(lbs); 0.010
