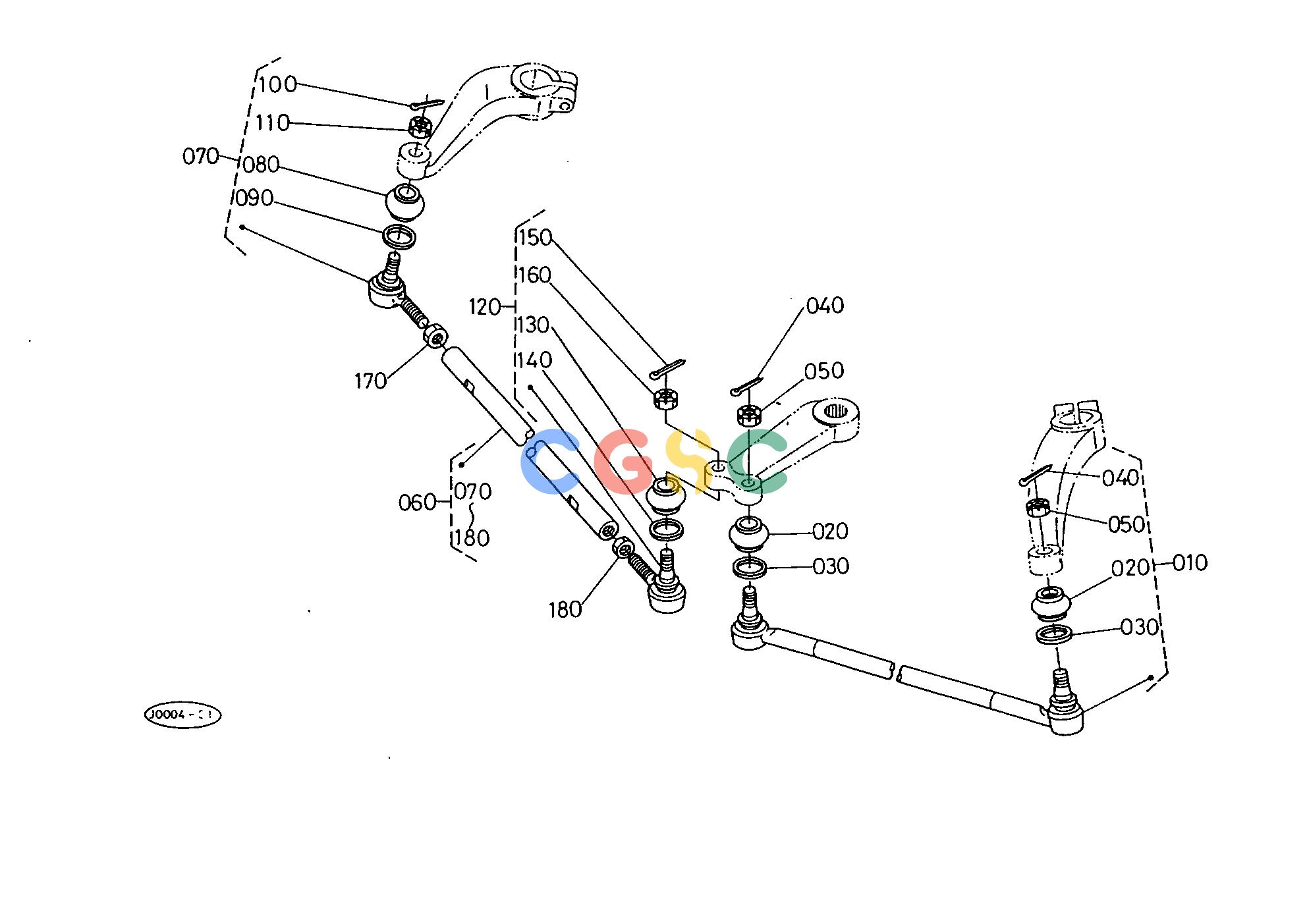

久保田零件查询T09101 STEERING LINKAGE STEERINGEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
429 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3241012400
|
[1] |
ASSY ROD TIE LH
|
4.8840(lbs); 2.220
|
| 020. |
3824012650
|
[2] |
COVER DUST
|
0.0220(lbs); 0.010
|
| 030. |
3824012660
|
[2] |
CLIP
|
0.0110(lbs); 0.005
|
| 040. |
0551150325
|
[2] |
PIN SPLIT
|
0.0044(lbs); 0.002
|
| 050. |
3824012830
|
[2] |
NUT
|
0.0176(lbs); 0.008
|
| 060. |
3241012500
|
[1] |
ASSY ROD TIE RH
|
4.0480(lbs); 1.840
|
| 070. |
3844044780
|
[1] |
ASSY END TIE ROD RH
|
0.7084(lbs); 0.322
|
| 070. |
H384044700
|
[1] |
END,ROD,ASSY
|
0.7084(lbs); 0.322
|
| 080. |
3824012650
|
[1] |
COVER DUST
|
0.0220(lbs); 0.010
|
| 090. |
3824012660
|
[1] |
CLIP
|
0.0110(lbs); 0.005
|
| 100. |
0551150325
|
[1] |
PIN SPLIT
|
0.0044(lbs); 0.002
|
| 110. |
3824012830
|
[1] |
NUT
|
0.0176(lbs); 0.008
|
| 120. |
3844044790
|
[1] |
ASSY END TIE ROD LH
|
0.7040(lbs); 0.320
|
| 130. |
3824012650
|
[1] |
COVER DUST
|
0.0220(lbs); 0.010
|
| 140. |
3824012660
|
[1] |
CLIP
|
0.0110(lbs); 0.005
|
| 150. |
0551150325
|
[1] |
PIN SPLIT
|
0.0044(lbs); 0.002
|
| 160. |
3824012830
|
[1] |
NUT
|
0.0176(lbs); 0.008
|
| 170. |
0217450160
|
[1] |
NUT
|
0.0484(lbs); 0.022
|
| 180. |
3224012280
|
[1] |
NUT
|
0.0374(lbs); 0.017
|
