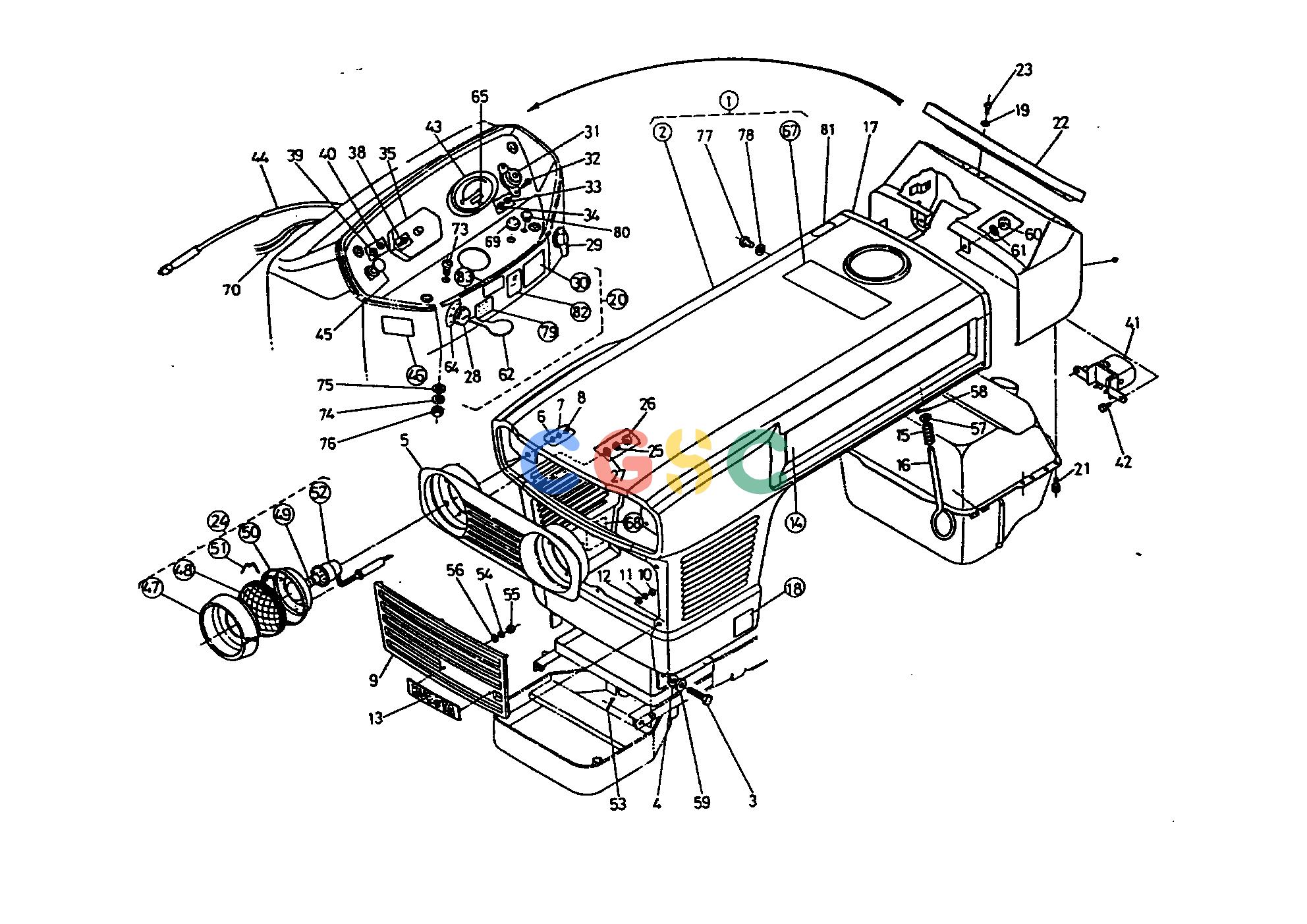

久保田零件查询420000 HOOD BONNET(HOOD) AND CHASSISEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
806 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3420918102
|
[1] |
ASSY HOOD
|
0.0000(lbs); 0.000
|
| 003. |
3415018172
|
[2] |
BOLT
|
0.0000(lbs); 0.000
|
| 004. |
0401350120
|
[2] |
WASHER FLAT
|
0.0154(lbs); 0.007
|
| 005. |
3420018152
|
[1] |
GRILLE LAMP
|
0.0000(lbs); 0.000
|
| 006. |
0401550050
|
[4] |
WASHER FLAT
|
0.0088(lbs); 0.004
|
| 007. |
0451250050
|
[4] |
WASHER LOCK
|
0.0022(lbs); 0.001
|
| 008. |
0205350050
|
[4] |
NUT
|
0.0022(lbs); 0.001
|
| 009. |
3415018192
|
[1] |
GRILLE HOOD
|
0.0000(lbs); 0.000
|
| 010. |
0205350050
|
[6] |
NUT
|
0.0022(lbs); 0.001
|
| 011. |
0451250050
|
[6] |
WASHER LOCK
|
0.0022(lbs); 0.001
|
| 012. |
0401350050
|
[6] |
WASHER FLAT
|
0.0022(lbs); 0.001
|
| 013. |
3224018265
|
[1] |
MARK FRONT KUBOTA
|
0.0000(lbs); 0.000
|
| 014. |
3421944910
|
[2] |
MARK SIDE KUBOTA
|
0.0286(lbs); 0.013
|
| 015. |
3224023920
|
[2] |
SPRING
|
0.0154(lbs); 0.007
|
| 016. |
3420018140
|
[2] |
HOOK HOOD
|
0.1298(lbs); 0.059
|
| 017. |
3415018133
|
[1] |
CUSHION HOOD
|
0.0000(lbs); 0.000
|
| 018. |
3215018252
|
[1] |
LABEL
|
0.0000(lbs); 0.000
|
| 019. |
0401350080
|
[4] |
WASHER FLAT
|
0.0066(lbs); 0.003
|
| 020. |
3420031100
|
[1] |
ASSY PANEL
|
0.0000(lbs); 0.000
|
| 021. |
0112050816
|
[4] |
BOLT
|
0.0000(lbs); 0.000
|
| 022. |
3415031124
|
[1] |
BOARD PANEL
|
1.3200(lbs); 0.600
|
| 023. |
3415031140
|
[4] |
SCREW
|
0.0198(lbs); 0.009
|
| 024. |
3224033804
|
[2] |
ASSY LAMP HEAD
|
0.0000(lbs); 0.000
|
| 025. |
0451250050
|
[6] |
WASHER LOCK
|
0.0022(lbs); 0.001
|
| 026. |
0205350050
|
[6] |
NUT
|
0.0022(lbs); 0.001
|
| 027. |
0401350050
|
[6] |
WASHER FLAT
|
0.0022(lbs); 0.001
|
| 028. |
3122031803
|
[1] |
SWITCH MAIN
|
0.0000(lbs); 0.000
|
| 029. |
3221032204
|
[1] |
SWITCH STARTER
|
0.0000(lbs); 0.000
|
| 030. |
3221032292
|
[1] |
LABEL STARTER SWITCH
|
0.0000(lbs); 0.000
|
| 031. |
1523165954
|
[1] |
LAMP GLOW
|
0.0000(lbs); 0.000
|
| 032. |
0305420510
|
[2] |
SCREW
|
0.0000(lbs); 0.000
|
| 033. |
0451250050
|
[2] |
WASHER LOCK
|
0.0022(lbs); 0.001
|
| 034. |
0205350050
|
[2] |
NUT
|
0.0022(lbs); 0.001
|
| 035. |
3415033600
|
[1] |
BOX FUSE
|
0.2750(lbs); 0.125
|
| 036. |
3415033610
|
[2] |
LABEL FUSE
|
0.0022(lbs); 0.001
|
| 037. |
3415033620
|
[4] |
FUSE 5A
|
0.0000(lbs); 0.000
|
| 038. |
0301450514
|
[2] |
SCREW
|
0.0044(lbs); 0.002
|
| 039. |
0201350050
|
[2] |
NUT
|
0.0022(lbs); 0.001
|
| 040. |
0451250050
|
[2] |
WASHER LOCK
|
0.0022(lbs); 0.001
|
| 041. |
3325174013
|
[1] |
ASSY REGULATOR
|
0.0000(lbs); 0.000
|
| 042. |
0102050618
|
[2] |
BOLT
|
0.0132(lbs); 0.006
|
| 043. |
3420034603
|
[1] |
METER TRACTOR
|
0.0000(lbs); 0.000
|
| 044. |
3420034650
|
[1] |
CABLE TRACTOR METER
|
0.4312(lbs); 0.196
|
| 045. |
3420034700
|
[1] |
WIRE DECOMP.
|
0.0000(lbs); 0.000
|
| 046. |
3221034793
|
[1] |
LABEL DECOMP.
|
0.0000(lbs); 0.000
|
| 048. |
3228033830
|
[2] |
LENS
|
0.2156(lbs); 0.098
|
| 049. |
3212033840
|
[2] |
LAMP
|
0.0242(lbs); 0.011
|
| 051. |
3228033890
|
[8] |
CLAMP
|
0.0022(lbs); 0.001
|
| 052. |
3228033850
|
[2] |
RUBBER
|
0.0110(lbs); 0.005
|
| 053. |
0551100425
|
[2] |
PIN SPLIT
|
0.0000(lbs); 0.000
|
| 054. |
0451250050
|
[2] |
WASHER LOCK
|
0.0022(lbs); 0.001
|
| 055. |
0205350050
|
[2] |
NUT
|
0.0022(lbs); 0.001
|
| 056. |
0401350050
|
[2] |
WASHER FLAT
|
0.0022(lbs); 0.001
|
| 057. |
0401350080
|
[2] |
WASHER FLAT
|
0.0066(lbs); 0.003
|
| 058. |
0551100320
|
[2] |
PIN SPLIT
|
0.0000(lbs); 0.000
|
| 059. |
3415018180
|
[2] |
GASKET
|
0.0066(lbs); 0.003
|
| 060. |
0201350060
|
[2] |
NUT
|
0.0000(lbs); 0.000
|
| 061. |
0401250060
|
[2] |
WASHER FLAT
|
0.0022(lbs); 0.001
|
| 062. |
3213031812
|
[2] |
KEY SWITCH
|
0.0000(lbs); 0.000
|
| 063. |
3224034482
|
[1] |
CLAMP CORD
|
0.0176(lbs); 0.008
|
| 064. |
3415031830
|
[1] |
LABEL 1
|
0.0022(lbs); 0.001
|
| 065. |
3415034610
|
[1] |
LAMP OIL
|
0.0000(lbs); 0.000
|
| 066. |
3415034620
|
[1] |
LAMP
|
0.0022(lbs); 0.001
|
| 067. |
3415035250
|
[1] |
LABEL
|
0.0022(lbs); 0.001
|
| 068. |
1510394590
|
[1] |
LABEL
|
0.0022(lbs); 0.001
|
| 069. |
3415934290
|
[1] |
CAP RUBBER
|
0.0088(lbs); 0.004
|
| 070. |
3420934300
|
[1] |
ASSY WIRE HARNESS
|
1.3420(lbs); 0.610
|
| 071. |
3420934313
|
[1] |
WIRE HARNESS 1
|
0.0000(lbs); 0.000
|
| 072. |
3415034320
|
[1] |
WIRE HARNESS 2
|
0.0110(lbs); 0.005
|
| 073. |
0301750812
|
[1] |
SCREW
|
0.0198(lbs); 0.009
|
| 074. |
0451250080
|
[1] |
WASHER LOCK
|
0.0044(lbs); 0.002
|
| 075. |
0401250080
|
[1] |
WASHER FLAT
|
0.0022(lbs); 0.001
|
| 076. |
0211650080
|
[1] |
NUT
|
0.0066(lbs); 0.003
|
| 077. |
0301450510
|
[1] |
SCREW
|
0.0044(lbs); 0.002
|
| 078. |
0451250050
|
[1] |
WASHER LOCK
|
0.0022(lbs); 0.001
|
| 079. |
3415931840
|
[1] |
LABEL 2
|
0.0022(lbs); 0.001
|
| 080. |
3415932610
|
[1] |
PLUG RUBBER
|
0.0000(lbs); 0.000
|
| 081. |
3415017590
|
[1] |
LABEL
|
0.0022(lbs); 0.001
|
| 082. |
3415017610
|
[1] |
LABEL
|
0.0000(lbs); 0.000
|
| 083. |
3415934920
|
[1] |
LABEL
|
0.0044(lbs); 0.002
|
