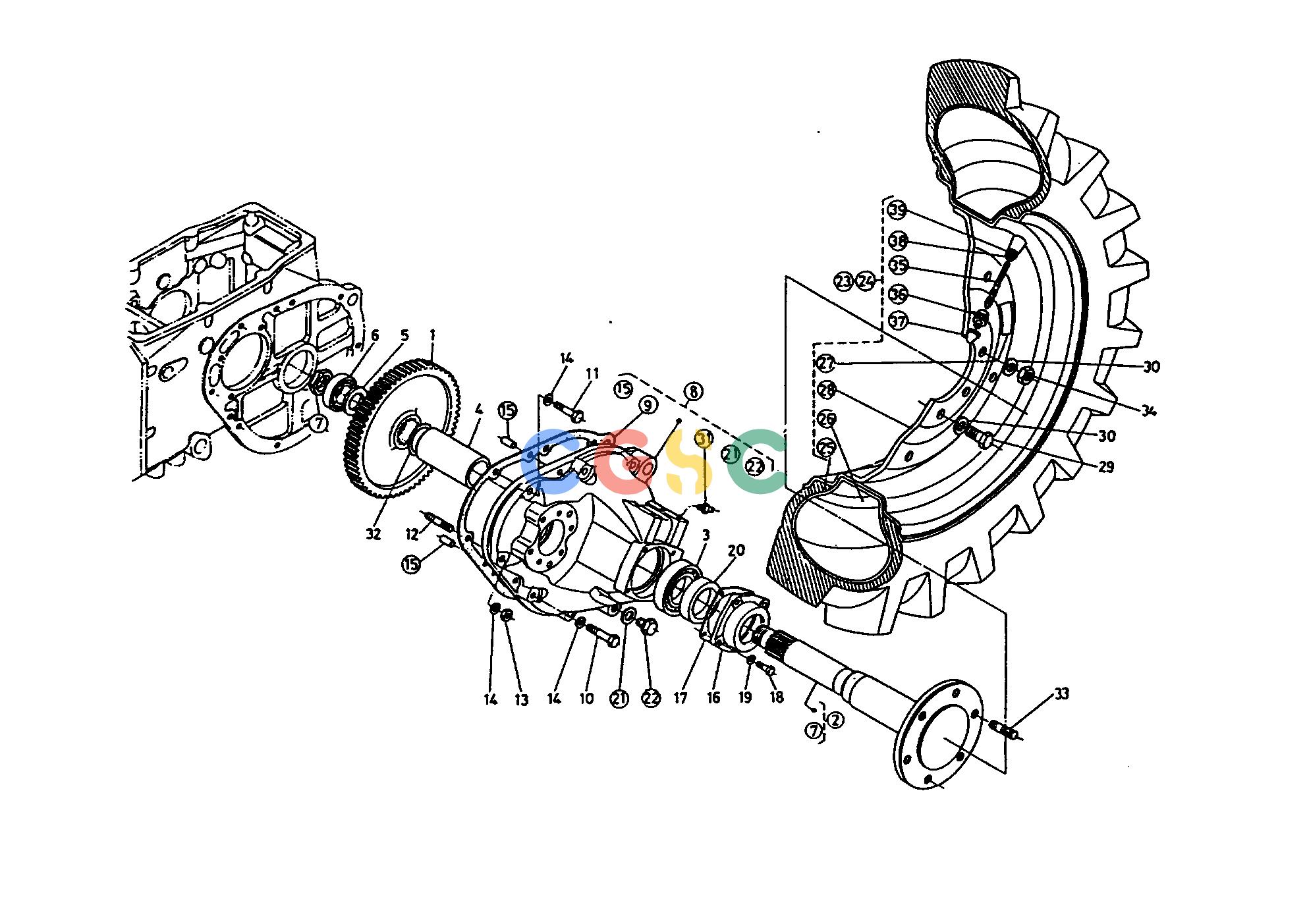

久保田零件查询460000 REAR WHEEL SHAFT REAR AXLE AND REAR WHEELEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
877 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3415926833
|
[2] |
GEAR 62
|
0.0000(lbs); 0.000
|
| 002. |
3415927100
|
[2] |
ASSY SHAFT REAR WHEE
|
23.4300(lbs); 10.650
|
| 003. |
0810106209
|
[2] |
BEARING(6209)
|
0.9240(lbs); 0.420
|
| 004. |
3415027140
|
[2] |
COLLAR
|
1.2100(lbs); 0.550
|
| 005. |
3415027150
|
[2] |
COLLAR
|
0.0770(lbs); 0.035
|
| 006. |
0810106206
|
[2] |
BEARING(6206)
|
0.4290(lbs); 0.195
|
| 007. |
3415025333
|
[2] |
NUT
|
0.0000(lbs); 0.000
|
| 008. |
3415927310
|
[1] |
CASE REAR WHEEL SHAF
|
24.2000(lbs); 11.000
|
| 008. |
3415927330
|
[1] |
CASE REAR WHEEL SHAF
|
23.1440(lbs); 10.520
|
| 009. |
3415027322
|
[2] |
GASKET
|
0.0000(lbs); 0.000
|
| 010. |
0117351055
|
[12] |
BOLT
|
0.0792(lbs); 0.036
|
| 011. |
0117351042
|
[2] |
BOLT
|
0.0660(lbs); 0.030
|
| 012. |
3415027440
|
[2] |
STUD
|
0.0550(lbs); 0.025
|
| 013. |
0211750100
|
[2] |
NUT
|
0.0000(lbs); 0.000
|
| 014. |
0451250100
|
[16] |
WASHER LOCK
|
0.0066(lbs); 0.003
|
| 015. |
0501201022
|
[4] |
PIN
|
0.0308(lbs); 0.014
|
| 016. |
3415027515
|
[2] |
COVER REAR WHEEL SHA
|
0.0000(lbs); 0.000
|
| 017. |
3415027520
|
[2] |
GASKET
|
0.0000(lbs); 0.000
|
| 018. |
0115350835
|
[8] |
BOLT
|
0.0352(lbs); 0.016
|
| 019. |
0451250080
|
[8] |
WASHER LOCK
|
0.0044(lbs); 0.002
|
| 020. |
3415027560
|
[2] |
SEAL OIL
|
0.2024(lbs); 0.092
|
| 021. |
0471701700
|
[2] |
WASHER SEAL
|
0.0066(lbs); 0.003
|
| 022. |
3415027580
|
[2] |
PLUG
|
0.0022(lbs); 0.001
|
| 023. |
3421927900
|
[1] |
ASSY WHEEL REAR
|
0.0000(lbs); 0.000
|
| 024. |
3421927910
|
[1] |
WHEEL REAR LH
|
0.0000(lbs); 0.000
|
| 024. |
3421927990
|
[1] |
WHEEL REAR RH
|
140.8000(lbs); 64.00
|
| 025. |
3421927920
|
[2] |
TIRE
|
88.0000(lbs); 40.000
|
| 026. |
3421927930
|
[2] |
TUBE
|
9.4600(lbs); 4.300
|
| 027. |
3415927830
|
[2] |
LABEL
|
0.0022(lbs); 0.001
|
| 028. |
3421927950
|
[2] |
WHEEL
|
0.0000(lbs); 0.000
|
| 029. |
0107351630
|
[8] |
BOLT
|
0.1738(lbs); 0.079
|
| 030. |
0451350500
|
[12] |
WASHER LOCK
|
0.0000(lbs); 0.000
|
| 031. |
0661115675
|
[2] |
NIPPLE GREASE
|
0.0044(lbs); 0.002
|
| 032. |
3415027160
|
[2] |
SHIM
|
0.0220(lbs); 0.010
|
| 033. |
3415027710
|
[4] |
STUD
|
0.1364(lbs); 0.062
|
| 034. |
0207450160
|
[4] |
NUT
|
0.0638(lbs); 0.029
|
| 035. |
3215027700
|
[2] |
ASSY VALVE
|
0.0022(lbs); 0.001
|
| 036. |
3215027740
|
[2] |
CORE VALVE
|
0.0066(lbs); 0.003
|
| 037. |
3215027750
|
[2] |
CAP
|
0.0000(lbs); 0.000
|
| 038. |
3227027730
|
[2] |
HOUSING CORE
|
0.0308(lbs); 0.014
|
| 039. |
3215027710
|
[2] |
NUT RIM
|
0.0132(lbs); 0.006
|
