久保田零件查询006000 INLET AND EXHAUST MANIFOLD ENGINEEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
984 次

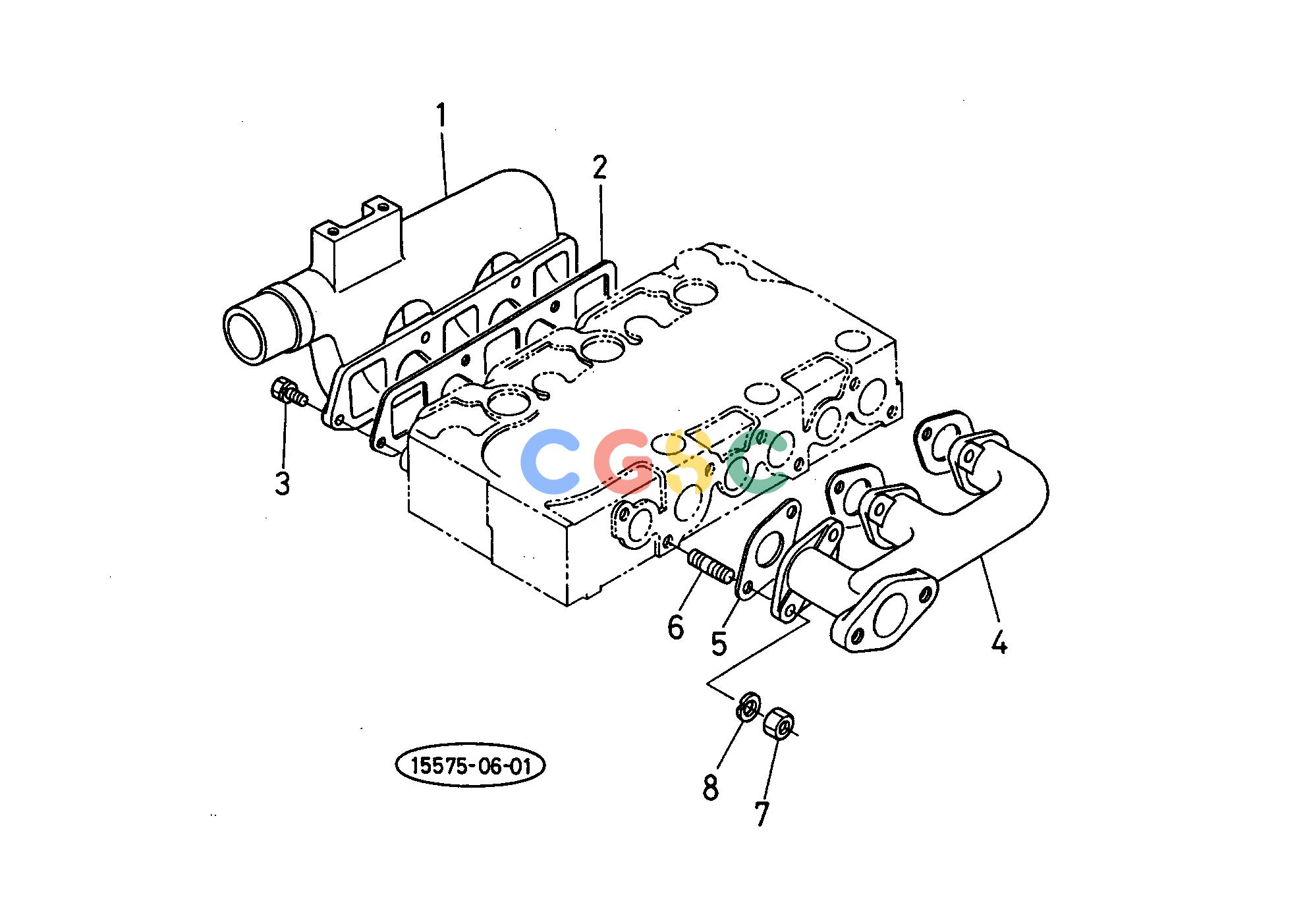

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
1550111760
|
[1] |
MANIFOLD INLET
|
1.6500(lbs); 0.750
|
| 002. |
1552111820
|
[1] |
GASKET INLET MANIFOL
|
0.0000(lbs); 0.000
|
| 003. |
0112350822
|
[5] |
BOLT
|
0.0264(lbs); 0.012
|
| 004. |
1532112310
|
[1] |
MANIFOLD EXHAUST
|
3.2120(lbs); 1.460
|
| 005. |
1552112350
|
[3] |
GASKET EXHAUST MANIF
|
0.0000(lbs); 0.000
|
| 006. |
1522191530
|
[6] |
STUD
|
0.0220(lbs); 0.010
|
| 007. |
0215650080
|
[6] |
NUT
|
0.0088(lbs); 0.004
|
| 008. |
0451250080
|
[6] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
