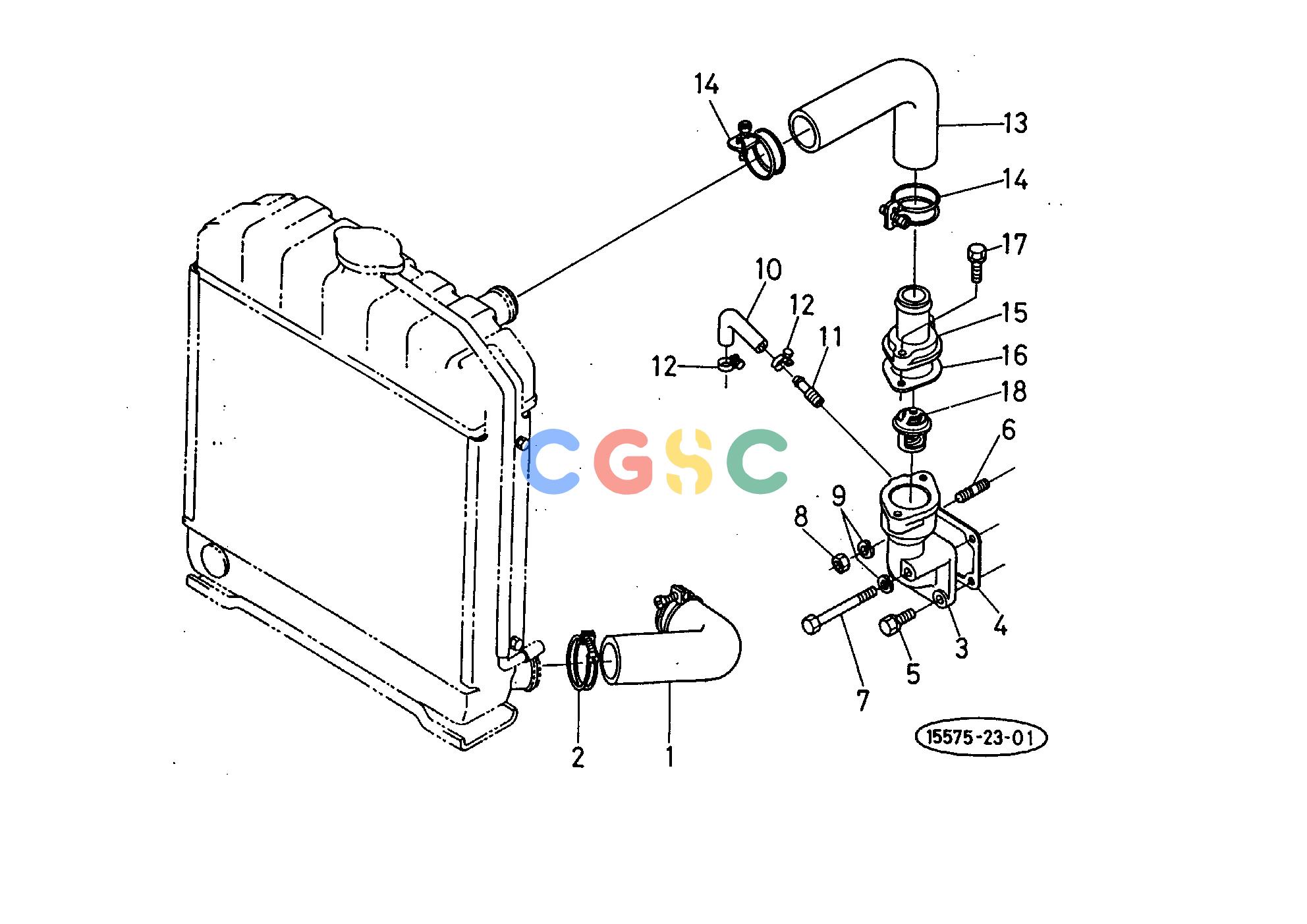

久保田零件查询023000 WATER PIPE ENGINEEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
128 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
1532172850
|
[1] |
PIPE WATER 1
|
0.3520(lbs); 0.160
|
| 002. |
1510872870
|
[2] |
BAND
|
0.0594(lbs); 0.027
|
| 003. |
1552172910
|
[1] |
FLANGE WATER
|
0.0000(lbs); 0.000
|
| 004. |
1552172920
|
[1] |
GASKET WATER FLANGE
|
0.0000(lbs); 0.000
|
| 005. |
0112350822
|
[2] |
BOLT
|
0.0264(lbs); 0.012
|
| 006. |
0151350822
|
[1] |
STUD
|
0.0220(lbs); 0.010
|
| 007. |
0115350870
|
[1] |
BOLT
|
0.0572(lbs); 0.026
|
| 008. |
0215650080
|
[1] |
NUT
|
0.0088(lbs); 0.004
|
| 009. |
0451250080
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 010. |
1552173340
|
[1] |
PIPE WATER RETURN 2
|
0.0550(lbs); 0.025
|
| 011. |
1532173340
|
[1] |
PIPE WATER RETURN 1
|
0.0352(lbs); 0.016
|
| 012. |
1510973360
|
[2] |
BAND PIPE
|
0.0220(lbs); 0.010
|
| 013. |
1532172940
|
[1] |
PIPE WATER 4
|
0.2948(lbs); 0.134
|
| 014. |
1510872870
|
[2] |
BAND
|
0.0594(lbs); 0.027
|
| 015. |
1532173260
|
[1] |
COVER THERMOSTAT
|
0.2354(lbs); 0.107
|
| 016. |
1532173270
|
[1] |
GASKET THERMOSTAT CO
|
0.0000(lbs); 0.000
|
| 017. |
0112350835
|
[2] |
BOLT
|
0.0440(lbs); 0.020
|
| 018. |
1532173010
|
[1] |
ASSY THERMOSTAT
|
0.1496(lbs); 0.068
|
