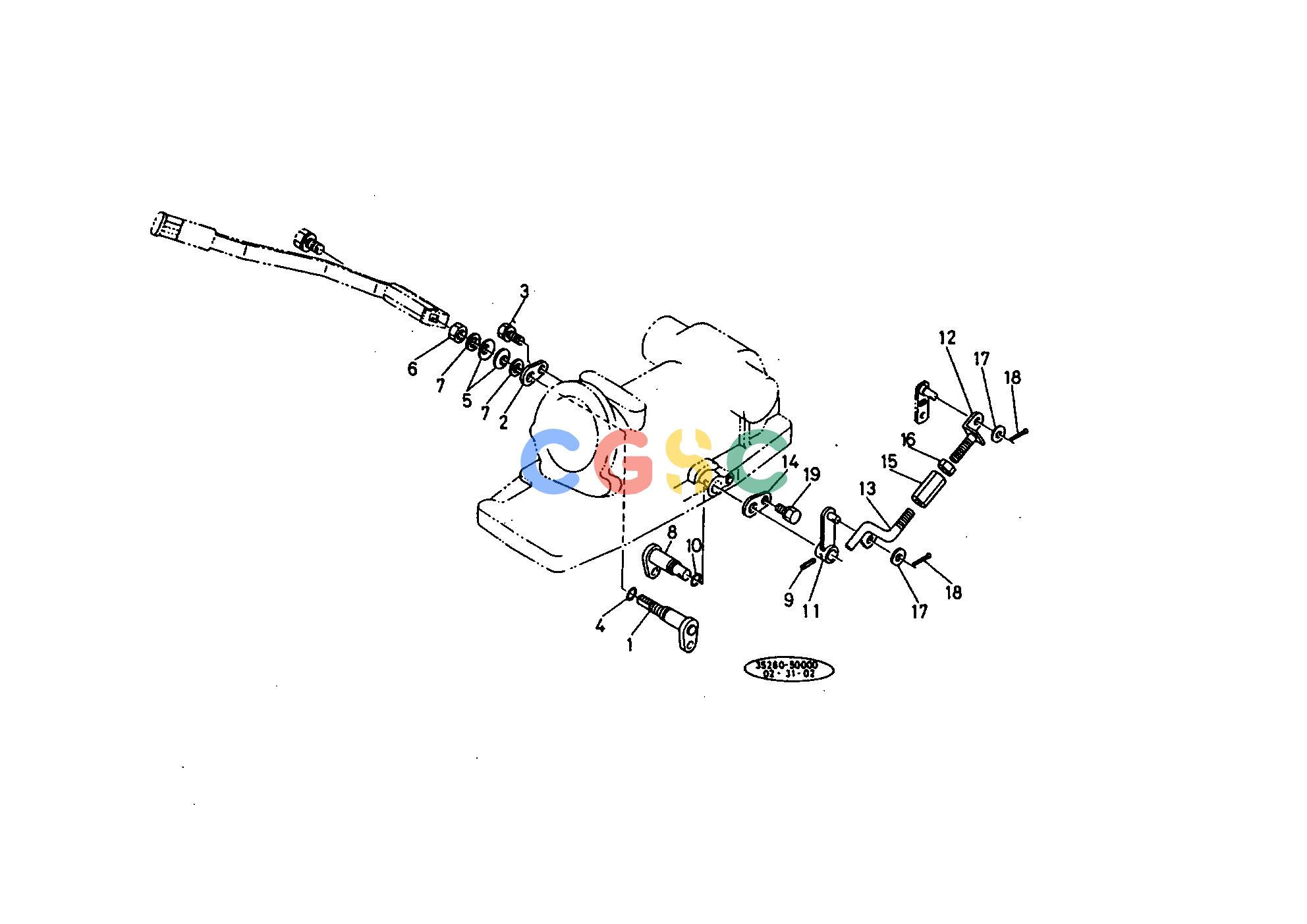

久保田零件查询058000 OIL HYDRAULIC SYSTEM 2 BODYEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
787 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3824037650
|
[1] |
ARM CONTROL
|
0.2420(lbs); 0.110
|
| 002. |
3824036890
|
[1] |
PLATE SET
|
0.0220(lbs); 0.010
|
| 003. |
0112350816
|
[1] |
BOLT
|
0.0242(lbs); 0.011
|
| 004. |
0481100120
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 005. |
3422036880
|
[2] |
SPRING
|
0.0110(lbs); 0.005
|
| 006. |
0217450120
|
[1] |
NUT
|
0.0220(lbs); 0.010
|
| 007. |
3422036890
|
[2] |
WASHER
|
0.0132(lbs); 0.006
|
| 008. |
3824037670
|
[1] |
SHAFT LEVER
|
0.2200(lbs); 0.100
|
| 009. |
0541100420
|
[1] |
PIN SPRING
|
0.0022(lbs); 0.001
|
| 010. |
0481100120
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 011. |
3824037680
|
[1] |
LEVER FEEDBACK
|
0.1100(lbs); 0.050
|
| 012. |
3843037760
|
[1] |
ROD CONTROL 1
|
0.0660(lbs); 0.030
|
| 013. |
3843037770
|
[1] |
ROD CONTROL 2
|
0.0880(lbs); 0.040
|
| 014. |
3824036890
|
[1] |
PLATE SET
|
0.0220(lbs); 0.010
|
| 015. |
3843037780
|
[1] |
TURNBUCKLE
|
0.0660(lbs); 0.030
|
| 016. |
0211250080
|
[1] |
NUT
|
0.0066(lbs); 0.003
|
| 017. |
0401350080
|
[2] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 018. |
0551150215
|
[2] |
PIN SPRIT
|
0.0022(lbs); 0.001
|
| 019. |
0112350816
|
[1] |
BOLT
|
0.0242(lbs); 0.011
|
