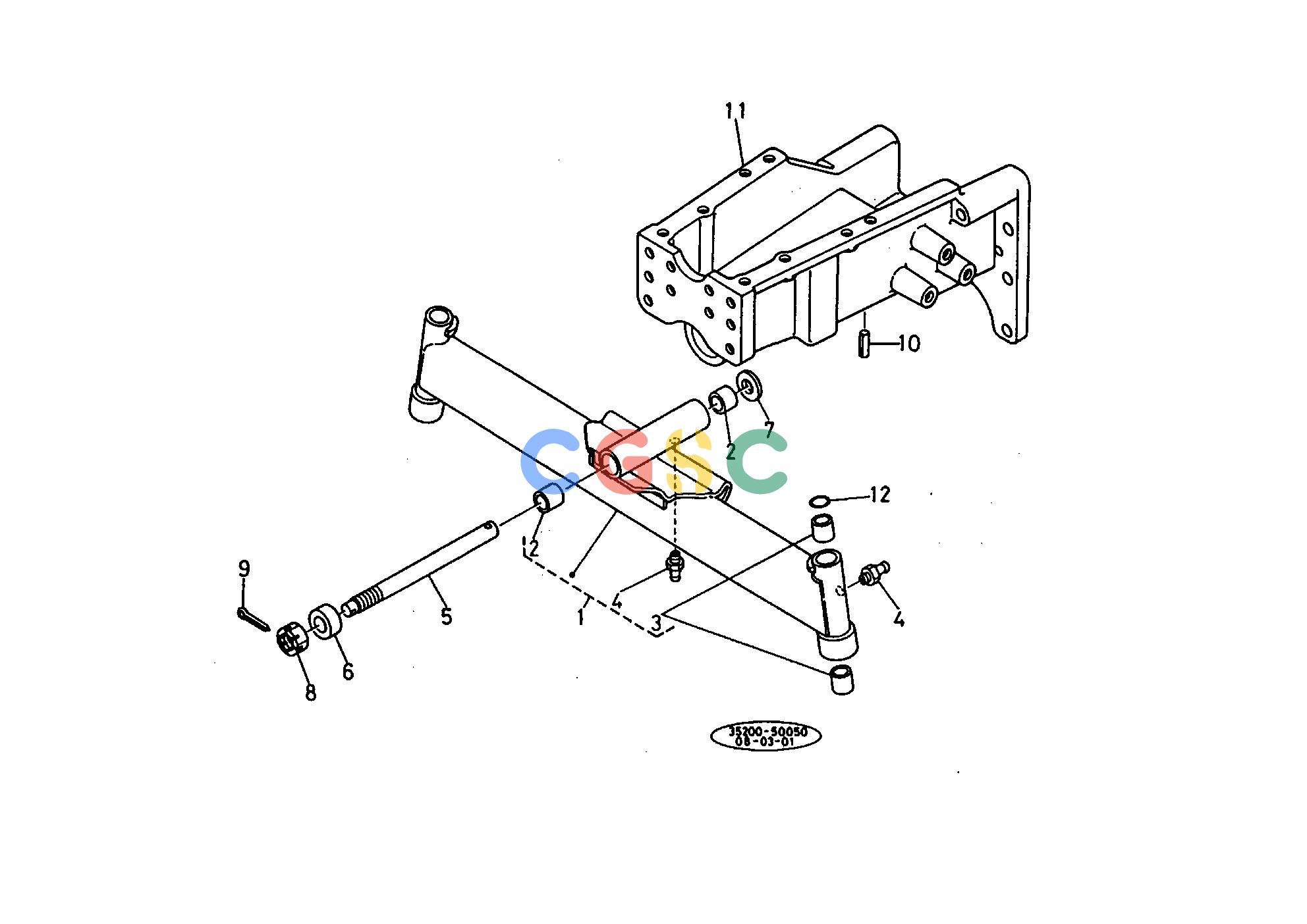

久保田零件查询081000 FRONT AXLE [2WD] FRONT AXLE AND WHEELEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
596 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3520013110
|
[1] |
FRONT AXLE
|
30.3600(lbs); 13.800
|
| 002. |
3415013430
|
[2] |
BUSH
|
0.0594(lbs); 0.027
|
| 003. |
3215011530
|
[4] |
BUSH
|
0.1386(lbs); 0.063
|
| 004. |
0661310010
|
[3] |
NIPPLE GREASE
|
0.0132(lbs); 0.006
|
| 005. |
3715013410
|
[1] |
PIN CENTER
|
1.3530(lbs); 0.615
|
| 006. |
3715013460
|
[1] |
COLLAR ADJUSTING
|
0.2200(lbs); 0.100
|
| 007. |
6413535510
|
[1] |
COLLAR
|
0.0220(lbs); 0.010
|
| 008. |
3221013480
|
[1] |
NUT ADJUSTING
|
0.2464(lbs); 0.112
|
| 009. |
0551150430
|
[1] |
PIN SPLIT
|
0.0088(lbs); 0.004
|
| 010. |
0541100840
|
[1] |
PIN SPRING
|
0.0176(lbs); 0.008
|
| 011. |
3517013654
|
[1] |
BRACKET FRONT AXLE
|
37.1800(lbs); 16.900
|
| 012. |
0481100280
|
[2] |
O RING
|
0.0044(lbs); 0.002
|
