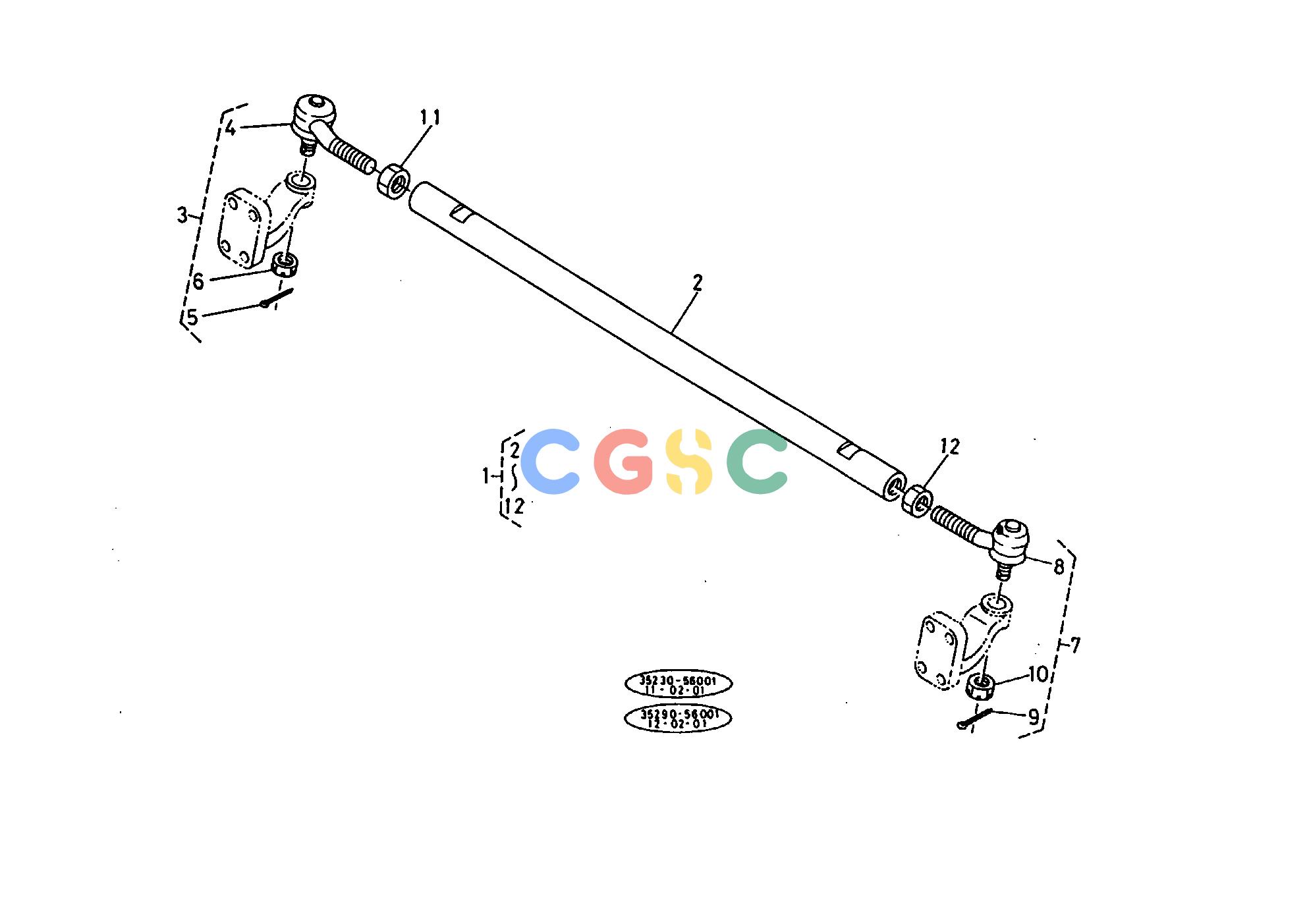

久保田零件查询094000 STEERING LINKAGE [4WD] FRONT AXLE AND WHEELEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
636 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3523043990
|
[1] |
ASSY ROD TIE
|
7.0400(lbs); 3.200
|
| 002. |
3523043960
|
[1] |
ROD TIE
|
5.5000(lbs); 2.500
|
| 003. |
3844044780
|
[1] |
ASSY END TIE ROD RH
|
0.7084(lbs); 0.322
|
| 003. |
H384044700
|
[1] |
END,ROD,ASSY
|
0.7084(lbs); 0.322
|
| 004. |
9999999999
|
[1] |
BLANK
|
0.0000(lbs); 0.000
|
| 005. |
0551150325
|
[1] |
PIN SPLIT
|
0.0044(lbs); 0.002
|
| 006. |
3824012830
|
[1] |
NUT SLOTTED
|
0.0176(lbs); 0.008
|
| 007. |
3844044790
|
[1] |
ASSY END TIE ROD LH
|
0.7040(lbs); 0.320
|
| 008. |
9999999999
|
[1] |
BLANK
|
0.0000(lbs); 0.000
|
| 009. |
0551150325
|
[1] |
PIN SPLIT
|
0.0044(lbs); 0.002
|
| 010. |
3824012830
|
[1] |
NUT SLOTTED
|
0.0176(lbs); 0.008
|
| 011. |
0217450160
|
[1] |
NUT
|
0.0484(lbs); 0.022
|
| 012. |
3224012280
|
[1] |
NUT
|
0.0374(lbs); 0.017
|
