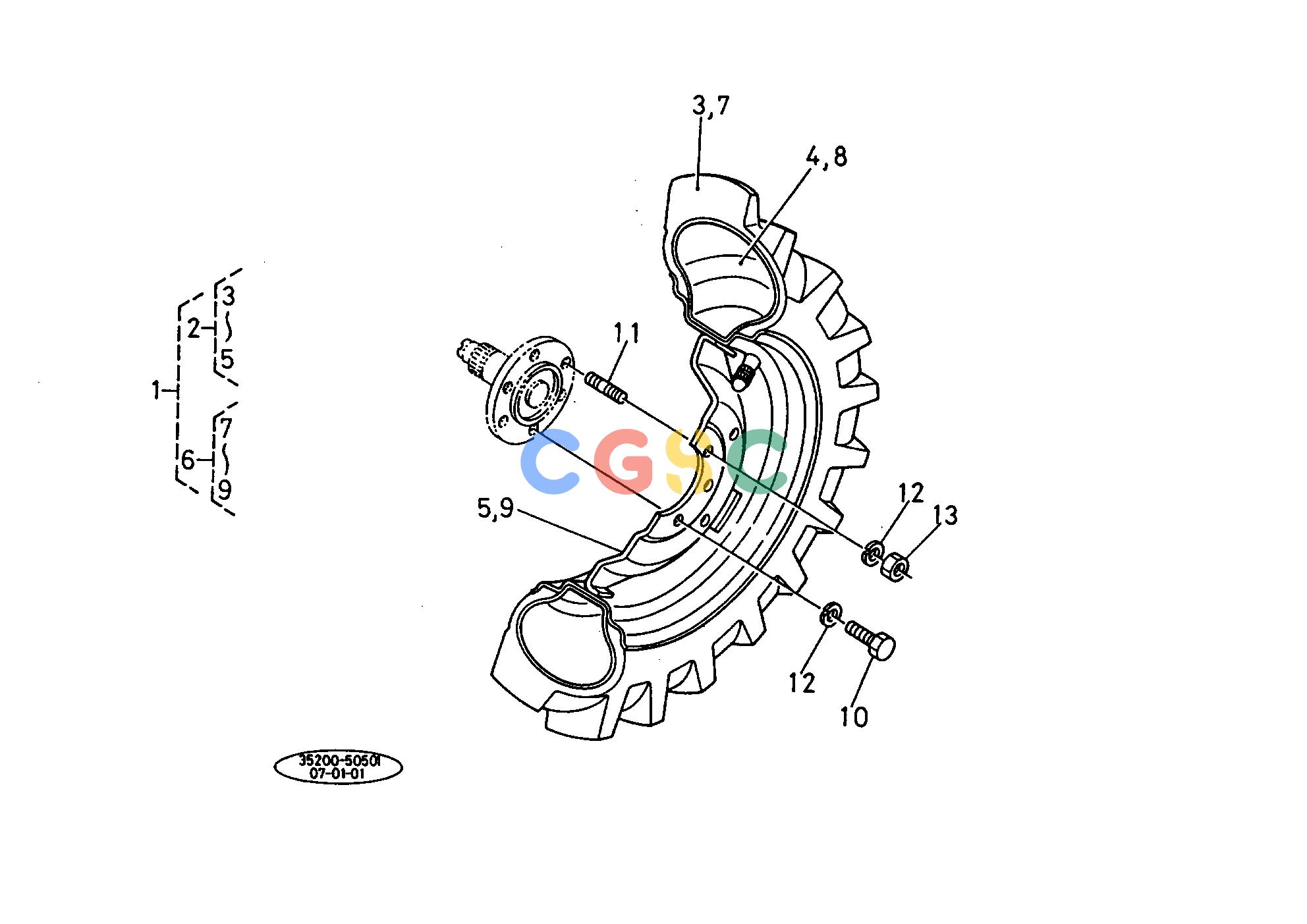

久保田零件查询076000 REAR WHEEL (9.5-24) REAR WHEELEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
125 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3520027902
|
[1] |
ASSY REAR WHEEL
|
0.0000(lbs); 0.000
|
| 002. |
3520027912
|
[1] |
ASSY REAR WHEEL LH
|
105.6000(lbs); 48.00
|
| 003. |
3520027620
|
[1] |
TIRE
|
52.8000(lbs); 24.000
|
| 004. |
3122027630
|
[1] |
TUBE
|
5.9400(lbs); 2.700
|
| 005. |
3520027632
|
[1] |
WHEEL
|
45.1000(lbs); 20.500
|
| 006. |
3520027992
|
[1] |
ASSY REAR WHEEL RH
|
105.6000(lbs); 48.00
|
| 007. |
3520027620
|
[1] |
TIRE
|
52.8000(lbs); 24.000
|
| 008. |
3122027630
|
[1] |
TUBE
|
5.9400(lbs); 2.700
|
| 009. |
3520027632
|
[1] |
WHEEL
|
45.1000(lbs); 20.500
|
| 010. |
0107351630
|
[12] |
BOLT
|
0.1738(lbs); 0.079
|
| 011. |
3415027710
|
[4] |
STUD
|
0.1364(lbs); 0.062
|
| 012. |
0451250160
|
[16] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
| 013. |
0207450160
|
[4] |
NUT
|
0.0638(lbs); 0.029
|
