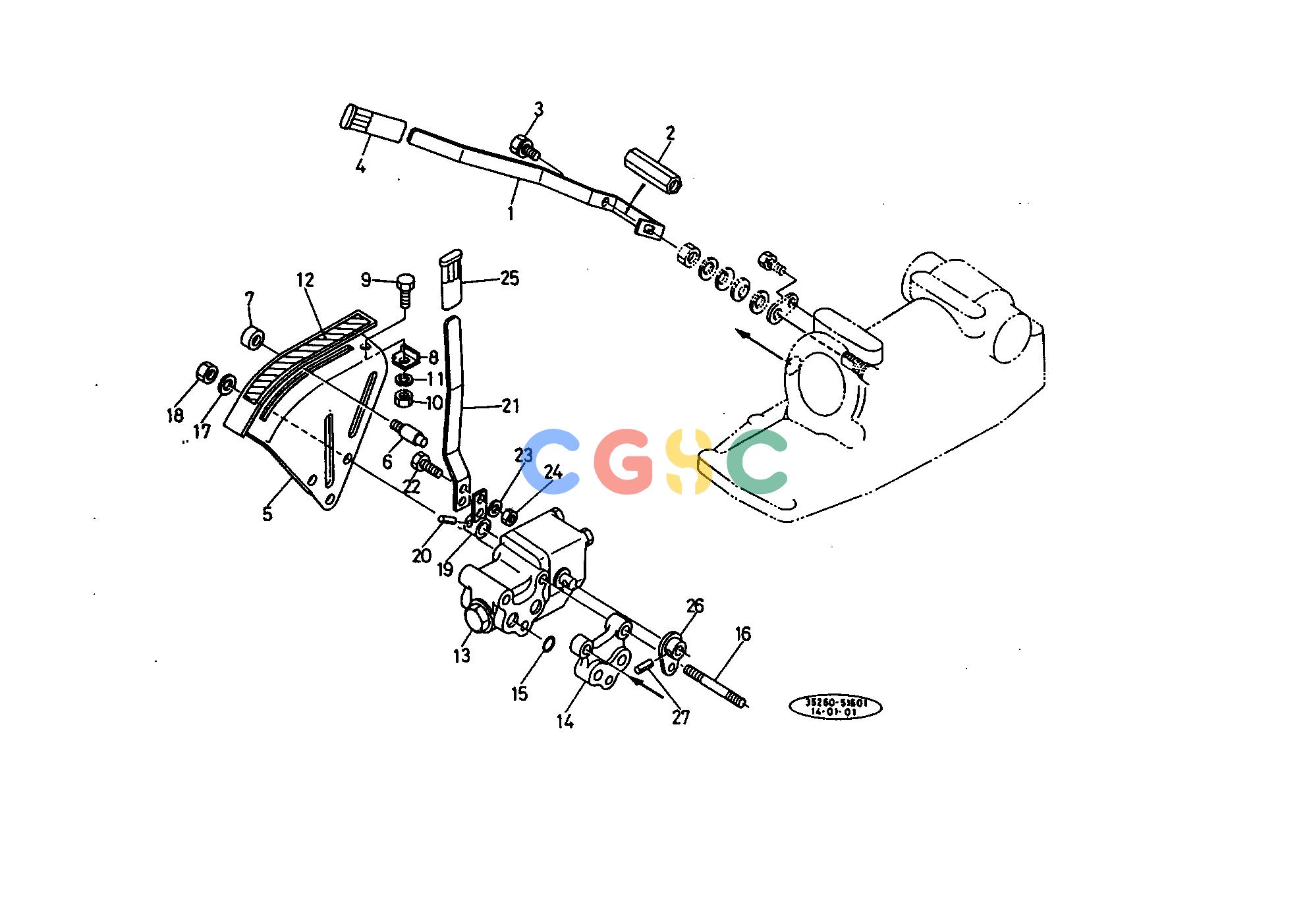

久保田零件查询100000 DRAFT CONTROL POSITION AND DRAFT CONTROLEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
836 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3526036850
|
[1] |
LEVER CONTROL
|
0.6930(lbs); 0.315
|
| 002. |
3526036840
|
[1] |
SUPPORT LEVER
|
0.3520(lbs); 0.160
|
| 003. |
0112050814
|
[1] |
BOLT
|
0.0000(lbs); 0.000
|
| 004. |
3435036890
|
[1] |
GRIP LEVER
|
0.0352(lbs); 0.016
|
| 005. |
3511236860
|
[1] |
GUIDE O/P LEVER
|
2.2440(lbs); 1.020
|
| 006. |
3730036910
|
[1] |
STOPPER
|
0.1100(lbs); 0.050
|
| 007. |
3730036920
|
[1] |
NUT
|
0.1012(lbs); 0.046
|
| 008. |
3730036930
|
[1] |
STOPPER
|
0.0440(lbs); 0.020
|
| 009. |
0117051016
|
[1] |
BOLT
|
0.0352(lbs); 0.016
|
| 010. |
0211850100
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 011. |
0451250100
|
[1] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 012. |
3521236980
|
[1] |
LABEL CONTROL
|
0.0110(lbs); 0.005
|
| 013. |
3730041100
|
[1] |
ASSY VALVE DRAFT CON
|
7.0400(lbs); 3.200
|
| 014. |
3730041210
|
[1] |
SPACER
|
0.0000(lbs); 0.000
|
| 015. |
0481000160
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 016. |
3730041250
|
[3] |
STUD
|
0.0880(lbs); 0.040
|
| 017. |
0451250080
|
[3] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 018. |
0215650080
|
[3] |
NUT
|
0.0088(lbs); 0.004
|
| 019. |
3730041220
|
[1] |
LEVER DRAFT CONTROL
|
0.0924(lbs); 0.042
|
| 020. |
0541100525
|
[1] |
PIN SPRING
|
0.0044(lbs); 0.002
|
| 021. |
3526041230
|
[1] |
LEVER DRAFT CONTROL
|
0.3300(lbs); 0.150
|
| 022. |
0105350616
|
[2] |
BOLT
|
0.0110(lbs); 0.005
|
| 023. |
0451250060
|
[2] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 024. |
0205650060
|
[2] |
NUT
|
0.0044(lbs); 0.002
|
| 025. |
3435036890
|
[1] |
GRIP LEVER
|
0.0352(lbs); 0.016
|
| 026. |
3521241190
|
[1] |
LEVER FEEDBACK
|
0.1144(lbs); 0.052
|
| 027. |
0541100525
|
[1] |
PIN SPRING
|
0.0044(lbs); 0.002
|
