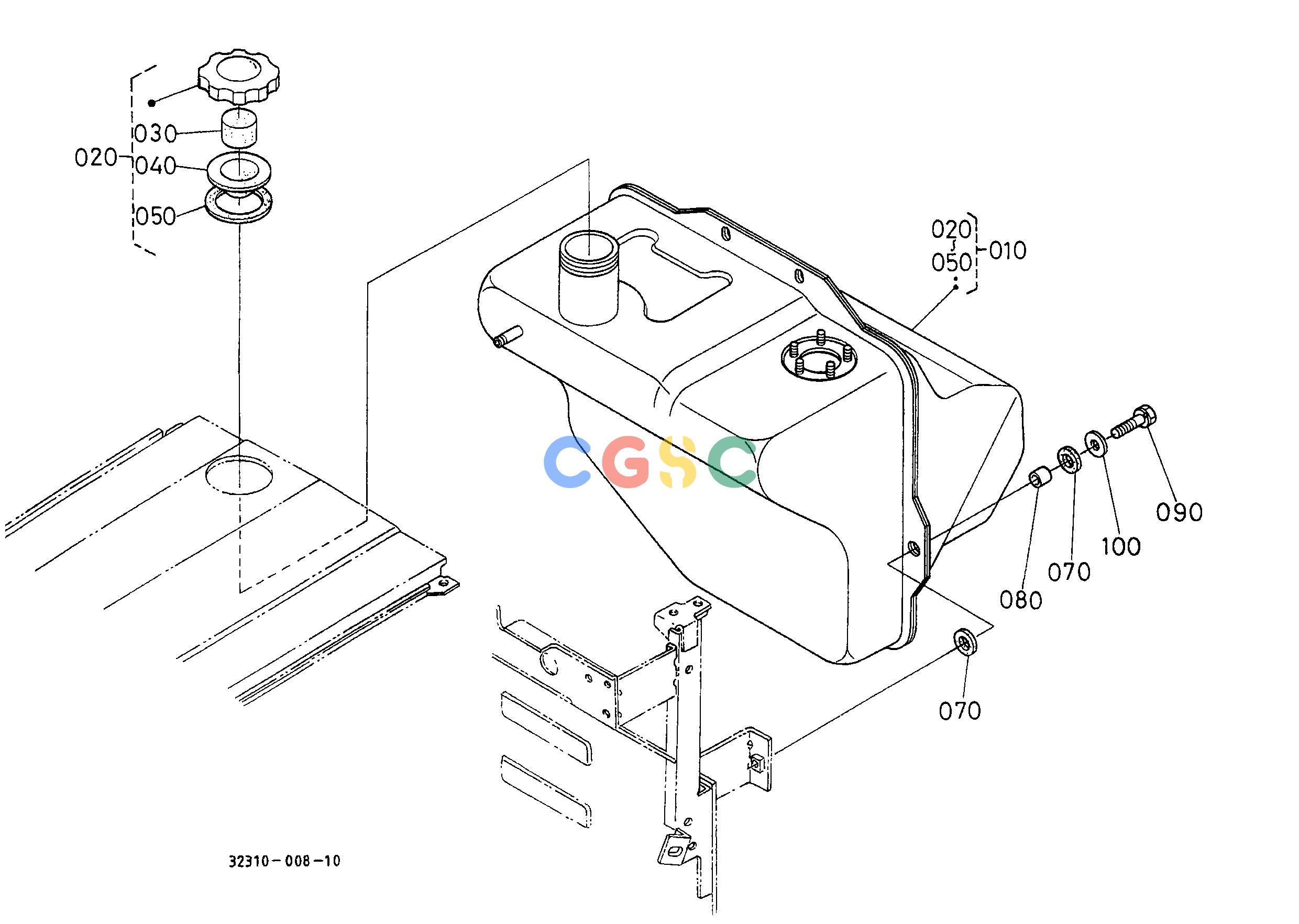

久保田零件查询T02702 FUEL TANK FUEL SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
154 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3501035110
|
[1] |
TANK FUEL
|
11.0000(lbs); 5.000
|
| 010. |
3231735100
|
[1] |
ASSY TANK FUEL
|
11.0000(lbs); 5.000
|
| 020. |
3824035200
|
[1] |
ASSY CAP FUEL TANK
|
0.1430(lbs); 0.065
|
| 030. |
3415035240
|
[1] |
SPONGE
|
0.0022(lbs); 0.001
|
| 040. |
3415035230
|
[1] |
GASKET
|
0.0220(lbs); 0.010
|
| 050. |
3415035180
|
[1] |
GASKET
|
0.0022(lbs); 0.001
|
| 070. |
3730035120
|
[4] |
CUSHION
|
0.0066(lbs); 0.003
|
| 080. |
3730035140
|
[2] |
SPACER
|
0.0132(lbs); 0.006
|
| 090. |
0112350825
|
[2] |
BOLT
|
0.0286(lbs); 0.013
|
| 100. |
0401560080
|
[2] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
