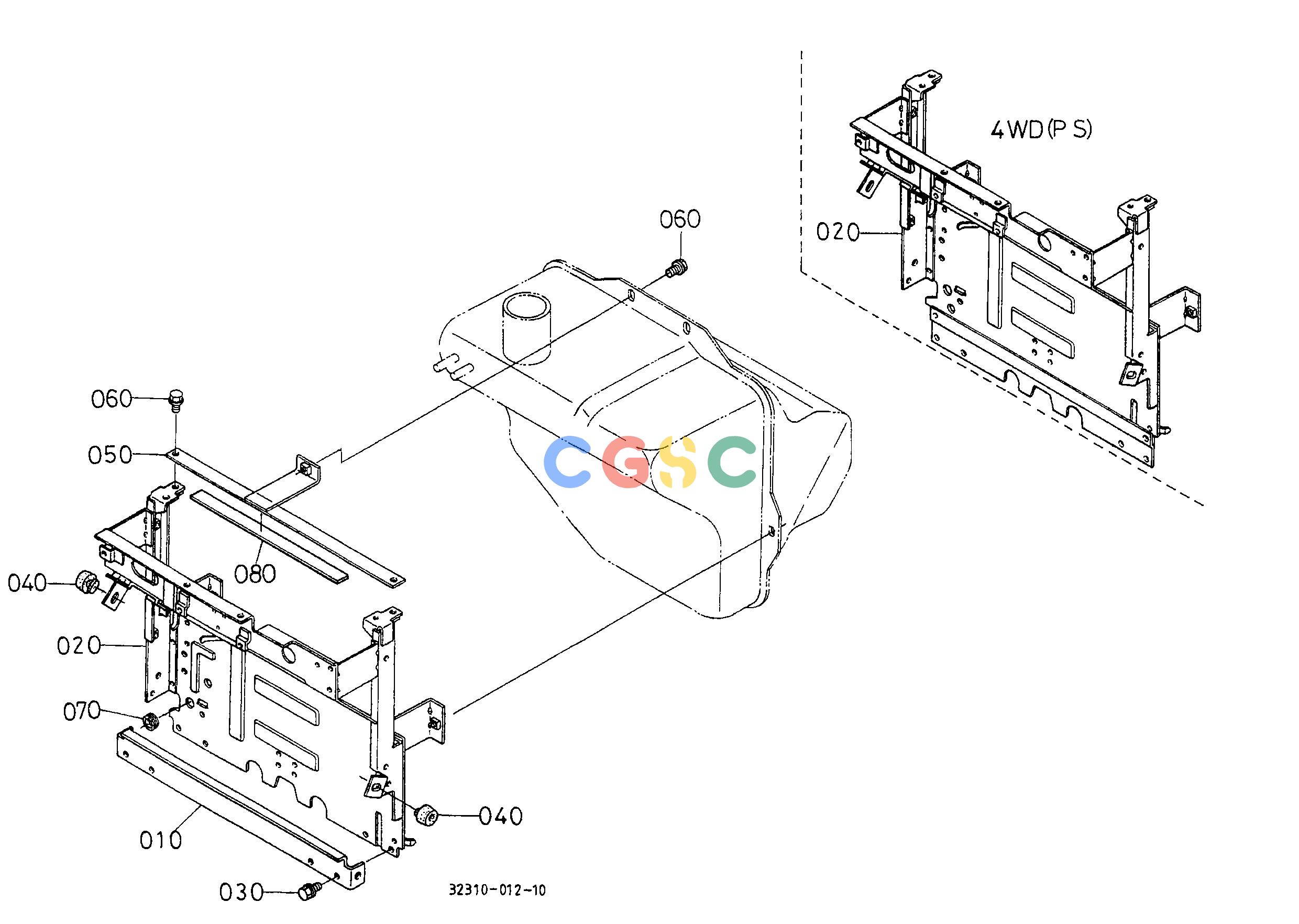

久保田零件查询T03100 SHUTTER COOLING WATER SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
838 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3135135230
|
[1] |
SUPPORT SHUTTER
|
0.7590(lbs); 0.345
|
| 020. |
3231045720
|
[1] |
PLATE SHUTTER
|
7.7000(lbs); 3.500
|
| 020. |
3501035210
|
[1] |
PLATE SHUTTER
|
9.9000(lbs); 4.500
|
| 020. |
3231035210
|
[1] |
PLATE SHUTTER
|
8.5800(lbs); 3.900
|
| 030. |
0175450812
|
[4] |
BOLT FLANGE
|
0.0220(lbs); 0.010
|
| 040. |
3040017980
|
[2] |
RUBBER BLOCK
|
0.0220(lbs); 0.010
|
| 050. |
3240035310
|
[1] |
BAND FUEL TANK
|
0.3740(lbs); 0.170
|
| 050. |
3231035310
|
[1] |
BAND FUEL TANK
|
0.3520(lbs); 0.160
|
| 060. |
0175450812
|
[3] |
BOLT FLANGE
|
0.0220(lbs); 0.010
|
| 070. |
6361152330
|
[1] |
CUSHION
|
0.0220(lbs); 0.010
|
| 080. |
3135113820
|
[1] |
CUSHION BATTERY
|
0.0330(lbs); 0.015
|
