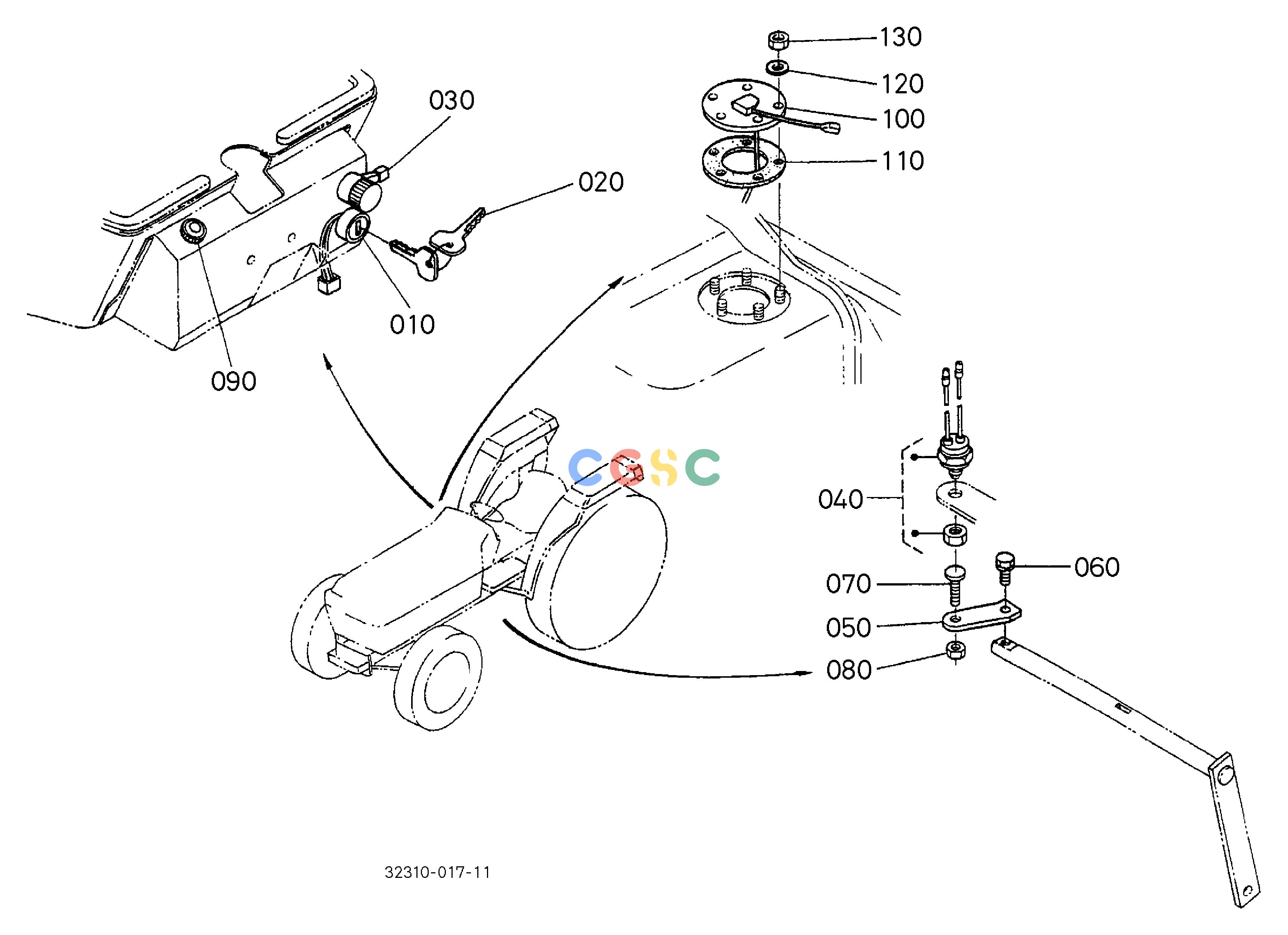

久保田零件查询T03700 SWITCH ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
522 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3243031820
|
[1] |
SWITCH,MAIN
|
0.6270(lbs); 0.285
|
| 020. |
3526031852
|
[1] |
ASSY KEY,MAIN SWITCH
|
0.0440(lbs); 0.020
|
| 030. |
3135132100
|
[1] |
SWITCH,COMBINATION
|
0.2310(lbs); 0.105
|
| 040. |
3715032240
|
[1] |
SWITCH,SAFETY
|
0.2640(lbs); 0.120
|
| 050. |
3715034563
|
[1] |
HOLDER,SWITCH
|
0.0990(lbs); 0.045
|
| 060. |
0112350820
|
[1] |
BOLT,SEMS
|
0.0242(lbs); 0.011
|
| 070. |
0195250830
|
[1] |
BOLT,WELD
|
0.0308(lbs); 0.014
|
| 080. |
0211250080
|
[1] |
HEX.NUT
|
0.0066(lbs); 0.003
|
| 090. |
1552165950
|
[1] |
INDICATOR,GLOW PLUG
|
0.1430(lbs); 0.065
|
| 100. |
3133131202
|
[1] |
UNIT FUEL
|
0.2860(lbs); 0.130
|
| 110. |
3633075310
|
[1] |
GASKET
|
0.0110(lbs); 0.005
|
| 120. |
0401360050
|
[5] |
WASHER,PLAIN
|
0.0022(lbs); 0.001
|
| 130. |
0205450050
|
[5] |
HEX.NUT
|
0.0044(lbs); 0.002
|
