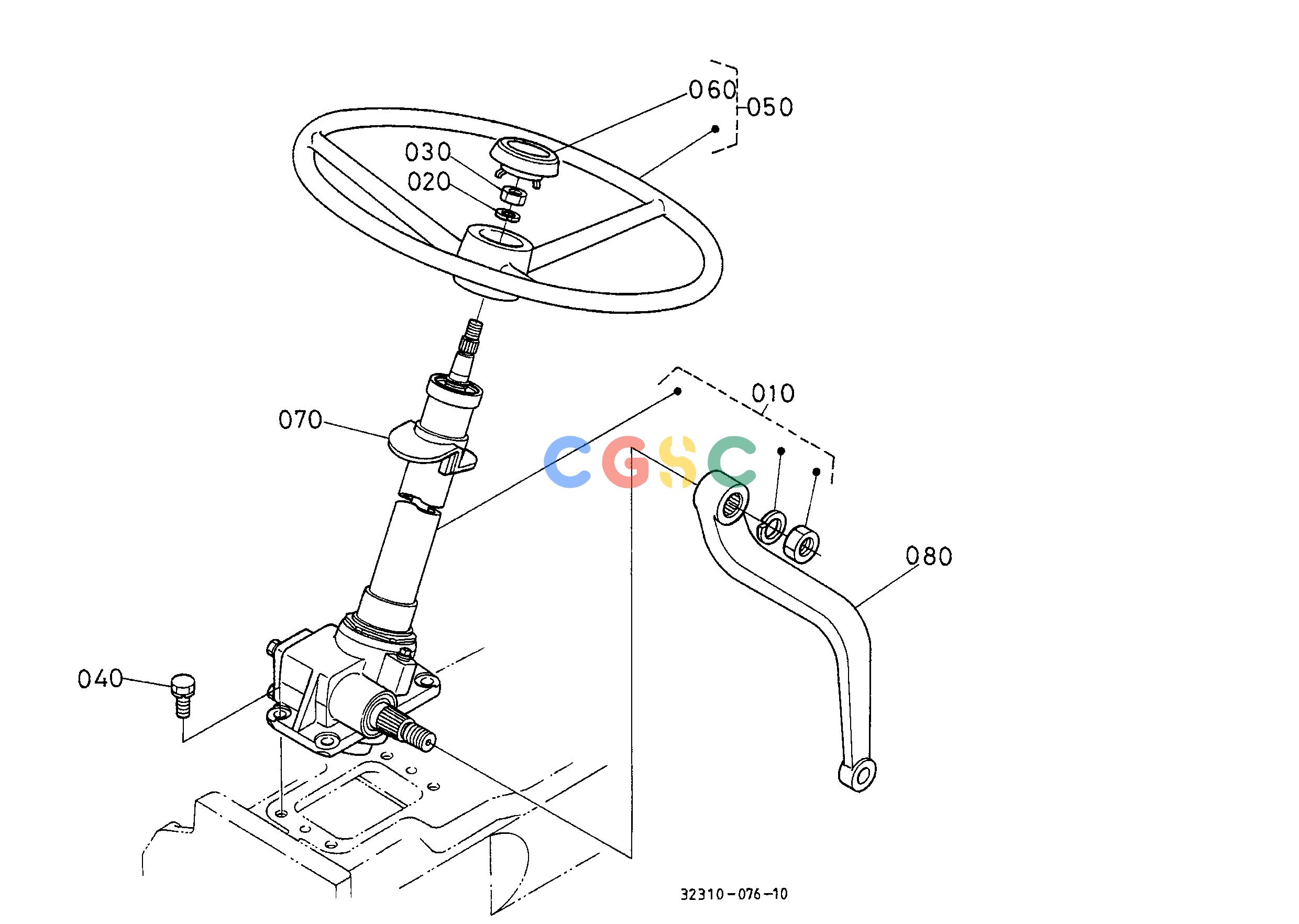

久保田零件查询T08101 MANUAL STEERING AND HANDLE (MS) STEERINGEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
693 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3240016100
|
[1] |
ASSY STEERING
|
15.4000(lbs); 7.000
|
| 020. |
0451250120
|
[1] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 030. |
0217650120
|
[1] |
NUT
|
0.0220(lbs); 0.010
|
| 040. |
0113351025
|
[4] |
BOLT
|
0.0506(lbs); 0.023
|
| 050. |
3240016800
|
[1] |
ASSY WHEEL STEERING
|
4.3120(lbs); 1.960
|
| 060. |
3240016820
|
[1] |
PAD STEERING
|
0.1100(lbs); 0.050
|
| 070. |
3240016850
|
[1] |
COVER POST
|
0.0660(lbs); 0.030
|
| 080. |
3526043930
|
[1] |
ARM PITMAN
|
2.6180(lbs); 1.190
|
