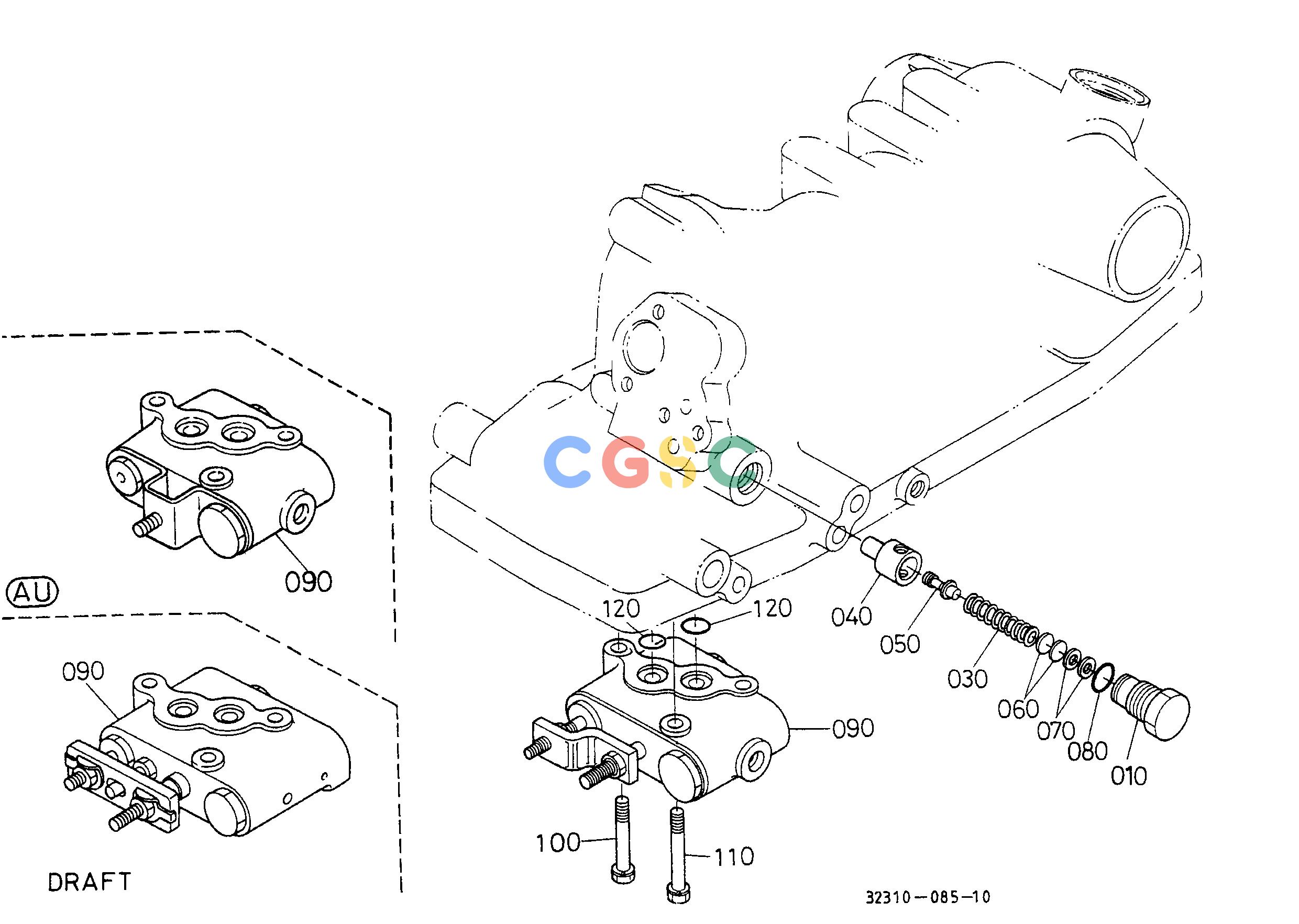

久保田零件查询T08700 CONTROL VALVE HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
821 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3135137910
|
[1] |
PLUG
|
0.1210(lbs); 0.055
|
| 030. |
3135137920
|
[1] |
SPRING RELIEF
|
0.0440(lbs); 0.020
|
| 040. |
3135137930
|
[1] |
SEAT RELIEF VALVE
|
0.0352(lbs); 0.016
|
| 050. |
3135137940
|
[1] |
POPPET
|
0.0110(lbs); 0.005
|
| 060. |
3135137950
|
[5] |
SHIM
|
0.0022(lbs); 0.001
|
| 060. |
3135137960
|
[2] |
SHIM
|
0.0022(lbs); 0.001
|
| 060. |
3135137970
|
[2] |
SHIM
|
0.0022(lbs); 0.001
|
| 070. |
0401350050
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 080. |
0481110160
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 090. |
3139139000
|
[1] |
ASSY VALVE CONTROL
|
3.6300(lbs); 1.650
|
| 090. |
3243039100
|
[1] |
ASSY VALVE CONTROL
|
3.5860(lbs); 1.630
|
| 090. |
3135139600
|
[1] |
VALVE CONTROL
|
4.2900(lbs); 1.950
|
| 100. |
0112350845
|
[1] |
BOLT
|
0.0440(lbs); 0.020
|
| 110. |
0112350850
|
[2] |
BOLT
|
0.0440(lbs); 0.020
|
| 120. |
0481000120
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
