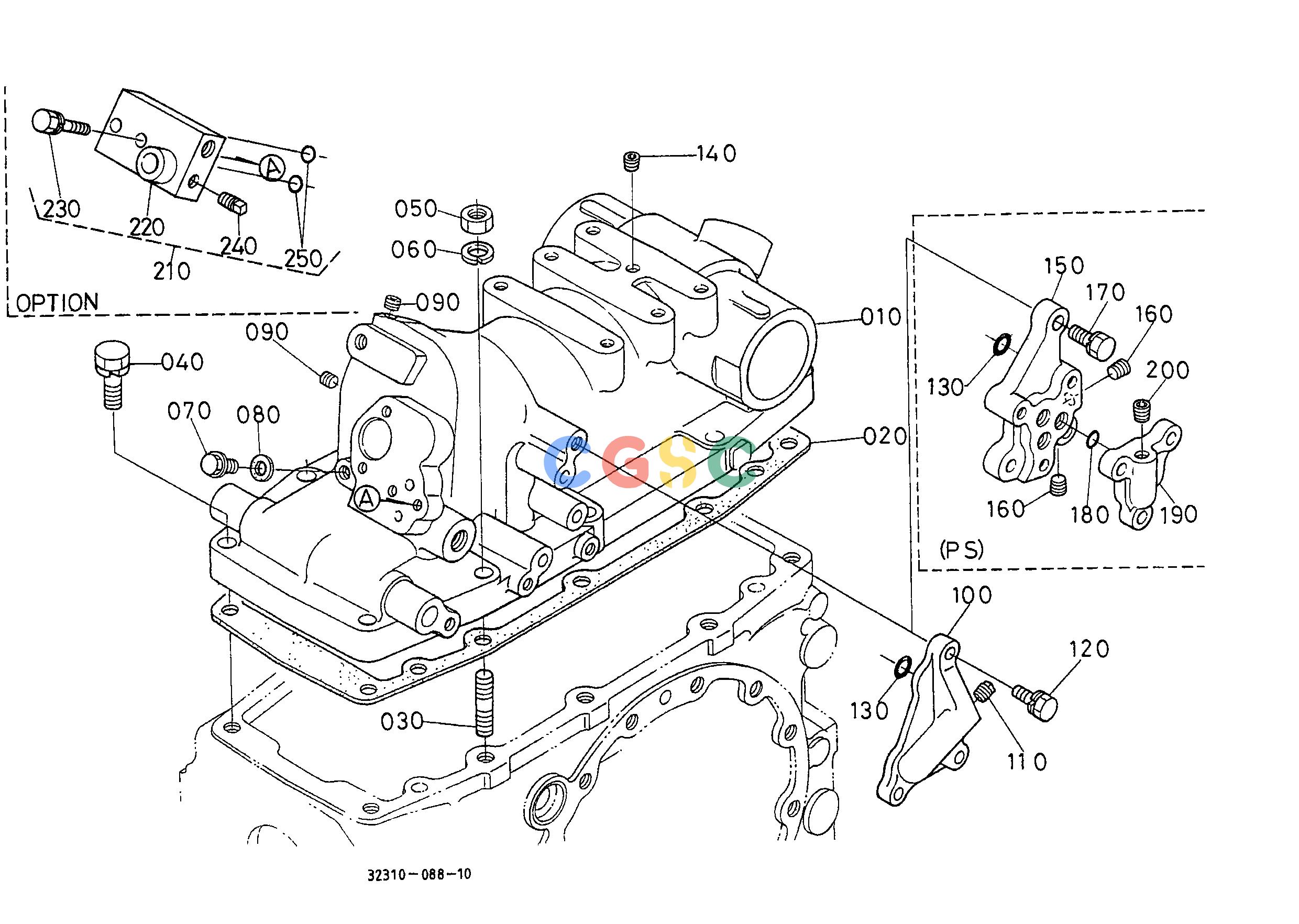

久保田零件查询T09100 HYDRAULIC CYLUNDER HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
742 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3241237112
|
[1] |
CASE HYD.CYLINDER
|
44.0000(lbs); 20.000
|
| 020. |
3242537120
|
[1] |
GASKET
|
0.0550(lbs); 0.025
|
| 030. |
0157451245
|
[2] |
STUD
|
0.1122(lbs); 0.051
|
| 040. |
0113351245
|
[8] |
BOLT
|
0.1210(lbs); 0.055
|
| 050. |
0217650120
|
[2] |
NUT
|
0.0220(lbs); 0.010
|
| 060. |
0451250120
|
[4] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 070. |
3715036730
|
[1] |
PLUG
|
0.0660(lbs); 0.030
|
| 080. |
3715036720
|
[1] |
GASKET
|
0.0044(lbs); 0.002
|
| 090. |
3135137160
|
[2] |
PLUG
|
0.0066(lbs); 0.003
|
| 100. |
3135137280
|
[1] |
COVER CYL.LH
|
0.2640(lbs); 0.120
|
| 110. |
0631210010
|
[1] |
PLUG
|
0.0154(lbs); 0.007
|
| 120. |
0112350825
|
[3] |
BOLT
|
0.0286(lbs); 0.013
|
| 130. |
0481000100
|
[3] |
O RING
|
0.0022(lbs); 0.001
|
| 140. |
3135137160
|
[1] |
PLUG
|
0.0066(lbs); 0.003
|
| 150. |
3501036610
|
[1] |
SPACER VALVE
|
1.7710(lbs); 0.805
|
| 160. |
3135137160
|
[2] |
PLUG
|
0.0066(lbs); 0.003
|
| 170. |
0112350830
|
[3] |
BOLT
|
0.0330(lbs); 0.015
|
| 180. |
0481000100
|
[3] |
O RING
|
0.0022(lbs); 0.001
|
| 190. |
3501036620
|
[1] |
COVER
|
0.5500(lbs); 0.250
|
| 200. |
3135137160
|
[1] |
PLUG
|
0.0066(lbs); 0.003
|
| 210. |
3240099810
|
[1] |
ASSY OUTLET HYD.
|
1.3420(lbs); 0.610
|
| 220. |
7076062690
|
[1] |
BLOCK HYD.OUTLET
|
1.1880(lbs); 0.540
|
| 230. |
0112350860
|
[2] |
BOLT
|
0.0440(lbs); 0.020
|
| 240. |
3135137160
|
[1] |
PLUG
|
0.0066(lbs); 0.003
|
| 250. |
0481000100
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
