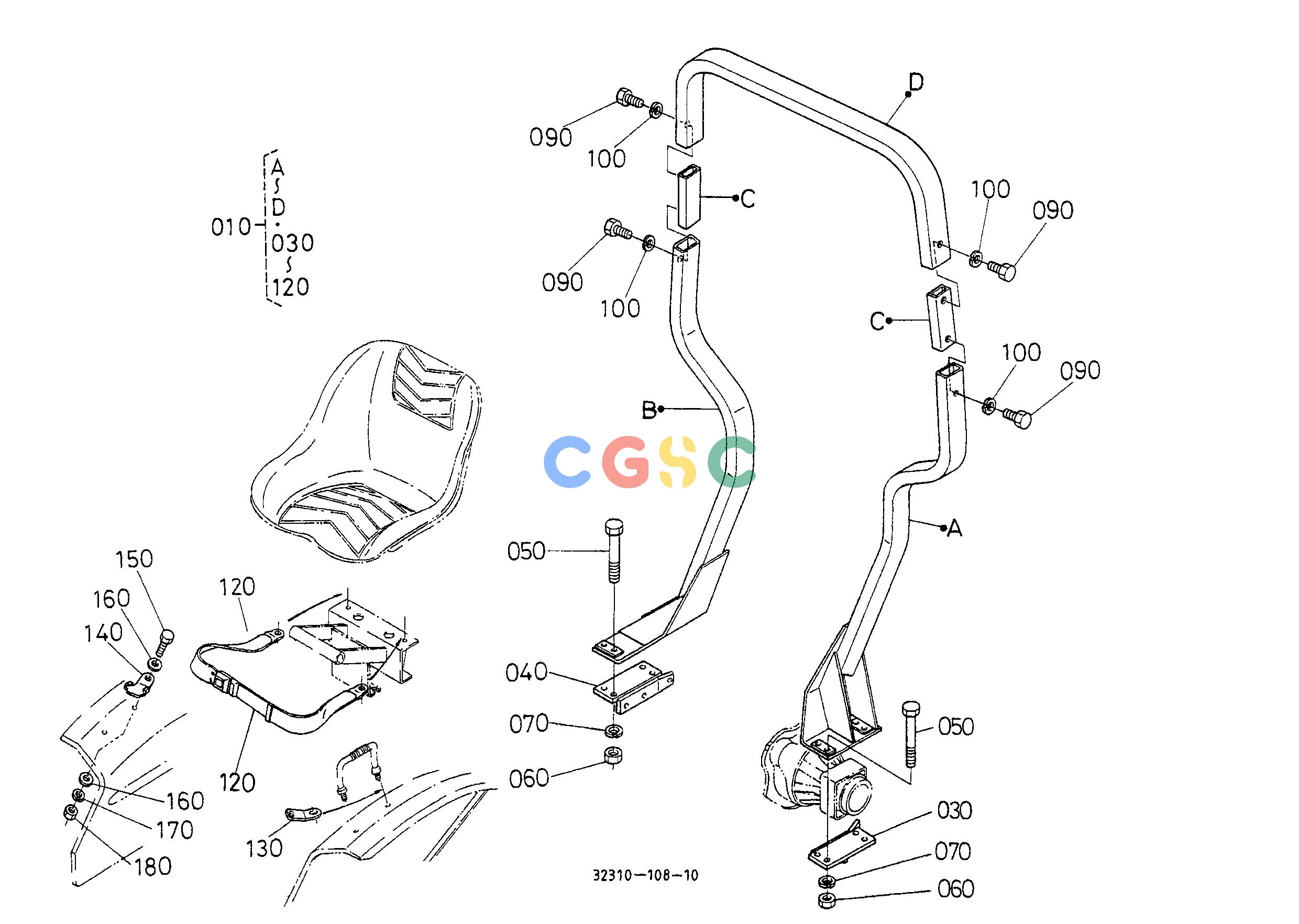

久保田零件查询T10901 ROPS [OLD TYPE] ## S.No.:L2350F;<=19999,L2350DT;<=59999 ROPSEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
451 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3231048010
|
[1] |
ASSY ROPS
|
0.0000(lbs); 0.000
|
| 030. |
3240034730
|
[1] |
BRACKET CHAIN LH
|
5.0380(lbs); 2.290
|
| 040. |
3240034740
|
[1] |
BRACKET CHAIN RH
|
5.1700(lbs); 2.350
|
| 050. |
3243034740
|
[8] |
BOLT
|
0.6600(lbs); 0.300
|
| 060. |
3253029040
|
[8] |
NUT
|
0.0660(lbs); 0.030
|
| 070. |
0451260160
|
[8] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
| 090. |
0117351428
|
[4] |
BOLT
|
0.1078(lbs); 0.049
|
| 100. |
0451260140
|
[4] |
WASHER SPRING
|
0.0176(lbs); 0.008
|
| 120. |
6641672190
|
[1] |
ASSY BELT SEAT
|
0.7480(lbs); 0.340
|
| 130. |
6641672200
|
[1] |
HOLDER SEAT BELT
|
0.0616(lbs); 0.028
|
| 140. |
6641672210
|
[1] |
HOLDER SEAT BELT
|
0.0704(lbs); 0.032
|
| 150. |
0117351425
|
[1] |
BOLT
|
0.1166(lbs); 0.053
|
| 160. |
0401360140
|
[2] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 170. |
0451260140
|
[1] |
WASHER SPRING
|
0.0176(lbs); 0.008
|
| 180. |
0217450140
|
[1] |
NUT
|
0.0308(lbs); 0.014
|
