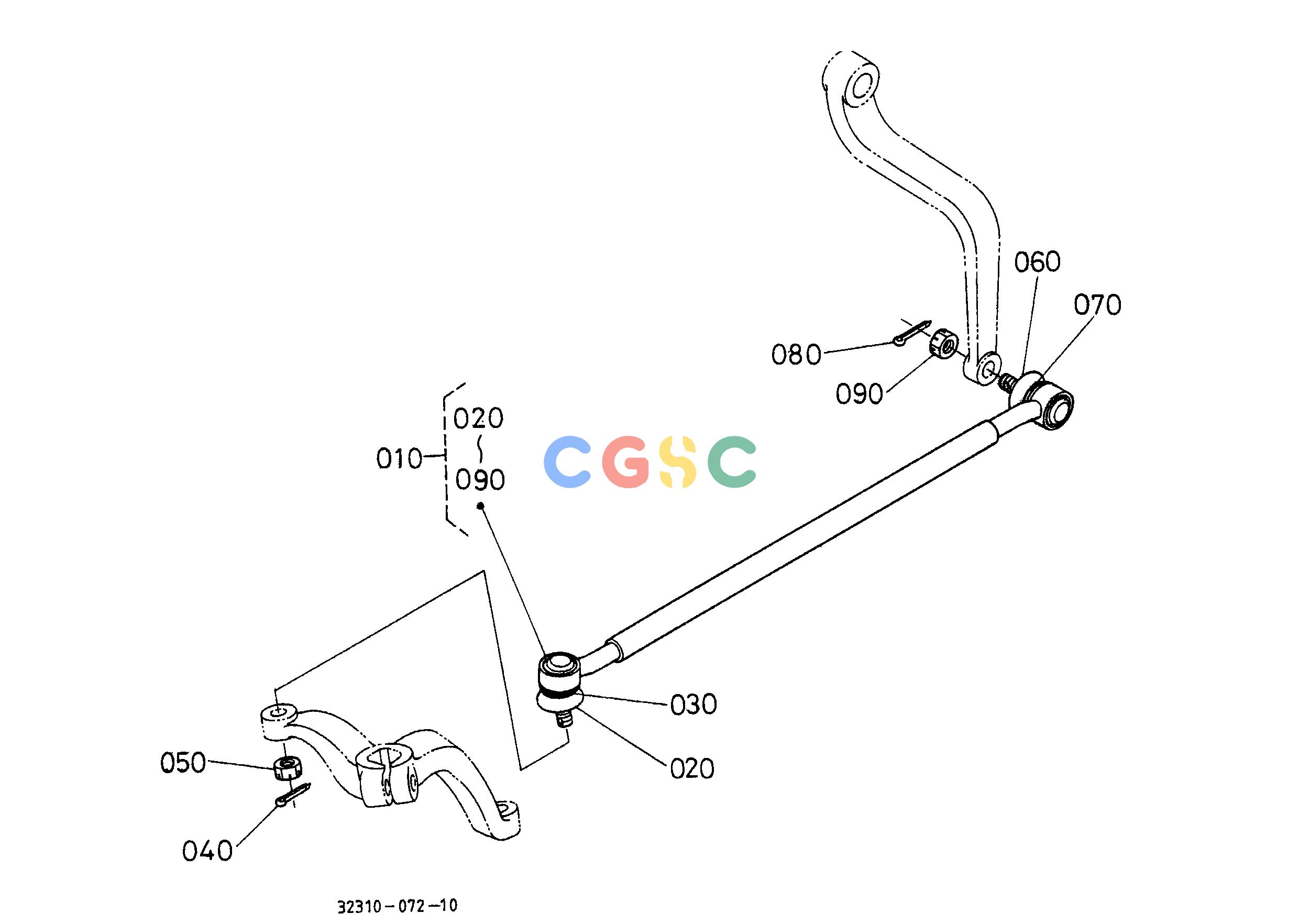

久保田零件查询T07700 STEERING LINKAGE (DRAG LINK) STEERINGEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
628 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3240012200
|
[1] |
ASSY LINK DRAG
|
4.6200(lbs); 2.100
|
| 020. |
3824012650
|
[1] |
COVER DUST
|
0.0220(lbs); 0.010
|
| 030. |
3824012660
|
[1] |
CLIP
|
0.0110(lbs); 0.005
|
| 040. |
0551150325
|
[1] |
PIN SPLIT
|
0.0044(lbs); 0.002
|
| 050. |
3824012830
|
[1] |
NUT
|
0.0176(lbs); 0.008
|
| 060. |
3824012650
|
[1] |
COVER DUST
|
0.0220(lbs); 0.010
|
| 070. |
3824012660
|
[1] |
CLIP
|
0.0110(lbs); 0.005
|
| 080. |
0551150325
|
[1] |
PIN SPLIT
|
0.0044(lbs); 0.002
|
| 090. |
3824012830
|
[1] |
NUT
|
0.0176(lbs); 0.008
|
