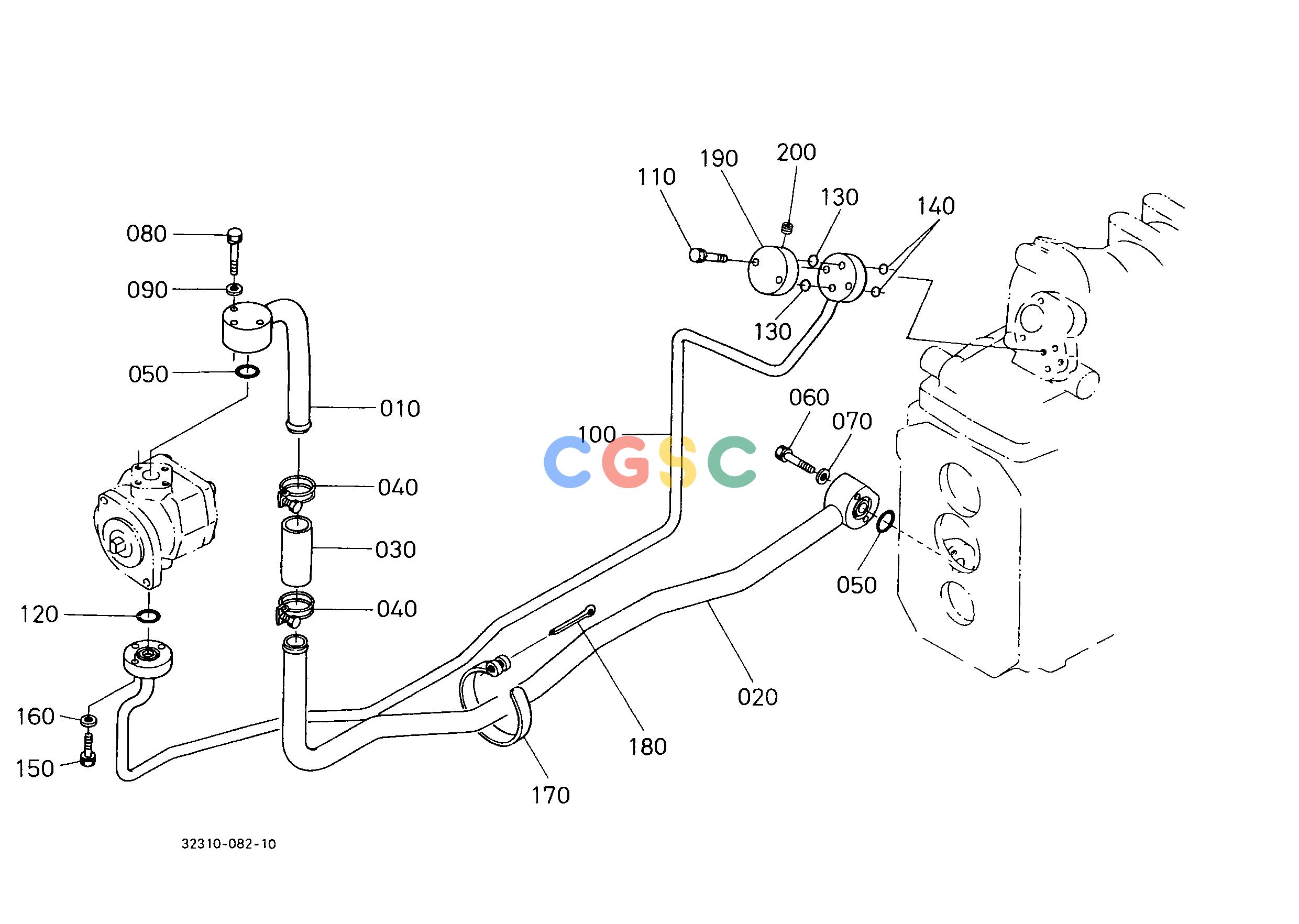

久保田零件查询T08501 HUDRAULIC OIL LINE HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
406 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3240038120
|
[1] |
PIPE INLET
|
0.9020(lbs); 0.410
|
| 020. |
3240038130
|
[1] |
PIPE INLET
|
2.0900(lbs); 0.950
|
| 030. |
3715037770
|
[1] |
PIPE RUBBER
|
0.0770(lbs); 0.035
|
| 040. |
3715037782
|
[2] |
CLAMP
|
0.0528(lbs); 0.024
|
| 050. |
0481100200
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 060. |
0112350850
|
[2] |
BOLT
|
0.0440(lbs); 0.020
|
| 070. |
0401350080
|
[2] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 080. |
0102350645
|
[3] |
BOLT
|
0.0220(lbs); 0.010
|
| 090. |
0401360060
|
[3] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 100. |
3240038210
|
[1] |
COMP.PIPE DELIVERY
|
1.9800(lbs); 0.900
|
| 110. |
0112350850
|
[2] |
BOLT
|
0.0440(lbs); 0.020
|
| 120. |
0481000200
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 130. |
0481000120
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 140. |
0481000100
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 150. |
0102350625
|
[3] |
BOLT
|
0.0154(lbs); 0.007
|
| 160. |
0401360060
|
[3] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 170. |
3715038950
|
[1] |
BAND PIPE
|
0.0440(lbs); 0.020
|
| 180. |
3343082760
|
[1] |
PIN BAND
|
0.0088(lbs); 0.004
|
| 190. |
3135138310
|
[1] |
CAP
|
0.2970(lbs); 0.135
|
| 200. |
0631210010
|
[1] |
PLUG
|
0.0154(lbs); 0.007
|
