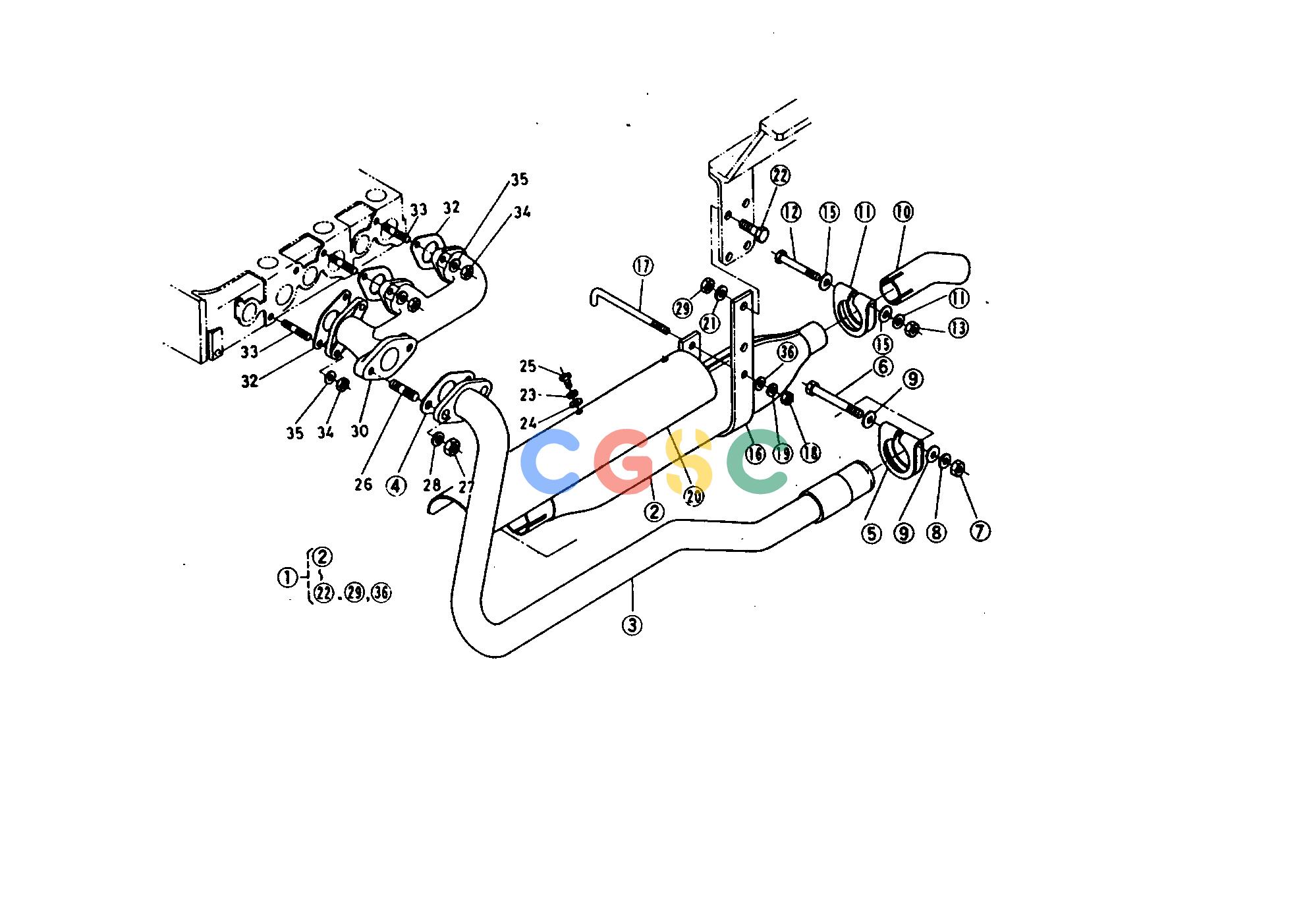

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 001. | 3511062100 | [1] | ASSY MUFFLER | 19.8000(lbs); 9.000 |
| 002. | 3415962190 | [1] | MUFFLER | 5.0380(lbs); 2.290 |
| 003. | 3511062110 | [1] | PIPE MUFFLER 1 | 4.4000(lbs); 2.000 |
| 004. | 1522112370 | [1] | GASKET M-FLANGE | 0.0000(lbs); 0.000 |
| 005. | 1522112130 | [1] | BAND MUFFLER | 0.0000(lbs); 0.000 |
| 006. | 0115350878 | [1] | BOLT | 0.0638(lbs); 0.029 |
| 007. | 0215650080 | [1] | NUT | 0.0088(lbs); 0.004 |
| 008. | 0451250080 | [1] | WASHER SPRING | 0.0044(lbs); 0.002 |
| 009. | 0401250080 | [2] | WASHER PLAIN | 0.0022(lbs); 0.001 |
| 010. | 3511062130 | [1] | PIPE MUFFLER 2 | 0.2420(lbs); 0.110 |
| 011. | 1522112430 | [1] | BAND PIPE | 0.0000(lbs); 0.000 |
| 012. | 0115350865 | [1] | BOLT | 0.0550(lbs); 0.025 |
| 013. | 0205350080 | [1] | NUT | ; <=10005 0.0000(lbs); 0.000 |
| 013. | 0215650080 | [1] | NUT | ; =>50001 0.0088(lbs); 0.004 |
| 014. | 0451250080 | [1] | WASHER SPRING | 0.0044(lbs); 0.002 |
| 015. | 0401250080 | [2] | WASHER PLAIN | 0.0022(lbs); 0.001 |
| 016. | 3511062160 | [1] | SUPPORT MUFFLER | ; <=10005 0.0000(lbs); 0.000 |
| 016. | 3511062164 | [1] | SUPPORT MUFFLER | ; =>50001 0.0000(lbs); 0.000 |
| 017. | 3511062170 | [1] | BOLT MUFFLER | 0.1100(lbs); 0.050 |
| 018. | 0205450080 | [1] | NUT | 0.0110(lbs); 0.005 |
| 019. | 0451250080 | [1] | WASHER SPRING | 0.0044(lbs); 0.002 |
| 020. | 3415962150 | [1] | COVER MUFFLER | 1.0340(lbs); 0.470 |
| 021. | 0451250100 | [2] | WASHER SPRING | 0.0066(lbs); 0.003 |
| 022. | 0117351022 | [2] | BOLT | 0.0418(lbs); 0.019 |
| 023. | 0451250080 | [2] | WASHER SPRING | 0.0044(lbs); 0.002 |
| 024. | 0401250080 | [2] | WASHER PLAIN | 0.0022(lbs); 0.001 |
| 025. | 0115350812 | [2] | BOLT | 0.0176(lbs); 0.008 |
| 026. | 0151751025 | [2] | STUD | 0.0440(lbs); 0.020 |
| 027. | 1502112260 | [2] | NUT | 0.0330(lbs); 0.015 |
| 028. | 0451250100 | [2] | WASHER SPRING | 0.0066(lbs); 0.003 |
| 029. | 0217650100 | [2] | NUT | 0.0110(lbs); 0.005 |
| 030. | 1532112310 | [1] | MANIFOLD EXHAUST | 3.2120(lbs); 1.460 |
| 031. | 1522112360 | [1] | GASKET EX-MANIFOLD | ; <=14147 0.0000(lbs); 0.000 |
| 032. | 1522112350 | [2] | GASKET EX-MANIFOLD | 0.0000(lbs); 0.000 |
| 032. | 1552112350 | [3] | GASKET EX-MANIFOLD | ; =>1001 0.0000(lbs); 0.000 |
| 033. | 1522191530 | [6] | STUD | 0.0220(lbs); 0.010 |
| 034. | 0205650080 | [6] | NUT | 0.0110(lbs); 0.005 |
| 034. | 0215650080 | [6] | NUT | ; =>1001 0.0088(lbs); 0.004 |
| 035. | 0451250080 | [6] | WASHER SPRING | 0.0044(lbs); 0.002 |
| 036. | 0401350080 | [1] | WASHER PLAIN | FP TP DTP; =>50001 0.0066(lbs); 0.003 |
