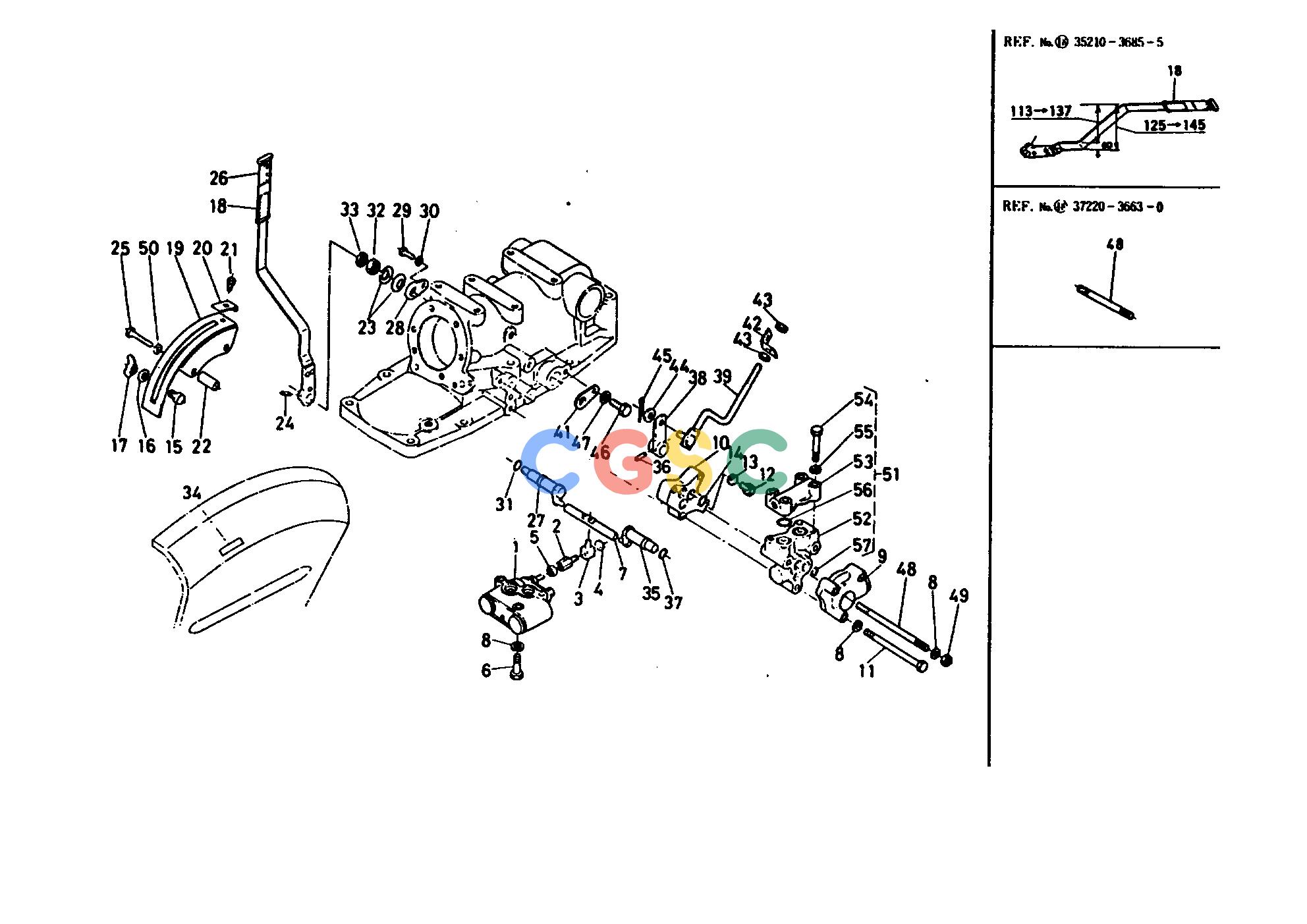

久保田零件查询053000 OIL PRESSURE 2 HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
970 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3715036400
|
[1] |
VALVE CONTROL
|
3.6850(lbs); 1.675
|
| 002. |
3715036410
|
[1] |
JOINT SPOOL 1
|
0.0550(lbs); 0.025
|
| 003. |
3715036420
|
[1] |
JOINT SPOOL 2
|
0.0440(lbs); 0.020
|
| 004. |
0461300060
|
[1] |
CIR-CLIP EXTERNAL
|
0.0000(lbs); 0.000
|
| 005. |
0211250080
|
[1] |
NUT
|
0.0066(lbs); 0.003
|
| 006. |
0115350850
|
[3] |
BOLT
|
0.0440(lbs); 0.020
|
| 007. |
3715036430
|
[1] |
LEVER SPOOL DRIVE
|
0.1980(lbs); 0.090
|
| 008. |
0451250080
|
[6] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 009. |
3715036600
|
[1] |
ASSY VALVE RELIEF
|
1.9030(lbs); 0.865
|
| 010. |
3715036610
|
[1] |
SPACER VALVE
|
0.3080(lbs); 0.140
|
| 011. |
0115350865
|
[2] |
BOLT
|
0.0550(lbs); 0.025
|
| 011. |
3530036810
|
[2] |
BOLT
|
0.1056(lbs); 0.048
|
| 012. |
0633135010
|
[1] |
PLUG
|
0.0264(lbs); 0.012
|
| 013. |
0471701000
|
[1] |
WASHER SEAL
|
0.0022(lbs); 0.001
|
| 014. |
0481000140
|
[6] |
O RING
|
0.0022(lbs); 0.001
|
| 015. |
3236036870
|
[1] |
STOPPER LEVER
|
0.0858(lbs); 0.039
|
| 016. |
0401350100
|
[1] |
WASHER PLAIN
|
0.0088(lbs); 0.004
|
| 017. |
0287050100
|
[1] |
NUT WING
|
0.0330(lbs); 0.015
|
| 018. |
3521036850
|
[1] |
LEVER CONTROL
|
0.3520(lbs); 0.160
|
| 018. |
3521036854
|
[1] |
LEVER CONTROL
|
0.0000(lbs); 0.000
|
| 019. |
3715036860
|
[1] |
GUIDE LEVER
|
0.6270(lbs); 0.285
|
| 020. |
3715036910
|
[1] |
STOPPER
|
0.0440(lbs); 0.020
|
| 021. |
0112050814
|
[1] |
BOLT
|
0.0000(lbs); 0.000
|
| 022. |
3715036870
|
[2] |
COLLAR
|
0.0440(lbs); 0.020
|
| 023. |
3426036880
|
[2] |
SPRING
|
0.0132(lbs); 0.006
|
| 024. |
0541100525
|
[1] |
PIN SPRING
|
0.0044(lbs); 0.002
|
| 025. |
0115050845
|
[2] |
BOLT
|
0.0418(lbs); 0.019
|
| 026. |
3715036890
|
[1] |
GRIP LEVER
|
0.0770(lbs); 0.035
|
| 027. |
3511037650
|
[1] |
ARM CONTROL
|
0.0220(lbs); 0.010
|
| 028. |
3511036890
|
[1] |
PLATE SET RH
|
0.0132(lbs); 0.006
|
| 029. |
0115350816
|
[1] |
BOLT
|
0.0220(lbs); 0.010
|
| 030. |
0451250080
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 031. |
0481100110
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 032. |
0217450140
|
[1] |
NUT
|
0.0308(lbs); 0.014
|
| 033. |
0217250140
|
[1] |
NUT
|
0.0220(lbs); 0.010
|
| 034. |
3511036810
|
[1] |
MARK CONTROL
|
0.0000(lbs); 0.000
|
| 034. |
3517636980
|
[1] |
MARK CONTROL
|
0.0022(lbs); 0.001
|
| 035. |
3715037670
|
[1] |
SHAFT LEVER
|
0.1870(lbs); 0.085
|
| 036. |
0541100420
|
[1] |
PIN SPRING
|
0.0022(lbs); 0.001
|
| 037. |
0481100110
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 038. |
3715037680
|
[1] |
LEVER
|
0.1100(lbs); 0.050
|
| 039. |
3722037690
|
[1] |
ROD 1
|
0.1210(lbs); 0.055
|
| 041. |
3426036890
|
[1] |
PLATE SET
|
0.0198(lbs); 0.009
|
| 042. |
3722037640
|
[1] |
PLATE CONTROL
|
0.0550(lbs); 0.025
|
| 043. |
0211450080
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
| 044. |
0401350080
|
[2] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 045. |
0551150215
|
[2] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 046. |
0115350816
|
[1] |
BOLT
|
0.0220(lbs); 0.010
|
| 047. |
0451250080
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 048. |
3722036630
|
[1] |
STUD
|
0.0550(lbs); 0.025
|
| 048. |
3530036820
|
[1] |
STUD
|
0.1100(lbs); 0.050
|
| 049. |
0211450080
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 050. |
0451250080
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 051. |
3530036700
|
[1] |
ASSY BLOCK OIL PRESS
|
4.4000(lbs); 2.000
|
| 052. |
3530036710
|
[1] |
BLOCK OIL PRESSURE
|
3.5200(lbs); 1.600
|
| 053. |
3530036720
|
[1] |
COVER OIL PRESSURE B
|
0.8470(lbs); 0.385
|
| 054. |
0115350840
|
[4] |
BOLT
|
0.0396(lbs); 0.018
|
| 055. |
0451250080
|
[4] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 056. |
0481000200
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 057. |
0481000120
|
[3] |
O RING
|
0.0022(lbs); 0.001
|
