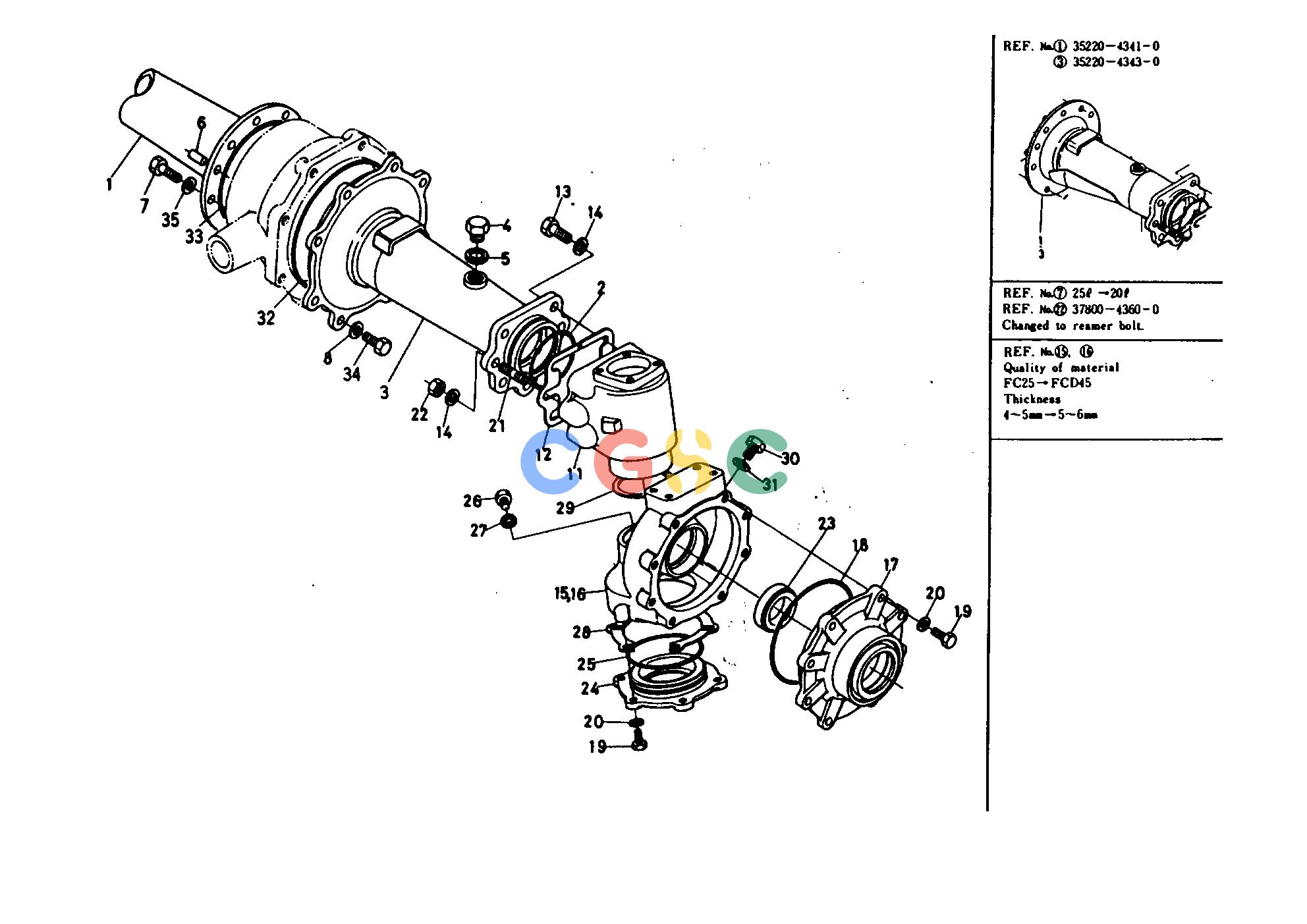

久保田零件查询059000 FRONT AXLE SUPPORT [L245DT] FRONT AXLE AND FRONT WHEELEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
701 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3522043410
|
[1] |
SUPPORT FRONT AXLE R
|
12.3200(lbs); 5.600
|
| 001. |
3525043410
|
[1] |
SUPPORT FRONT AXLE R
|
15.8400(lbs); 7.200
|
| 002. |
0481150750
|
[2] |
O RING
|
0.0044(lbs); 0.002
|
| 003. |
3522043430
|
[1] |
SUPPORT FRONT AXLE L
|
12.1000(lbs); 5.500
|
| 003. |
3525043430
|
[1] |
SUPPORT FRONT AXLE L
|
19.8000(lbs); 9.000
|
| 004. |
0633135020
|
[2] |
PLUG
|
0.1496(lbs); 0.068
|
| 005. |
0471702000
|
[2] |
WASHER SEAL
|
0.0088(lbs); 0.004
|
| 006. |
0501201022
|
[2] |
PIN STRAIGHT
|
0.0308(lbs); 0.014
|
| 007. |
0117351025
|
[8] |
BOLT
|
0.0462(lbs); 0.021
|
| 007. |
0117351028
|
[8] |
BOLT
|
0.0484(lbs); 0.022
|
| 008. |
0451250100
|
[8] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 009. |
0151751022
|
[8] |
STUD
|
0.0440(lbs); 0.020
|
| 010. |
0217650100
|
[8] |
NUT
|
0.0110(lbs); 0.005
|
| 011. |
3522043440
|
[2] |
CASE BEVEL GEAR
|
5.9840(lbs); 2.720
|
| 012. |
3765043560
|
[8] |
SHIM 0.1
|
0.0110(lbs); 0.005
|
| 012. |
3765043450
|
[8] |
SHIM 0.2
|
0.0110(lbs); 0.005
|
| 013. |
0117351230
|
[10] |
BOLT
|
0.0814(lbs); 0.037
|
| 013. |
3525043700
|
[10] |
BOLT
|
0.0990(lbs); 0.045
|
| 014. |
0451250120
|
[14] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 015. |
3772043510
|
[1] |
CASE AXLE LH
|
13.2000(lbs); 6.000
|
| 015. |
3525043510
|
[1] |
CASE AXLE LH
|
12.1000(lbs); 5.500
|
| 016. |
3772043540
|
[1] |
CASE AXLE RH
|
13.8600(lbs); 6.300
|
| 016. |
3525043540
|
[1] |
CASE AXLE RH
|
12.5400(lbs); 5.700
|
| 017. |
3772043520
|
[2] |
FLANGE AXLE
|
5.5000(lbs); 2.500
|
| 017. |
H377043520
|
[2] |
FLANGE AXLE
|
5.5000(lbs); 2.500
|
| 018. |
3772043550
|
[2] |
O RING
|
0.0220(lbs); 0.010
|
| 019. |
0115350822
|
[28] |
BOLT
|
0.0242(lbs); 0.011
|
| 020. |
0451250080
|
[28] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 021. |
3765043500
|
[4] |
STUD
|
0.0990(lbs); 0.045
|
| 022. |
0217650120
|
[4] |
NUT
|
0.0220(lbs); 0.010
|
| 022. |
3780043600
|
[4] |
NUT
|
0.0550(lbs); 0.025
|
| 023. |
3765043530
|
[2] |
SEAL OIL
|
0.1364(lbs); 0.062
|
| 024. |
3765043580
|
[2] |
CASE BEARING
|
1.9360(lbs); 0.880
|
| 025. |
0481150900
|
[2] |
O RING
|
0.0066(lbs); 0.003
|
| 026. |
0633135012
|
[2] |
PLUG
|
0.0528(lbs); 0.024
|
| 027. |
0471701200
|
[2] |
WASHER SEAL
|
0.0044(lbs); 0.002
|
| 028. |
3765043570
|
[8] |
SHIM
|
0.0088(lbs); 0.004
|
| 028. |
3765043590
|
[8] |
SHIM
|
0.0044(lbs); 0.002
|
| 029. |
3765043470
|
[2] |
SEAL DUST
|
0.0044(lbs); 0.002
|
| 030. |
0633135016
|
[2] |
PLUG
|
0.0880(lbs); 0.040
|
| 031. |
0471701600
|
[2] |
WASHER SEAL
|
0.0066(lbs); 0.003
|
| 032. |
3416043440
|
[1] |
O RING
|
0.0110(lbs); 0.005
|
| 033. |
0481151300
|
[1] |
O RING
|
0.0088(lbs); 0.004
|
| 034. |
3525043400
|
[8] |
BOLT
|
0.0550(lbs); 0.025
|
| 035. |
0451250100
|
[8] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
