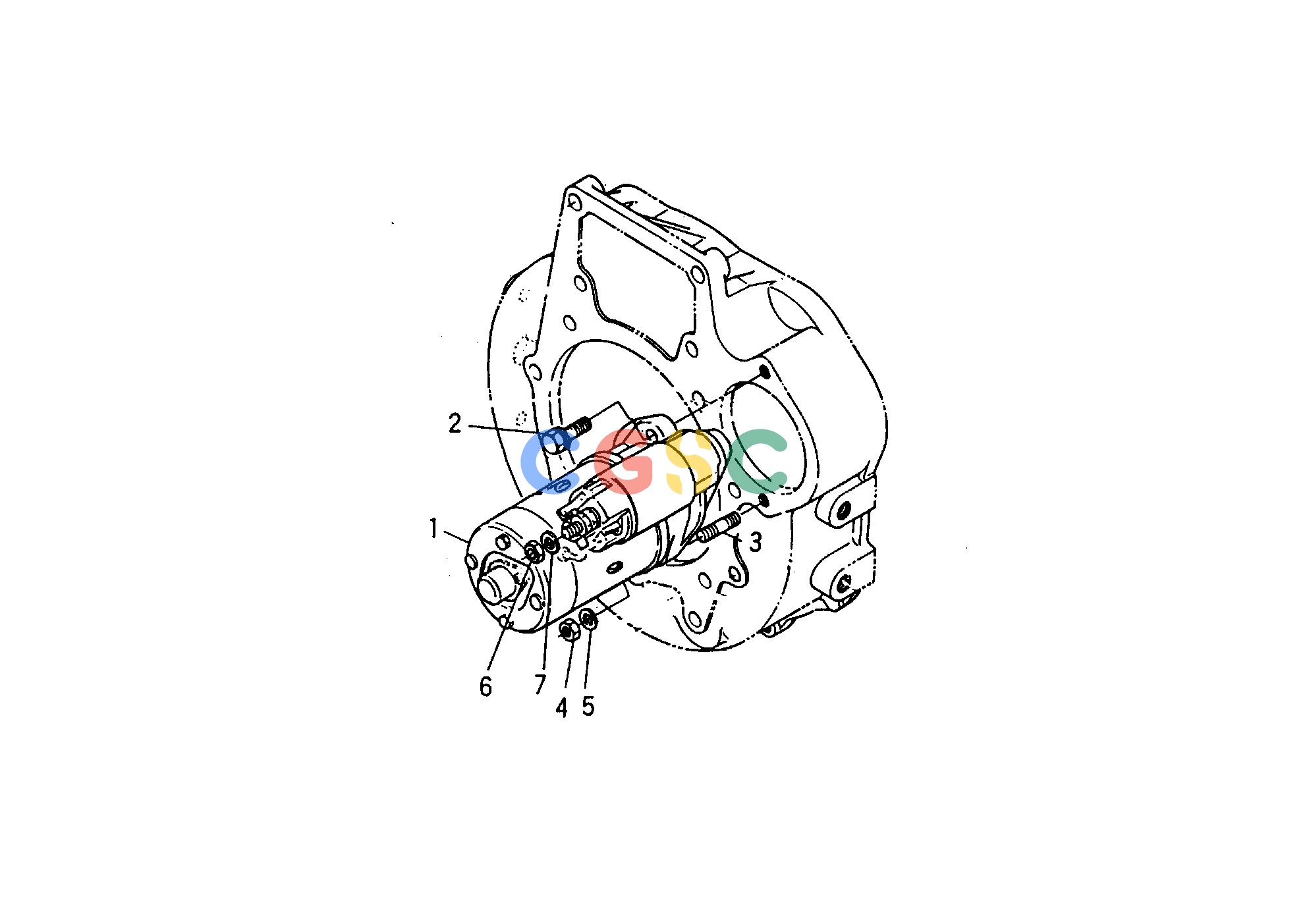

久保田零件查询T02800 STARTER ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
716 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
1532163010
|
[1] |
ASSY STARTER
|
0.0000(lbs); 0.000
|
| 001. |
1550163010
|
[1] |
ASSY STARTER
|
0.0000(lbs); 0.000
|
| 002. |
0113351030
|
[1] |
BOLT
|
0.0550(lbs); 0.025
|
| 003. |
0151751025
|
[1] |
STUD
|
0.0440(lbs); 0.020
|
| 004. |
0217650100
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 005. |
0451250100
|
[1] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 006. |
0211450080
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 007. |
0451250080
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
