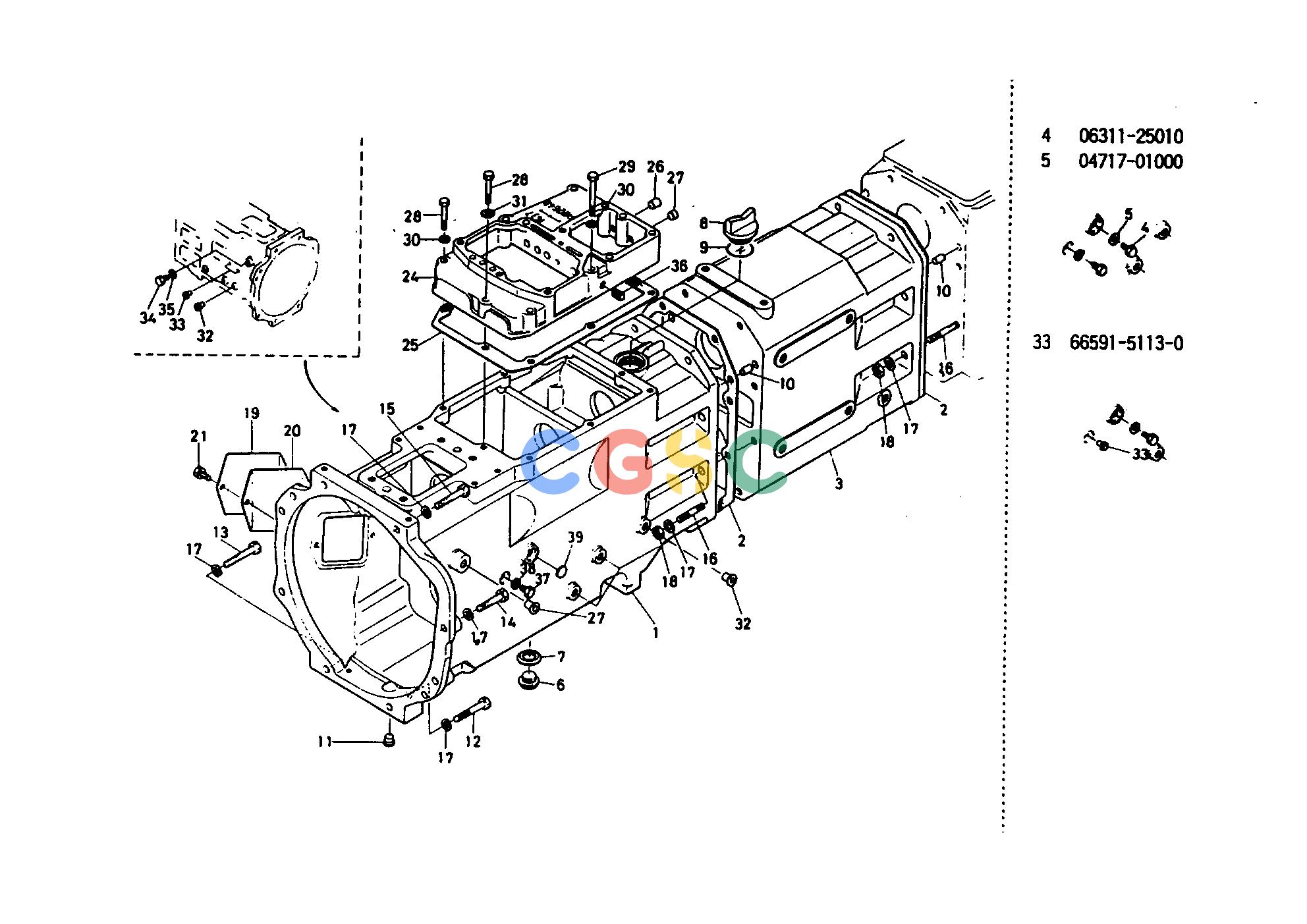

久保田零件查询T03700 CLUTCH HOUSING CLUTCHEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
244 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3715014110
|
[1] |
HOUSING CLUTCH
|
91.3000(lbs); 41.500
|
| 001. |
3715014114
|
[1] |
HOUSING CLUTCH
|
0.0000(lbs); 0.000
|
| 002. |
3415014140
|
[2] |
GASKET
|
0.0000(lbs); 0.000
|
| 003. |
3521914150
|
[1] |
SPACER
|
56.7600(lbs); 25.800
|
| 004. |
0631125010
|
[1] |
PLUG
|
0.0308(lbs); 0.014
|
| 005. |
0471701000
|
[1] |
WASHER WITH RUBBER
|
0.0022(lbs); 0.001
|
| 006. |
3415014260
|
[1] |
PLUG DRAIN
|
0.2200(lbs); 0.100
|
| 007. |
0471702150
|
[1] |
WASHER WITH RUBBER
|
0.0088(lbs); 0.004
|
| 008. |
3224021410
|
[1] |
PLUG
|
0.0110(lbs); 0.005
|
| 008. |
3824021410
|
[1] |
PLUG
|
0.0330(lbs); 0.015
|
| 009. |
0481150300
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 010. |
3715014150
|
[4] |
PIN STRAIGHT
|
0.2750(lbs); 0.125
|
| 010. |
0501201018
|
[4] |
PIN STRAIGHT
|
0.0264(lbs); 0.012
|
| 011. |
3221027580
|
[6] |
PLUG BLIND
|
0.0022(lbs); 0.001
|
| 012. |
0117351070
|
[1] |
BOLT
|
0.0968(lbs); 0.044
|
| 013. |
0117351050
|
[1] |
BOLT
|
0.0770(lbs); 0.035
|
| 014. |
0117351040
|
[4] |
BOLT
|
0.0616(lbs); 0.028
|
| 015. |
0117351042
|
[2] |
BOLT
|
0.0660(lbs); 0.030
|
| 016. |
3715014180
|
[16] |
STUD
|
0.5830(lbs); 0.265
|
| 017. |
0451250100
|
[16] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 018. |
3715014190
|
[16] |
NUT
|
0.0352(lbs); 0.016
|
| 019. |
3415014160
|
[1] |
COVER HOUSING
|
0.3300(lbs); 0.150
|
| 020. |
3415014170
|
[1] |
GASKET HOUSING
|
0.0660(lbs); 0.030
|
| 021. |
0112350816
|
[2] |
BOLT
|
0.0242(lbs); 0.011
|
| 024. |
3715021210
|
[1] |
COVER GEAR SHIFT
|
2.5080(lbs); 1.140
|
| 025. |
3465059140
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 026. |
3415021250
|
[5] |
PLUG
|
0.0044(lbs); 0.002
|
| 027. |
3426921250
|
[1] |
PLUG
|
0.0000(lbs); 0.000
|
| 028. |
0115350840
|
[3] |
BOLT
|
0.0396(lbs); 0.018
|
| 029. |
0115350850
|
[3] |
BOLT
|
0.0440(lbs); 0.020
|
| 030. |
0451250080
|
[5] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 031. |
0471700800
|
[1] |
WASHER WITH RUBBER
|
0.0022(lbs); 0.001
|
| 032. |
3415027580
|
[10] |
PLUG
|
0.0022(lbs); 0.001
|
| 033. |
6659151130
|
[2] |
PLUG BLIND
|
0.0022(lbs); 0.001
|
| 034. |
0633135012
|
[1] |
PLUG
|
0.0528(lbs); 0.024
|
| 035. |
0471701200
|
[1] |
WASHER WITH RUBBER
|
0.0044(lbs); 0.002
|
| 036. |
0631210010
|
[2] |
PLUG
|
0.0154(lbs); 0.007
|
| 037. |
0115050814
|
[1] |
BOLT
|
0.0220(lbs); 0.010
|
| 038. |
0471700800
|
[1] |
WASHER WITH RUBBER
|
0.0022(lbs); 0.001
|
| 039. |
3130114230
|
[1] |
GAUGE OIL
|
0.0110(lbs); 0.005
|
