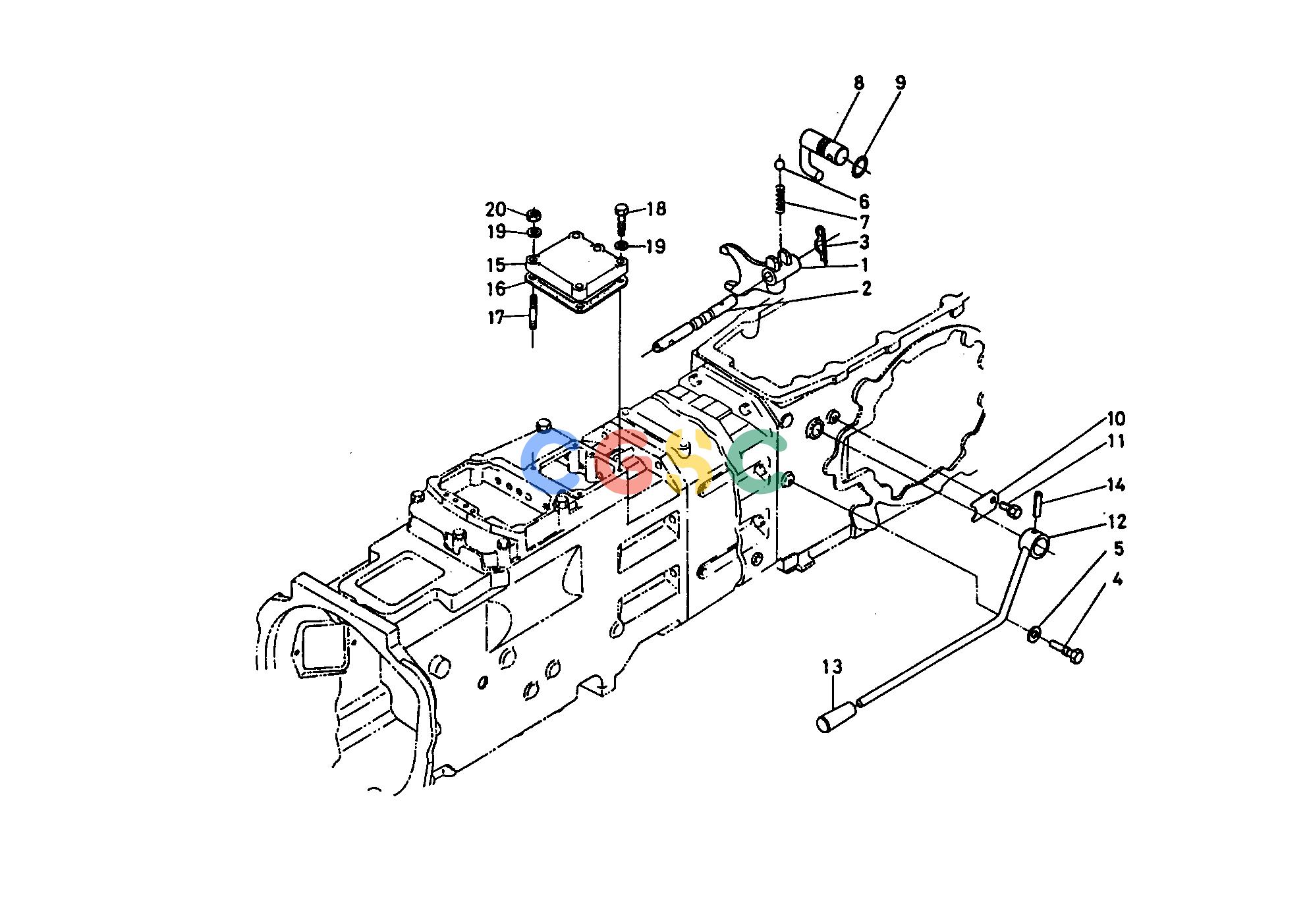

久保田零件查询T04400 HI-LO GEAR SHIFT LEVER SPEED CHANGE LEVEREPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
207 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3530024110
|
[1] |
FORK SHIFT
|
0.4400(lbs); 0.200
|
| 002. |
3715024130
|
[1] |
SHAFT FORK
|
0.2420(lbs); 0.110
|
| 003. |
0551551200
|
[1] |
PIN SNAP
|
0.0066(lbs); 0.003
|
| 004. |
3715023120
|
[1] |
SCREW SET
|
0.0440(lbs); 0.020
|
| 005. |
0471700800
|
[1] |
WASHER WITH RUBBER
|
0.0022(lbs); 0.001
|
| 006. |
0771501605
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
| 007. |
6258118230
|
[1] |
SPRING
|
0.0220(lbs); 0.010
|
| 008. |
3715024310
|
[1] |
LEVER SHIFT
|
0.3190(lbs); 0.145
|
| 009. |
0481100150
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 010. |
3415024350
|
[1] |
STOPPER LEVER
|
0.0220(lbs); 0.010
|
| 011. |
0112350816
|
[1] |
BOLT
|
0.0242(lbs); 0.011
|
| 012. |
3521924430
|
[1] |
LEVER HI-LO SHIFT
|
0.6820(lbs); 0.310
|
| 013. |
0691400120
|
[1] |
GRIP LEVER
|
0.0396(lbs); 0.018
|
| 014. |
0541100632
|
[1] |
PIN SPRING
|
0.0088(lbs); 0.004
|
| 015. |
3511024830
|
[1] |
COVER
|
1.1792(lbs); 0.536
|
| 016. |
3465059330
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 017. |
0151350828
|
[3] |
STUD
|
0.0286(lbs); 0.013
|
| 018. |
0115350870
|
[2] |
BOLT
|
0.0572(lbs); 0.026
|
| 019. |
0451250080
|
[5] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 020. |
0211450080
|
[3] |
NUT
|
0.0110(lbs); 0.005
|
