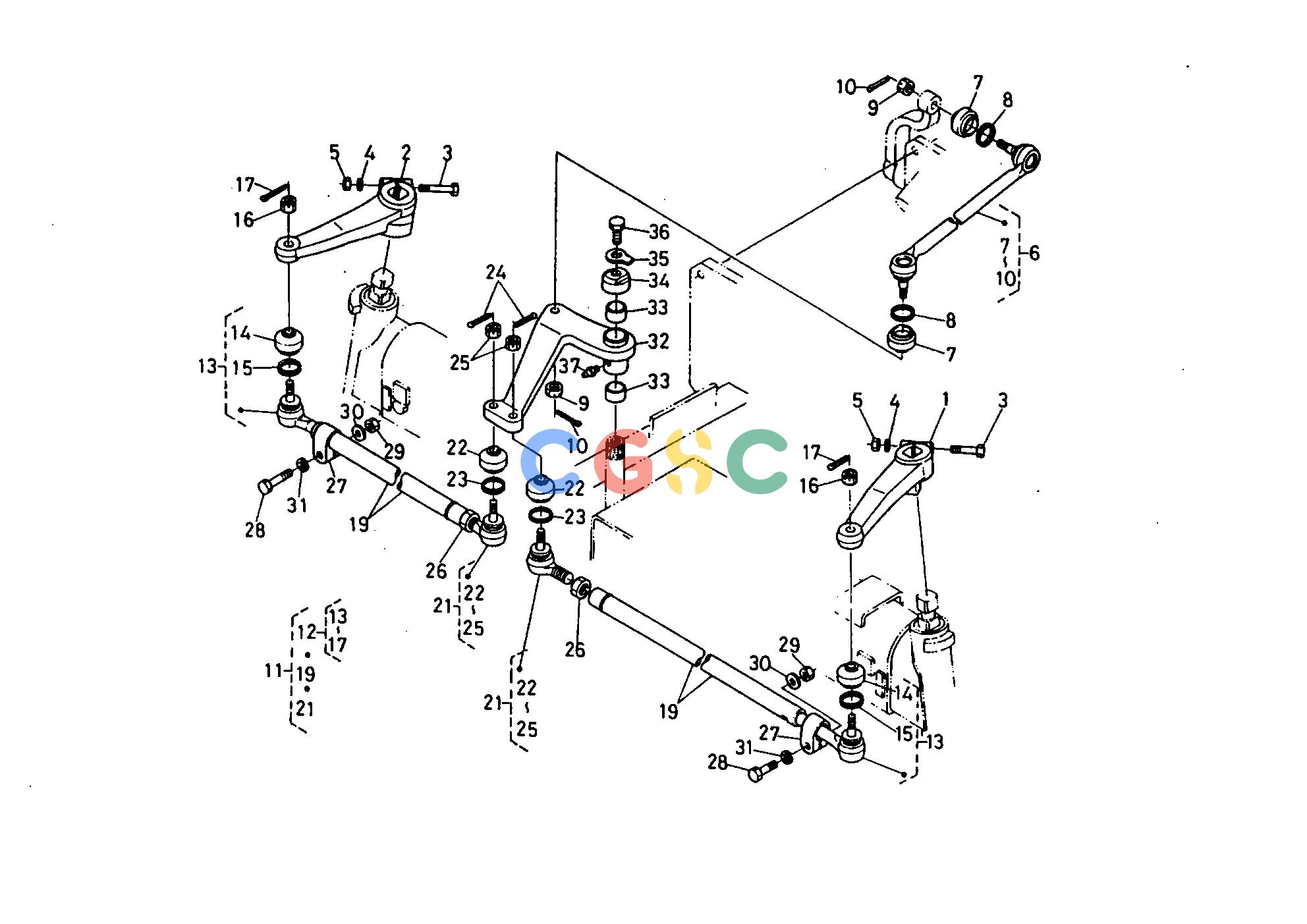

久保田零件查询T05602 STEERING LINKAGE ## S.No.;>=12987 FRONT AXLE AND FRONT WHEELEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
236 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3521911220
|
[1] |
ARM KNUCKLE LH
|
2.9040(lbs); 1.320
|
| 002. |
3521911210
|
[1] |
ARM KNUCKLE RH
|
2.9678(lbs); 1.349
|
| 003. |
3224011270
|
[2] |
BOLT
|
0.1452(lbs); 0.066
|
| 004. |
0451250120
|
[2] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 005. |
0217450120
|
[2] |
NUT
|
0.0220(lbs); 0.010
|
| 006. |
3521912210
|
[1] |
LINK DRAG
|
2.0460(lbs); 0.930
|
| 007. |
3824012650
|
[2] |
COVER DUST
|
0.0220(lbs); 0.010
|
| 008. |
3824012660
|
[2] |
CLIP
|
0.0110(lbs); 0.005
|
| 009. |
3824012830
|
[2] |
NUT
|
0.0176(lbs); 0.008
|
| 010. |
0551150325
|
[2] |
PIN SPLIT
|
0.0044(lbs); 0.002
|
| 011. |
3521912402
|
[2] |
ASSY ROD TIE
|
3.5640(lbs); 1.620
|
| 012. |
3521912413
|
[2] |
ASSY ROD TIE
|
1.6390(lbs); 0.745
|
| 013. |
3521912420
|
[2] |
COMP.ROD TIE
|
1.6280(lbs); 0.740
|
| 014. |
3824012650
|
[2] |
COVER DUST
|
0.0220(lbs); 0.010
|
| 015. |
3824012660
|
[2] |
CLIP
|
0.0110(lbs); 0.005
|
| 016. |
3824012830
|
[2] |
NUT
|
0.0176(lbs); 0.008
|
| 017. |
0551150325
|
[2] |
PIN SPLIT
|
0.0044(lbs); 0.002
|
| 019. |
3521912453
|
[2] |
ROD TIE OUTER
|
0.9900(lbs); 0.450
|
| 021. |
3844044780
|
[2] |
ASSY END TIE ROD RH
|
0.7084(lbs); 0.322
|
| 021. |
H384044700
|
[2] |
END,ROD,ASSY
|
0.7084(lbs); 0.322
|
| 022. |
3824012650
|
[2] |
COVER DUST
|
0.0220(lbs); 0.010
|
| 023. |
3824012660
|
[2] |
CLIP
|
0.0110(lbs); 0.005
|
| 024. |
0551150325
|
[2] |
PIN SPLIT
|
0.0044(lbs); 0.002
|
| 025. |
3824012830
|
[2] |
NUT
|
0.0176(lbs); 0.008
|
| 026. |
0217250160
|
[2] |
NUT
|
0.0374(lbs); 0.017
|
| 027. |
3824012470
|
[2] |
CLAMP
|
0.1430(lbs); 0.065
|
| 028. |
3824012480
|
[2] |
BOLT
|
0.0704(lbs); 0.032
|
| 029. |
0217650100
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
| 030. |
0401350100
|
[2] |
WASHER PLAIN
|
0.0088(lbs); 0.004
|
| 031. |
0451250100
|
[2] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 032. |
3521916920
|
[1] |
LEVER STEERING
|
8.3600(lbs); 3.800
|
| 033. |
3415028430
|
[2] |
BUSH
|
0.0880(lbs); 0.040
|
| 034. |
3521916930
|
[1] |
CAP STEERING LEVER
|
0.3300(lbs); 0.150
|
| 035. |
0411150100
|
[1] |
WASHER
|
0.0066(lbs); 0.003
|
| 036. |
0115351018
|
[1] |
BOLT
|
0.0330(lbs); 0.015
|
| 037. |
0661310675
|
[1] |
NIPPLE GREASE
|
0.0066(lbs); 0.003
|
