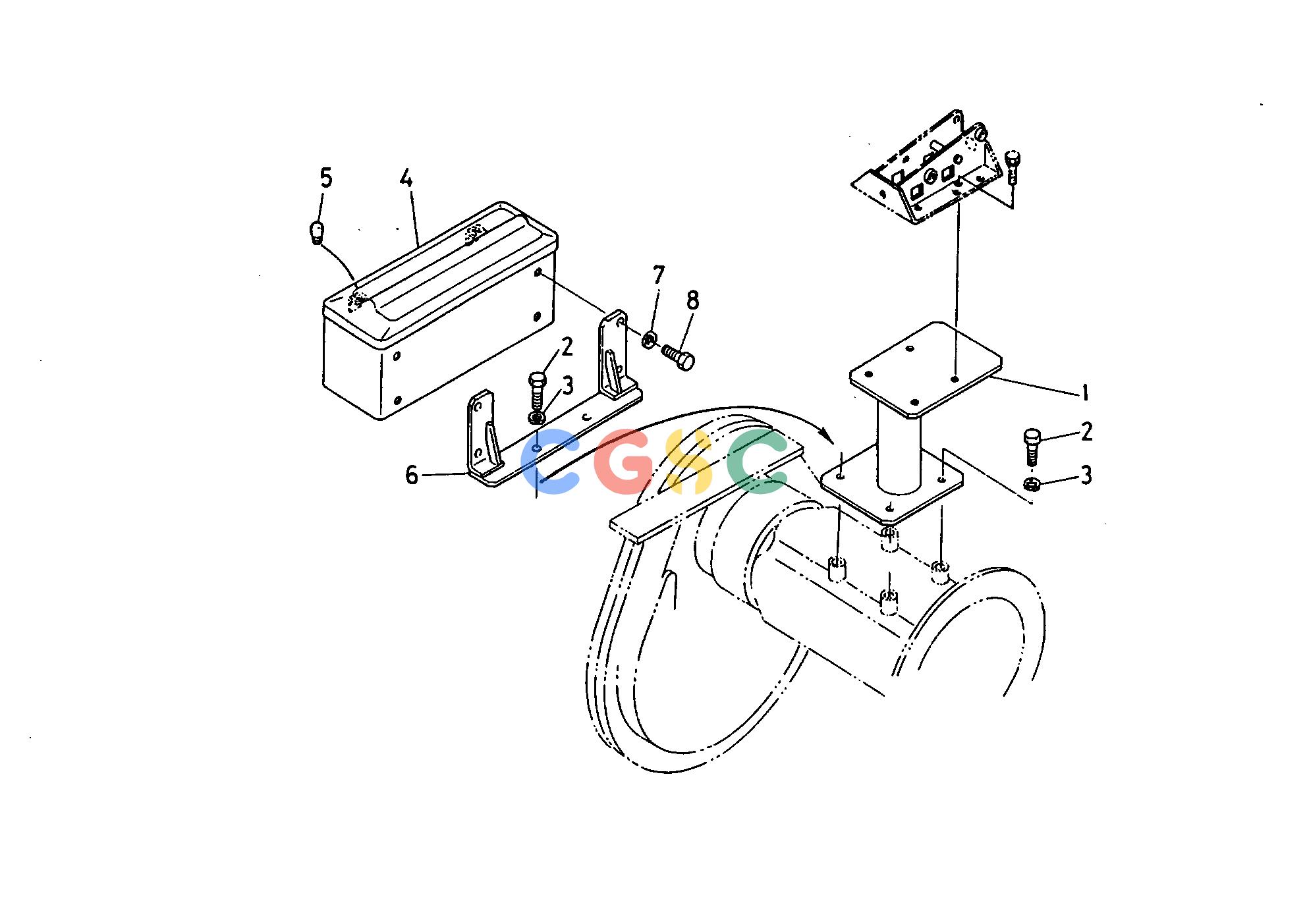

久保田零件查询T07100 SEAT BRACKET HOOD(BONNET) AND CHASSISEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
927 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3521918710
|
[1] |
SUPPORT SEAT
|
7.0400(lbs); 3.200
|
| 002. |
0117351225
|
[4] |
BOLT
|
0.0726(lbs); 0.033
|
| 003. |
0451250120
|
[4] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 004. |
3521918510
|
[1] |
COMP.BOX TOOLS
|
5.8300(lbs); 2.650
|
| 005. |
3325190120
|
[2] |
CUSHION
|
0.0022(lbs); 0.001
|
| 006. |
3521918810
|
[1] |
STAY TOOL BOXE
|
1.5400(lbs); 0.700
|
| 007. |
0451250100
|
[4] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 008. |
0117351020
|
[4] |
BOLT
|
0.0374(lbs); 0.017
|
