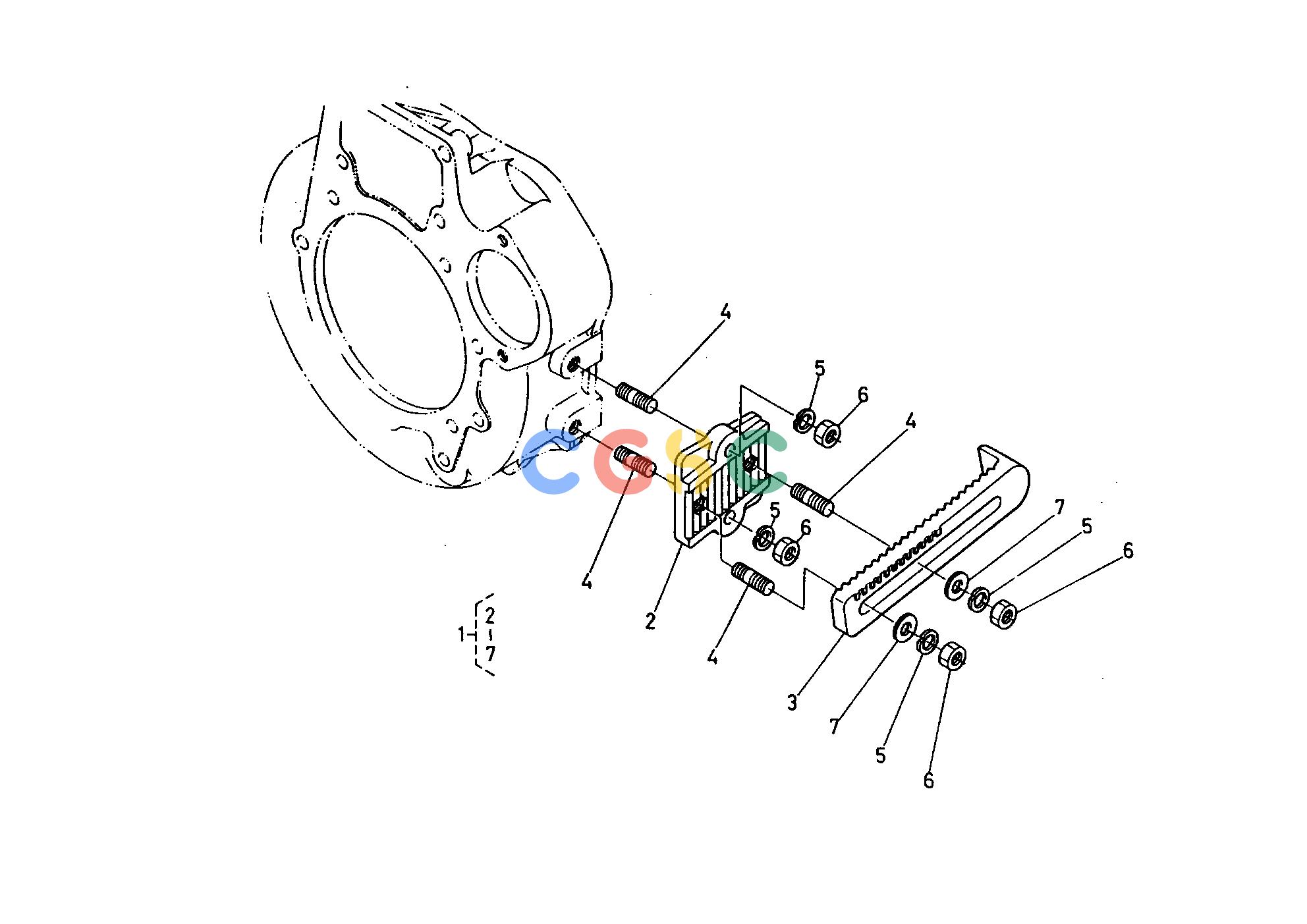

久保田零件查询T07500 MID CULTIVATE STOPPER [OPTION] ACCESSORIES AND SERVICE PARTSEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
490 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3521939200
|
[1] |
ASSY STOPPER
|
5.9400(lbs); 2.700
|
| 002. |
3521939210
|
[1] |
BRACKET STOPPER
|
2.5740(lbs); 1.170
|
| 003. |
3521939220
|
[1] |
STOPPER
|
2.5300(lbs); 1.150
|
| 004. |
0151751440
|
[4] |
STUD
|
0.1408(lbs); 0.064
|
| 005. |
0451250140
|
[4] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
| 006. |
0217450140
|
[4] |
NUT
|
0.0308(lbs); 0.014
|
| 007. |
0401350140
|
[2] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
