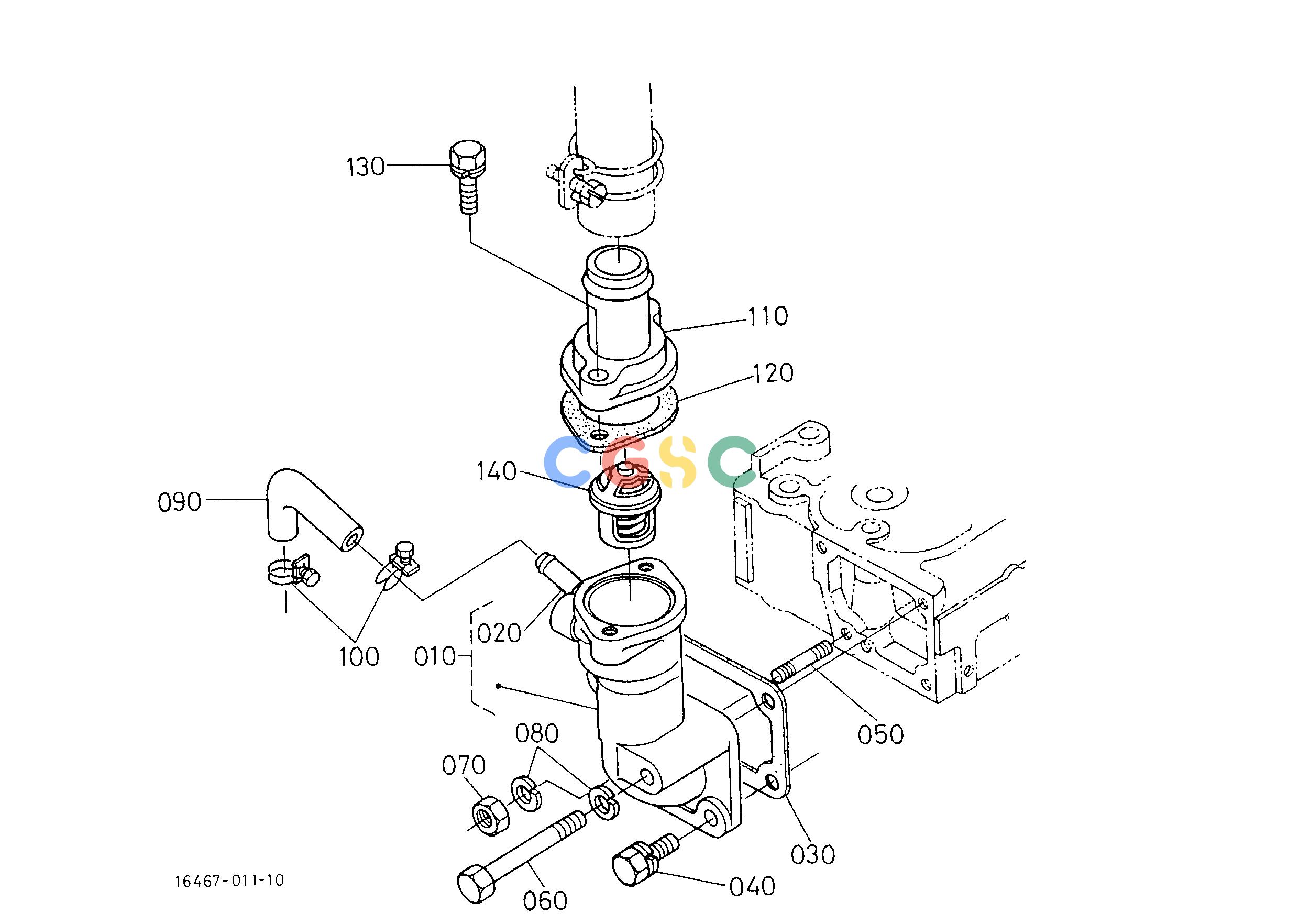

久保田零件查询T01800 WATER FLANGE AND THERMOSTAT ENGINEEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
628 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1733172703
|
[1] |
COMP.FLANGE WATER
|
0.7920(lbs); 0.360
|
| 020. |
1733173342
|
[1] |
PIPE WATER RETURN
|
0.0220(lbs); 0.010
|
| 030. |
1576672920
|
[1] |
GASKET WATER FLANGE
|
0.0220(lbs); 0.010
|
| 030. |
1A02172920
|
[1] |
GASKET WATER FLANGE
|
0.0044(lbs); 0.002
|
| 040. |
0112350822
|
[2] |
BOLT
|
0.0264(lbs); 0.012
|
| 040. |
0112350820
|
[2] |
BOLT
|
0.0242(lbs); 0.011
|
| 050. |
1522191530
|
[1] |
STUD
|
0.0220(lbs); 0.010
|
| 060. |
0115350870
|
[1] |
BOLT
|
0.0572(lbs); 0.026
|
| 070. |
0215650080
|
[1] |
NUT
|
0.0088(lbs); 0.004
|
| 080. |
0451260080
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 090. |
1552173340
|
[1] |
PIPE WATER RETURN
|
0.0550(lbs); 0.025
|
| 100. |
1510973360
|
[2] |
BAND PIPE
|
0.0220(lbs); 0.010
|
| 110. |
1532173260
|
[1] |
COVER THERMOSTAT
|
0.2354(lbs); 0.107
|
| 120. |
1531373270
|
[1] |
GASKET THERMOSTAT
|
0.0022(lbs); 0.001
|
| 120. |
1A02173270
|
[1] |
GASKET THERMO.COVER
|
0.0022(lbs); 0.001
|
| 130. |
0112350835
|
[2] |
BOLT
|
0.0440(lbs); 0.020
|
| 140. |
1943473010
|
[1] |
ASSY THERMOSTAT
|
0.1540(lbs); 0.070
|
