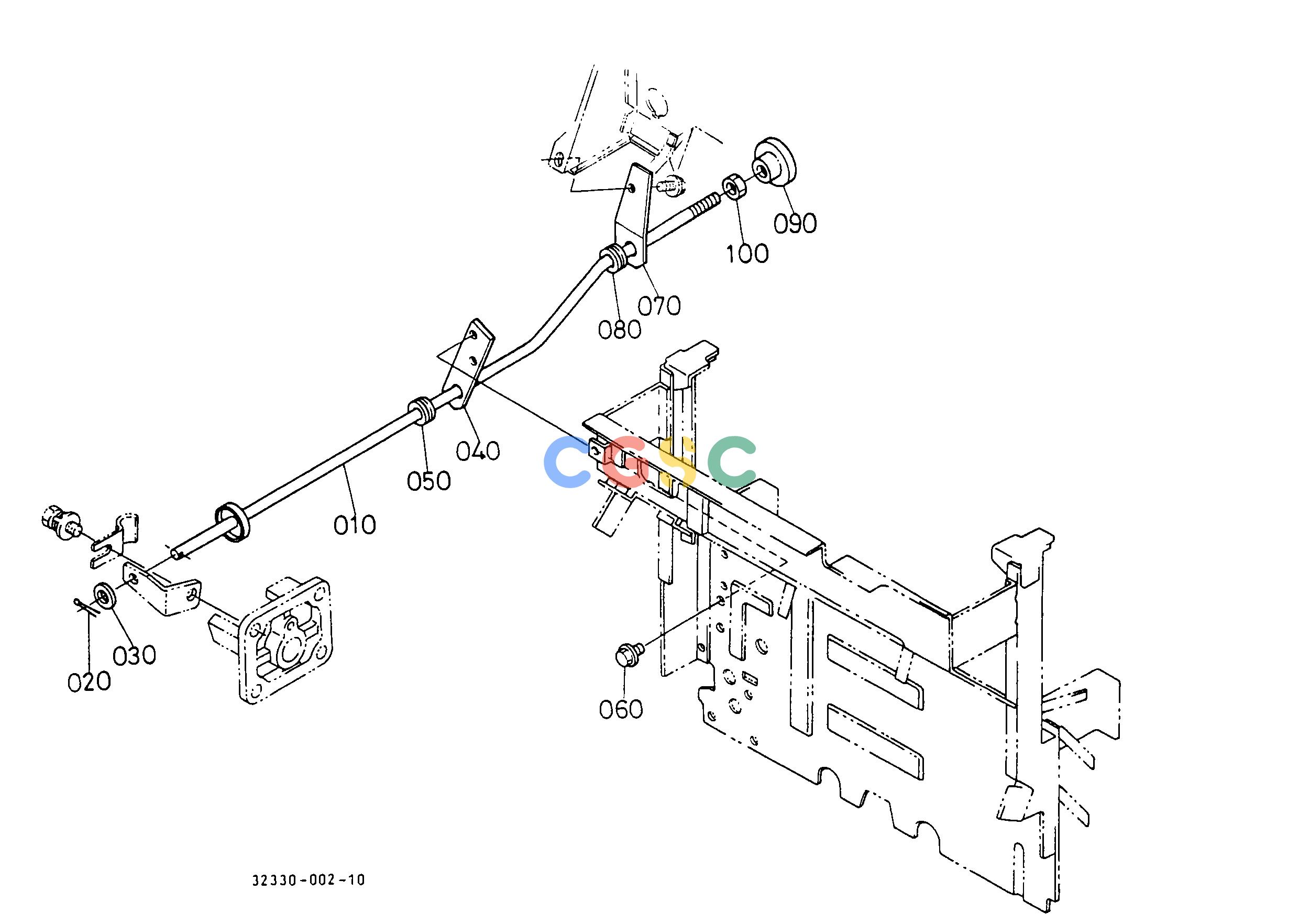

久保田零件查询T02700 STOP ROD ENGINEEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
728 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3233017153
|
[1] |
ROD STOP
|
0.3410(lbs); 0.155
|
| 020. |
0551150218
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 030. |
0401360060
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 040. |
3233017160
|
[1] |
SUPPORT
|
0.1320(lbs); 0.060
|
| 050. |
6659154580
|
[1] |
CUSHION
|
0.0044(lbs); 0.002
|
| 060. |
0175450812
|
[2] |
BOLT FLANGE
|
0.0220(lbs); 0.010
|
| 070. |
3233017190
|
[1] |
SUPPORT
|
0.0902(lbs); 0.041
|
| 080. |
3633087450
|
[1] |
RING RUBBER
|
0.0022(lbs); 0.001
|
| 090. |
3233017180
|
[1] |
KNOB
|
0.0198(lbs); 0.009
|
| 100. |
0201260060
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
