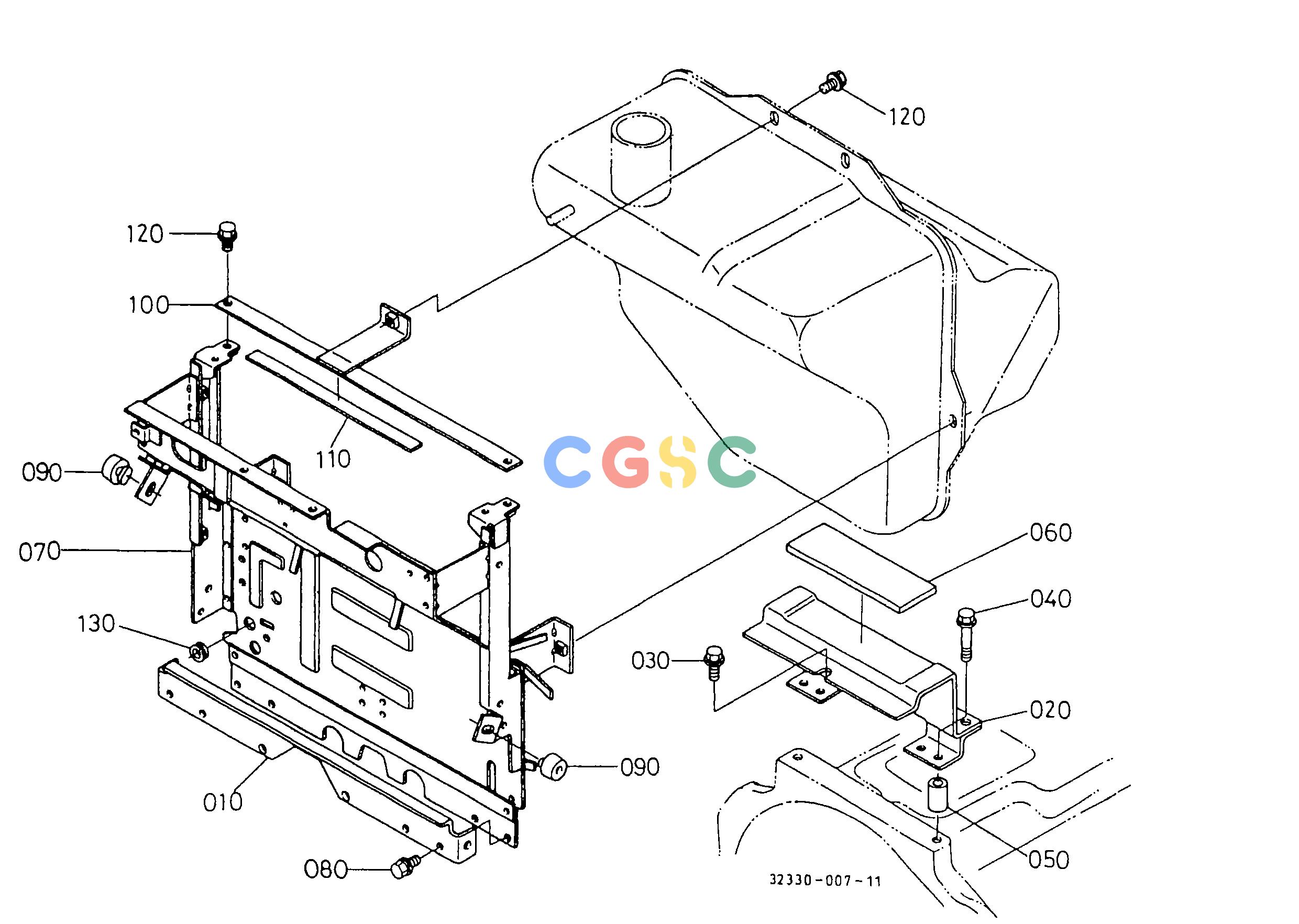

久保田零件查询T03402 SHUTTER [POWER STRG.] COOLING WATER SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
557 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3135135230
|
[1] |
SUPPORT SHUTTER
|
0.7590(lbs); 0.345
|
| 020. |
3240045670
|
[1] |
STAY FUEL TANK
|
0.7920(lbs); 0.360
|
| 030. |
0175450812
|
[1] |
BOLT FLANGE
|
0.0220(lbs); 0.010
|
| 040. |
0175450850
|
[2] |
BOLT FLANGE
|
0.0484(lbs); 0.022
|
| 050. |
3501035270
|
[2] |
SPACER
|
0.1650(lbs); 0.075
|
| 060. |
3135135180
|
[1] |
CUSHION TANK
|
0.0880(lbs); 0.040
|
| 060. |
3135135183
|
[1] |
CUSHION TANK
|
0.0880(lbs); 0.040
|
| 070. |
3233035210
|
[1] |
PLATE SHUTTER
|
8.3600(lbs); 3.800
|
| 080. |
0175450812
|
[4] |
BOLT FLANGE
|
0.0220(lbs); 0.010
|
| 090. |
3040017980
|
[2] |
RUBBER BLOCK
|
0.0220(lbs); 0.010
|
| 100. |
3231035310
|
[1] |
BAND FUEL TANK
|
0.3520(lbs); 0.160
|
| 110. |
3135113820
|
[1] |
CUSHION BATTERY
|
0.0330(lbs); 0.015
|
| 120. |
0175450812
|
[3] |
BOLT FLANGE
|
0.0220(lbs); 0.010
|
| 130. |
6361152330
|
[1] |
CUSHION
|
0.0220(lbs); 0.010
|
