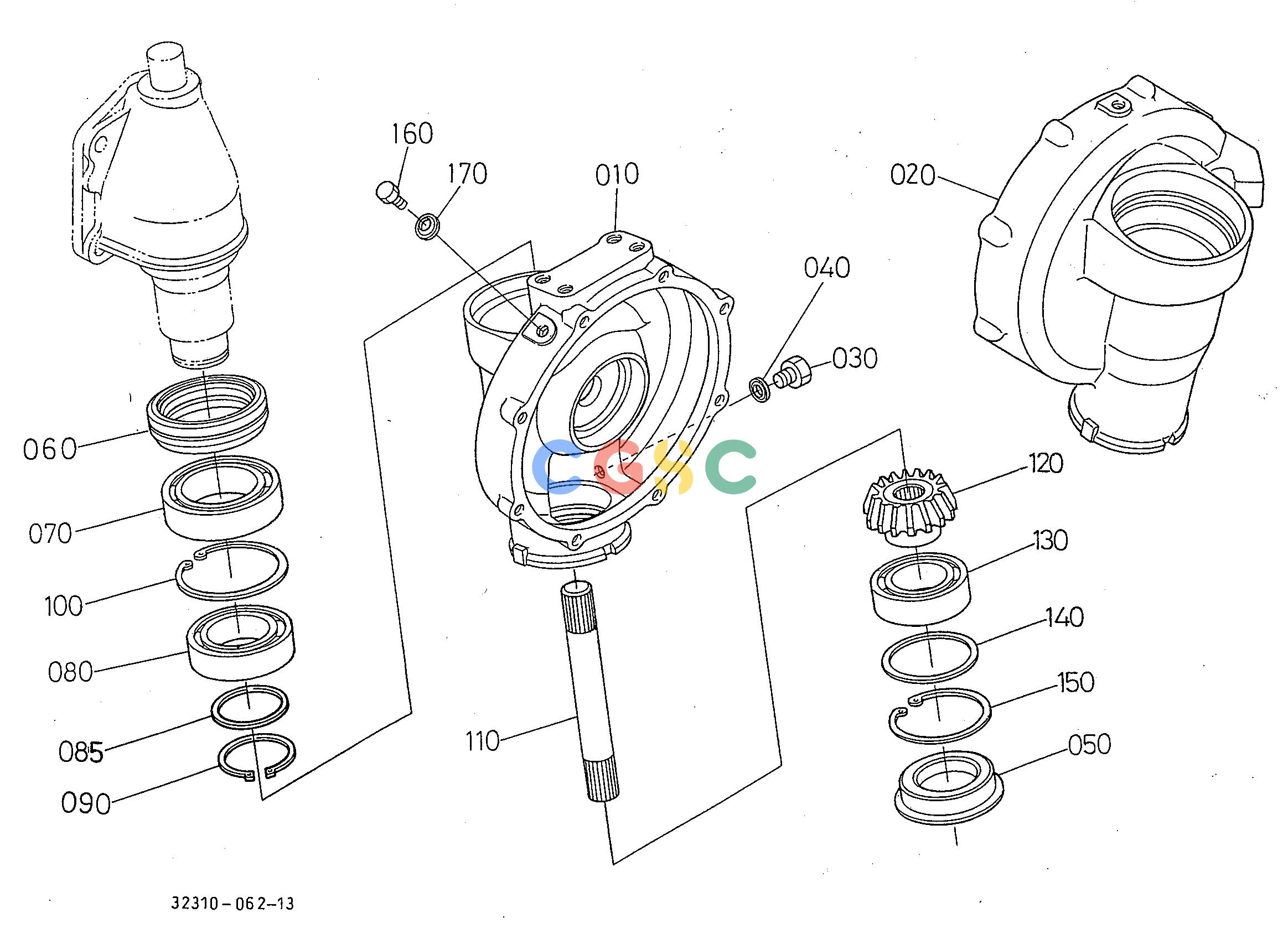

久保田零件查询T07100 FRONT AXLE CASE FRONT AXLE/FRONT WHEEL/CHASSISEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
981 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3500043822
|
[1] |
CASE AXLE LH
|
19.8000(lbs); 9.000
|
| 020. |
3500043832
|
[1] |
CASE AXLE RH
|
18.4800(lbs); 8.400
|
| 030. |
0633145012
|
[2] |
PLUG
|
0.0616(lbs); 0.028
|
| 040. |
0471701200
|
[2] |
WASHER WITH RUBBER
|
0.0044(lbs); 0.002
|
| 050. |
3135343850
|
[2] |
PLUG
|
0.1650(lbs); 0.075
|
| 060. |
3135343876
|
[2] |
SEAL OIL
|
0.0000(lbs); 0.000
|
| 060. |
T027013150
|
[2] |
SEAL OIL
|
0.0000(lbs); 0.000
|
| 060. |
T027013152
|
[2] |
SEAL OIL
|
0.2200(lbs); 0.100
|
| 060. |
3233099600
|
[2] |
ASSY SEAL OIL
|
0.2992(lbs); 0.136
|
| 070. |
0810106012
|
[2] |
BEARING BALL
|
0.9020(lbs); 0.410
|
| 080. |
0810106010
|
[2] |
BEARING BALL
|
0.5764(lbs); 0.262
|
| 085. |
TA14012080
|
[2] |
SHIM
|
0.0154(lbs); 0.007
|
| 085. |
TA14012100
|
[2] |
SHIM
|
0.0176(lbs); 0.008
|
| 085. |
TA14012120
|
[2] |
SHIM
|
0.0220(lbs); 0.010
|
| 085. |
TA14012140
|
[2] |
SHIM
|
0.0242(lbs); 0.011
|
| 085. |
TA14012160
|
[2] |
SHIM
|
0.0286(lbs); 0.013
|
| 090. |
0461200500
|
[2] |
CIRCLIP EXTERNAL
|
0.0176(lbs); 0.008
|
| 100. |
0461100800
|
[2] |
CIR CLIP INTERNAL
|
0.0440(lbs); 0.020
|
| 110. |
3135343910
|
[2] |
SHAFT BEVEL GEAR
|
1.4740(lbs); 0.670
|
| 120. |
3133343930
|
[2] |
GEAR BEVEL
|
1.4960(lbs); 0.680
|
| 130. |
0810106009
|
[2] |
BEARING BALL
|
0.4840(lbs); 0.220
|
| 140. |
3135343460
|
[2] |
SHIM
|
0.0220(lbs); 0.010
|
| 140. |
3135343480
|
[2] |
SHIM
|
0.0330(lbs); 0.015
|
| 140. |
3135344030
|
[2] |
SHIM
|
0.0440(lbs); 0.020
|
| 140. |
3135344040
|
[2] |
SHIM
|
0.0440(lbs); 0.020
|
| 140. |
3135344050
|
[2] |
SHIM
|
0.0440(lbs); 0.020
|
| 140. |
3135344060
|
[2] |
SHIM
|
0.0550(lbs); 0.025
|
| 140. |
3135344070
|
[2] |
SHIM
|
0.0880(lbs); 0.040
|
| 150. |
0461100750
|
[2] |
CIR CLIP INTERNAL
|
0.0418(lbs); 0.019
|
| 160. |
0633145010
|
[2] |
PLUG
|
0.0440(lbs); 0.020
|
| 170. |
0471701000
|
[2] |
WASHER WITH RUBBER
|
0.0022(lbs); 0.001
|
