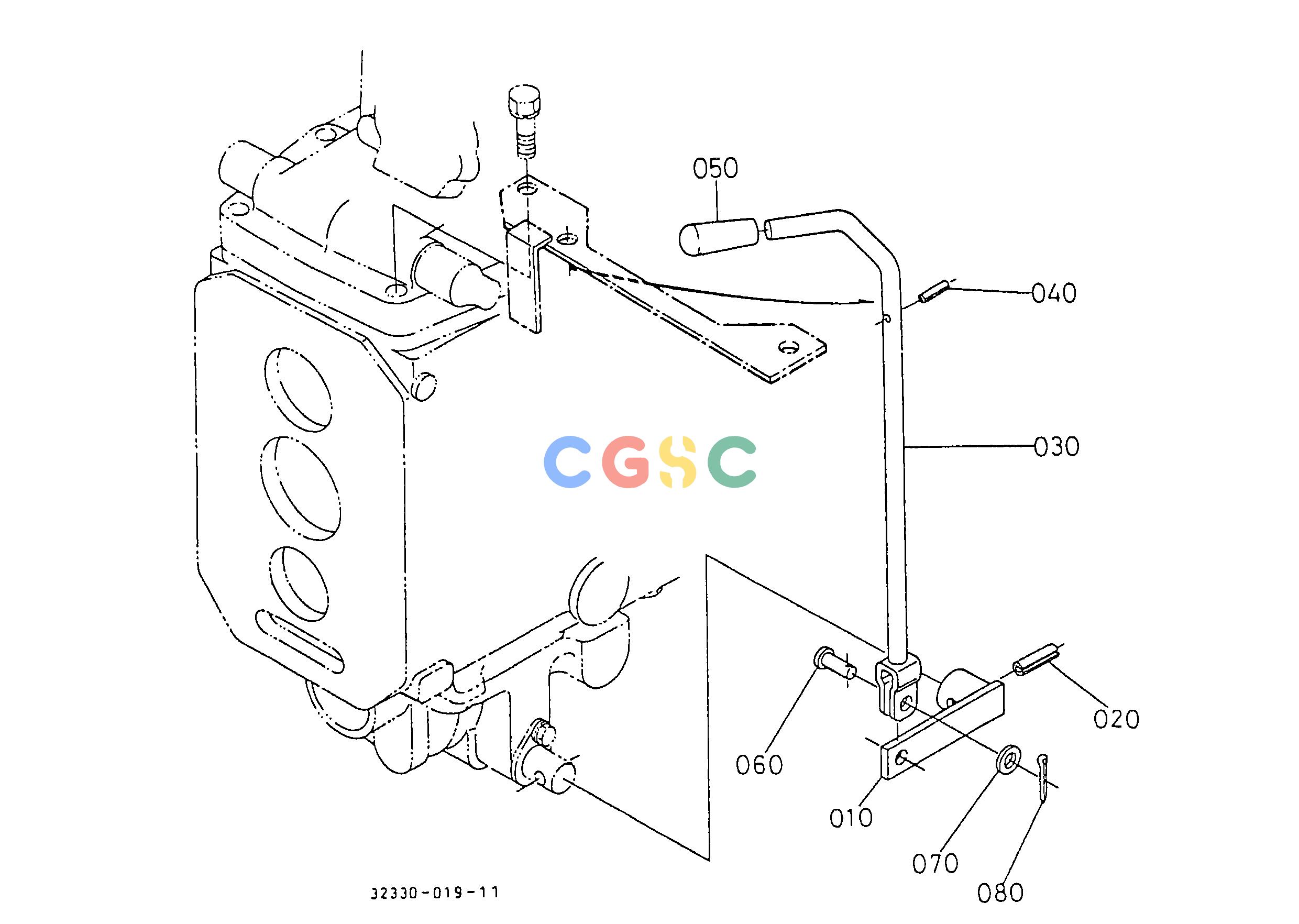

久保田零件查询T07700 FRONT WHEEL DRIVE LEVER FRONT AXLE/FRONT WHEEL/CHASSISEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
564 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3501044360
|
[1] |
LEVER CHANGE
|
0.4400(lbs); 0.200
|
| 020. |
0541100625
|
[1] |
PIN SPRING
|
0.0088(lbs); 0.004
|
| 030. |
3501044402
|
[1] |
LEVER FRONT DRIVE
|
0.0000(lbs); 0.000
|
| 030. |
3501044403
|
[1] |
LEVER FRONT DRIVE
|
1.1000(lbs); 0.500
|
| 040. |
0541100425
|
[1] |
PIN SPRING
|
0.0022(lbs); 0.001
|
| 050. |
3233024560
|
[1] |
GRIP LEVER
|
0.0330(lbs); 0.015
|
| 060. |
0512251022
|
[1] |
PIN JOINT
|
0.0308(lbs); 0.014
|
| 070. |
0401360100
|
[1] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 080. |
0551150318
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
