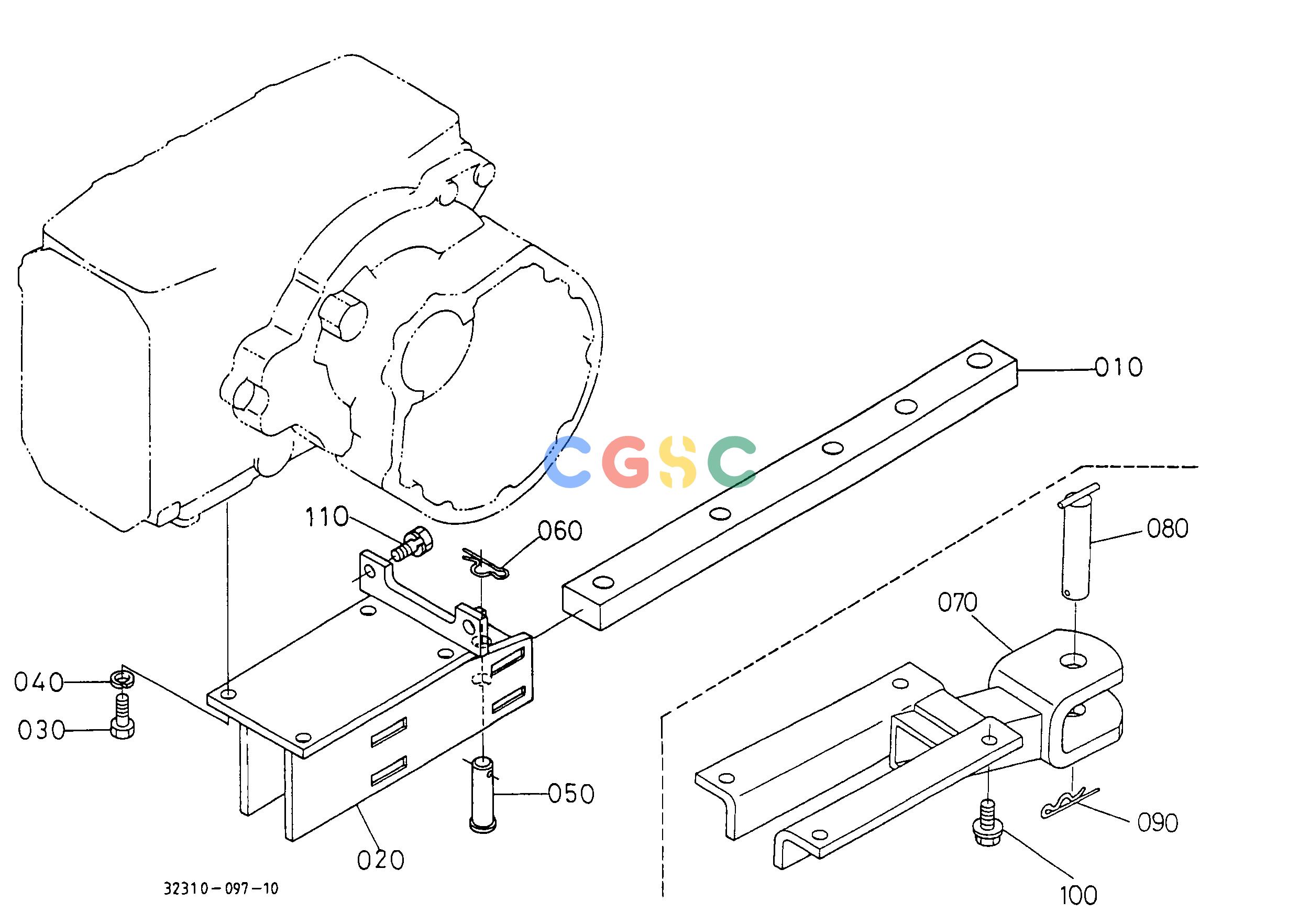

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 010. | 3507029710 | [1] | DRAWBAR | 15.4000(lbs); 7.000 |
| 020. | 3500029730 | [1] | FRAME DRAWBAR | 19.5360(lbs); 8.880 |
| 030. | 0117351430 | [4] | BOLT | 0.1144(lbs); 0.052 |
| 040. | 0451260140 | [4] | WASHER SPRING | 0.0176(lbs); 0.008 |
| 050. | 0511252070 | [1] | PIN JOINT | 0.4092(lbs); 0.186 |
| 060. | 0551551600 | [1] | PIN SNAP | 0.0154(lbs); 0.007 |
| 110. | 0113351230 | [2] | BOLT | 0.0880(lbs); 0.040 |
