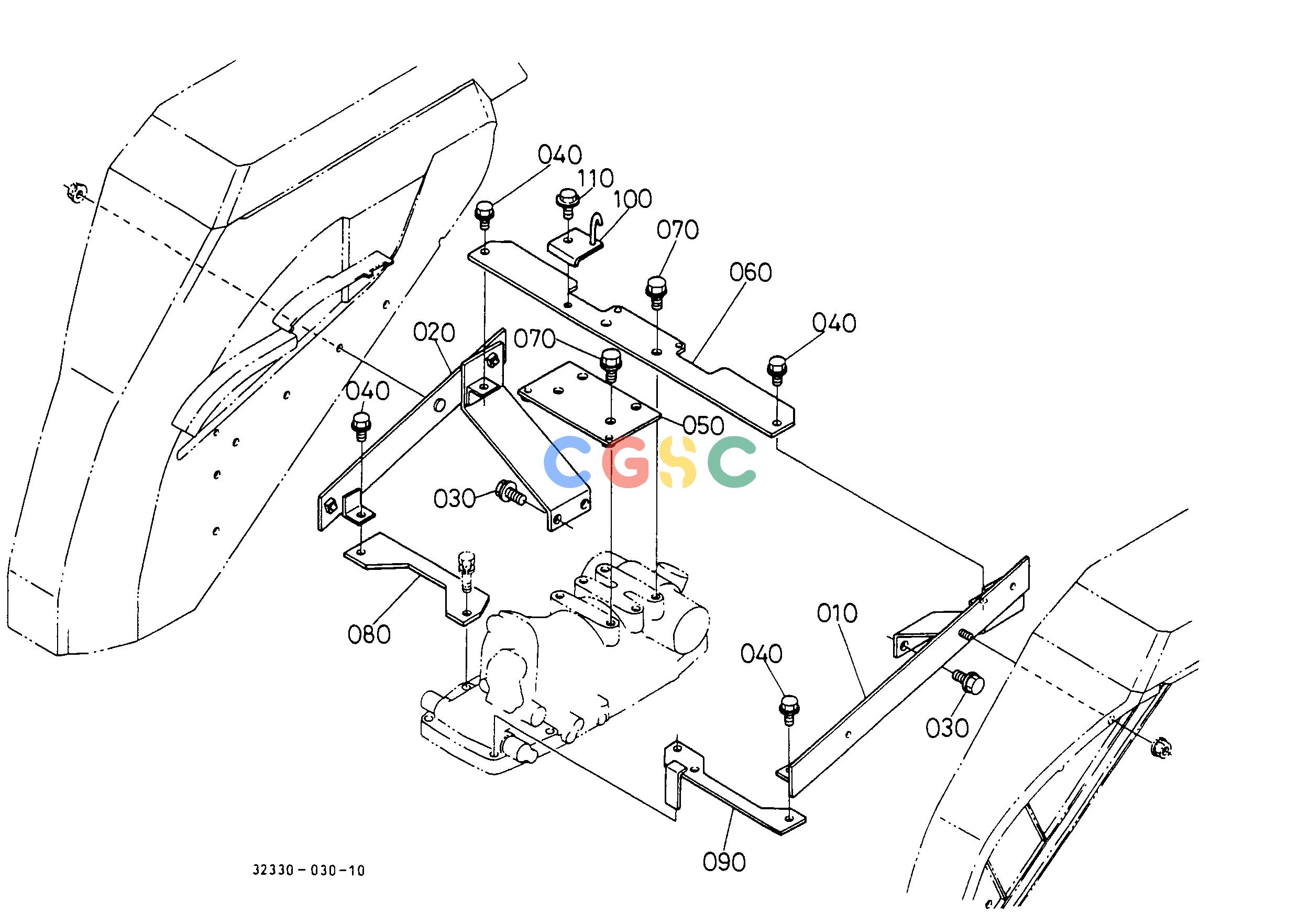

久保田零件查询T11000 FENDER SUPPORT HOOD(BONNET)/ROPSEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
651 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3501029210
|
[1] |
SUPPORT FENDER LH
|
0.0000(lbs); 0.000
|
| 010. |
3501029212
|
[1] |
SUPPORT FENDER LH
|
4.5320(lbs); 2.060
|
| 020. |
3501029220
|
[1] |
SUPPORT FENDER RH
|
0.0000(lbs); 0.000
|
| 020. |
3501029222
|
[1] |
SUPPORT FENDER RH
|
4.2130(lbs); 1.915
|
| 030. |
0177451220
|
[4] |
BOLT FLANGE
|
0.0660(lbs); 0.030
|
| 040. |
0175450816
|
[4] |
BOLT FLANGE
|
0.0242(lbs); 0.011
|
| 040. |
0175450820
|
[2] |
BOLT FLANGE
|
0.0330(lbs); 0.015
|
| 045. |
0175450825
|
[2] |
BOLT FLANGE
|
0.0220(lbs); 0.010
|
| 050. |
3233029220
|
[1] |
STAY SEAT
|
1.7600(lbs); 0.800
|
| 060. |
3233029230
|
[1] |
STAY SEAT
|
3.3000(lbs); 1.500
|
| 070. |
0177451016
|
[6] |
BOLT FLANGE
|
0.0440(lbs); 0.020
|
| 080. |
3501029242
|
[1] |
STAY FENDER RH
|
0.6600(lbs); 0.300
|
| 090. |
3501029250
|
[1] |
STAY FENDER LH
|
0.6930(lbs); 0.315
|
| 100. |
3233029270
|
[1] |
SUPPORT
|
0.1100(lbs); 0.050
|
| 110. |
0175450816
|
[1] |
BOLT FLANGE
|
0.0242(lbs); 0.011
|
