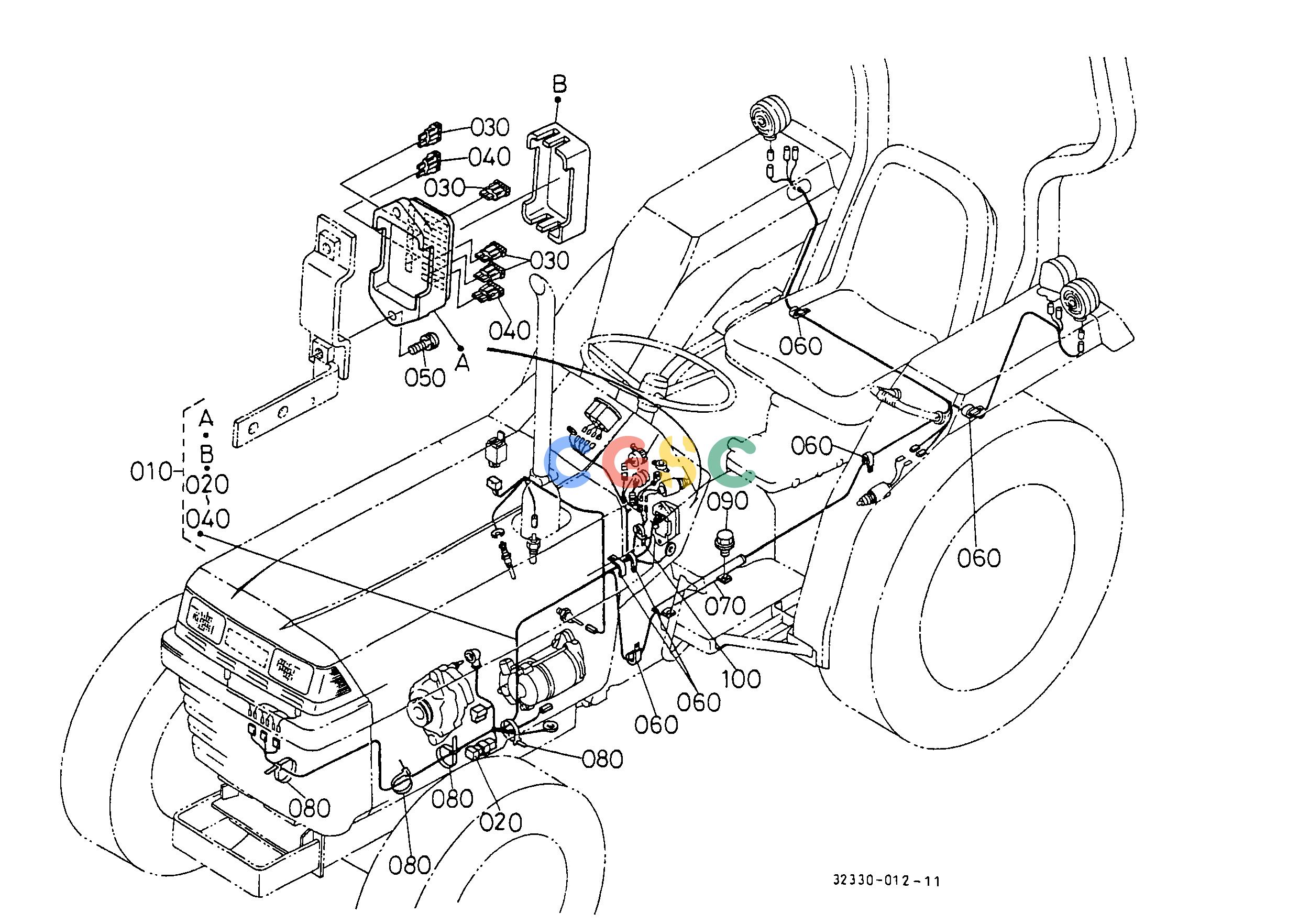

久保田零件查询T04301 ELECTRICAL WIRING ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
579 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3233030310
|
[1] |
WIRE HARNESS
|
0.0000(lbs); 0.000
|
| 010. |
3233030312
|
[1] |
WIRE HARNESS
|
1.7930(lbs); 0.815
|
| 020. |
3467034530
|
[1] |
FUSE SLOW BLOW
|
0.0066(lbs); 0.003
|
| 030. |
3135133630
|
[4] |
FUSE
|
0.0044(lbs); 0.002
|
| 040. |
3135133640
|
[2] |
FUSE
|
0.0044(lbs); 0.002
|
| 050. |
3139131140
|
[2] |
SCREW
|
0.0220(lbs); 0.010
|
| 060. |
1381667580
|
[5] |
CLAMP CORD
|
0.0088(lbs); 0.004
|
| 070. |
3233034480
|
[1] |
RETAINER CORD
|
0.0880(lbs); 0.040
|
| 080. |
5531141260
|
[4] |
BAND CORD
|
0.0154(lbs); 0.007
|
| 090. |
0175450812
|
[2] |
BOLT FLANGE
|
0.0220(lbs); 0.010
|
| 100. |
5531141260
|
[1] |
BAND CORD
|
0.0154(lbs); 0.007
|
