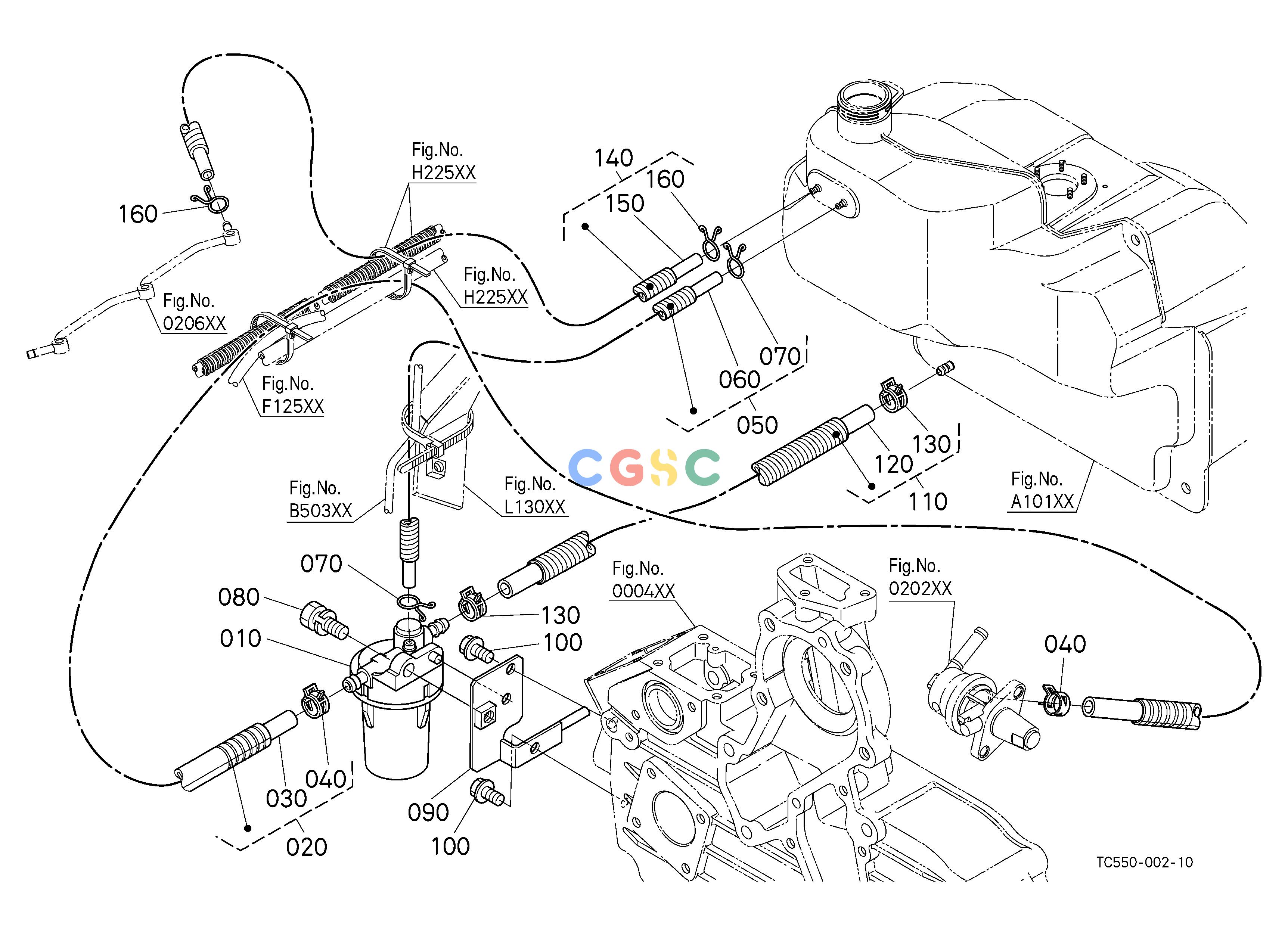

久保田零件查询A11000 FUEL PIPE/FUEL FILTER FUEL SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
770 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6A32058862
|
[1] |
ASSY FILTER,FUEL
|
0.1980(lbs); 0.090
|
| 020. |
T115042610
|
[1] |
ASSY TUBE,FUEL
|
0.2530(lbs); 0.115
|
| 030. |
0966480750
|
[1] |
TUBE,FUEL
|
0.1980(lbs); 0.090
|
| 040. |
0931888125
|
[2] |
CLAMP,HOSE
|
0.0022(lbs); 0.001
|
| 050. |
T018042640
|
[1] |
ASSY PIPE,FUEL
|
0.1100(lbs); 0.050
|
| 060. |
0966140600
|
[1] |
TUBE FUEL 600 MM
|
0.0660(lbs); 0.030
|
| 070. |
1497142750
|
[2] |
CLIP,PIPE
|
0.0022(lbs); 0.001
|
| 080. |
0112350825
|
[1] |
BOLT,SEMS
|
0.0286(lbs); 0.013
|
| 090. |
TC22016563
|
[1] |
STAY,FUEL FILTER
|
0.1364(lbs); 0.062
|
| 100. |
0175450610
|
[2] |
BOLT,FLANGE
|
0.0132(lbs); 0.006
|
| 110. |
TA47042610
|
[1] |
ASSY TUBE,FUEL
|
0.1760(lbs); 0.080
|
| 120. |
3741088230
|
[1] |
PIPE,FUEL
|
0.1584(lbs); 0.072
|
| 130. |
0931888125
|
[2] |
CLAMP,HOSE
|
0.0022(lbs); 0.001
|
| 140. |
T018042640
|
[1] |
ASSY PIPE,FUEL
|
0.1100(lbs); 0.050
|
| 150. |
0966140600
|
[1] |
TUBE FUEL 600 MM
|
0.0660(lbs); 0.030
|
| 160. |
1497142750
|
[2] |
CLIP,PIPE
|
0.0022(lbs); 0.001
|
