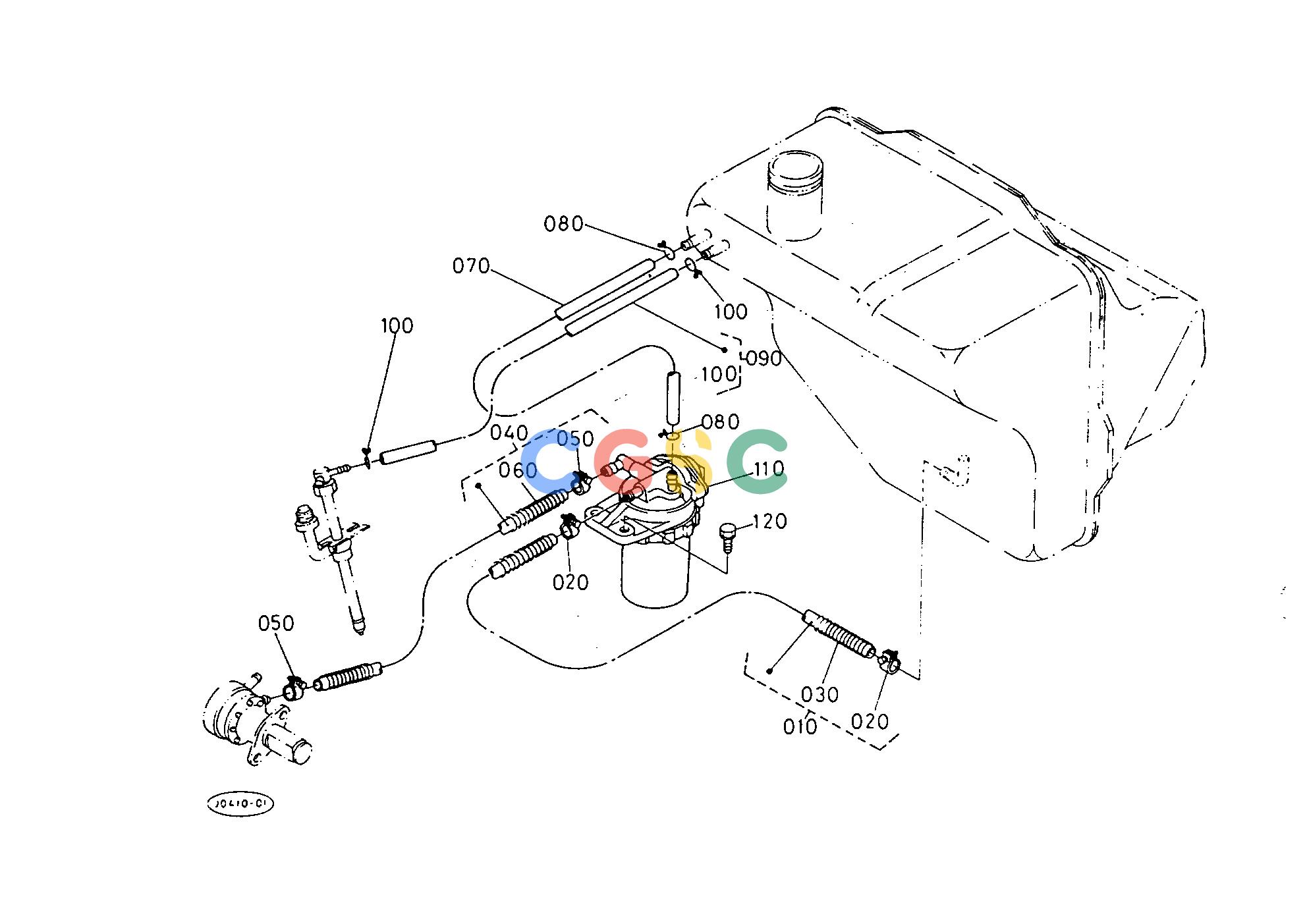

久保田零件查询T05100 FUEL FILTER FUEL SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
875 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3135135510
|
[1] |
ASSY PIPE FUEL
|
0.1320(lbs); 0.060
|
| 020. |
1430142750
|
[2] |
CLIP PIPE
|
0.0110(lbs); 0.005
|
| 030. |
3135193610
|
[1] |
SPRING PIPE PROTECT.
|
0.0220(lbs); 0.010
|
| 040. |
3134135520
|
[1] |
ASSY PIPE FUEL
|
0.1540(lbs); 0.070
|
| 050. |
1430142750
|
[2] |
CLIP PIPE
|
0.0110(lbs); 0.005
|
| 060. |
3134193630
|
[1] |
SPRING PIPE PROTECT.
|
0.0440(lbs); 0.020
|
| 070. |
3135135530
|
[1] |
PIPE FUEL
|
0.0660(lbs); 0.030
|
| 080. |
1497142750
|
[2] |
CLIP PIPE
|
0.0022(lbs); 0.001
|
| 090. |
3135135540
|
[1] |
ASSY PIPE FUEL
|
0.0440(lbs); 0.020
|
| 100. |
1497142750
|
[2] |
CLIP PIPE
|
0.0022(lbs); 0.001
|
| 110. |
1927143010
|
[1] |
ASSY FILTER FUEL
|
0.0000(lbs); 0.000
|
| 110. |
1739743010
|
[1] |
ASSY FILTER FUEL
|
0.0000(lbs); 0.000
|
| 110. |
1738843010
|
[1] |
ASSY FILTER FUEL
|
0.4400(lbs); 0.200
|
| 120. |
0112350822
|
[2] |
BOLT
|
0.0264(lbs); 0.012
|
