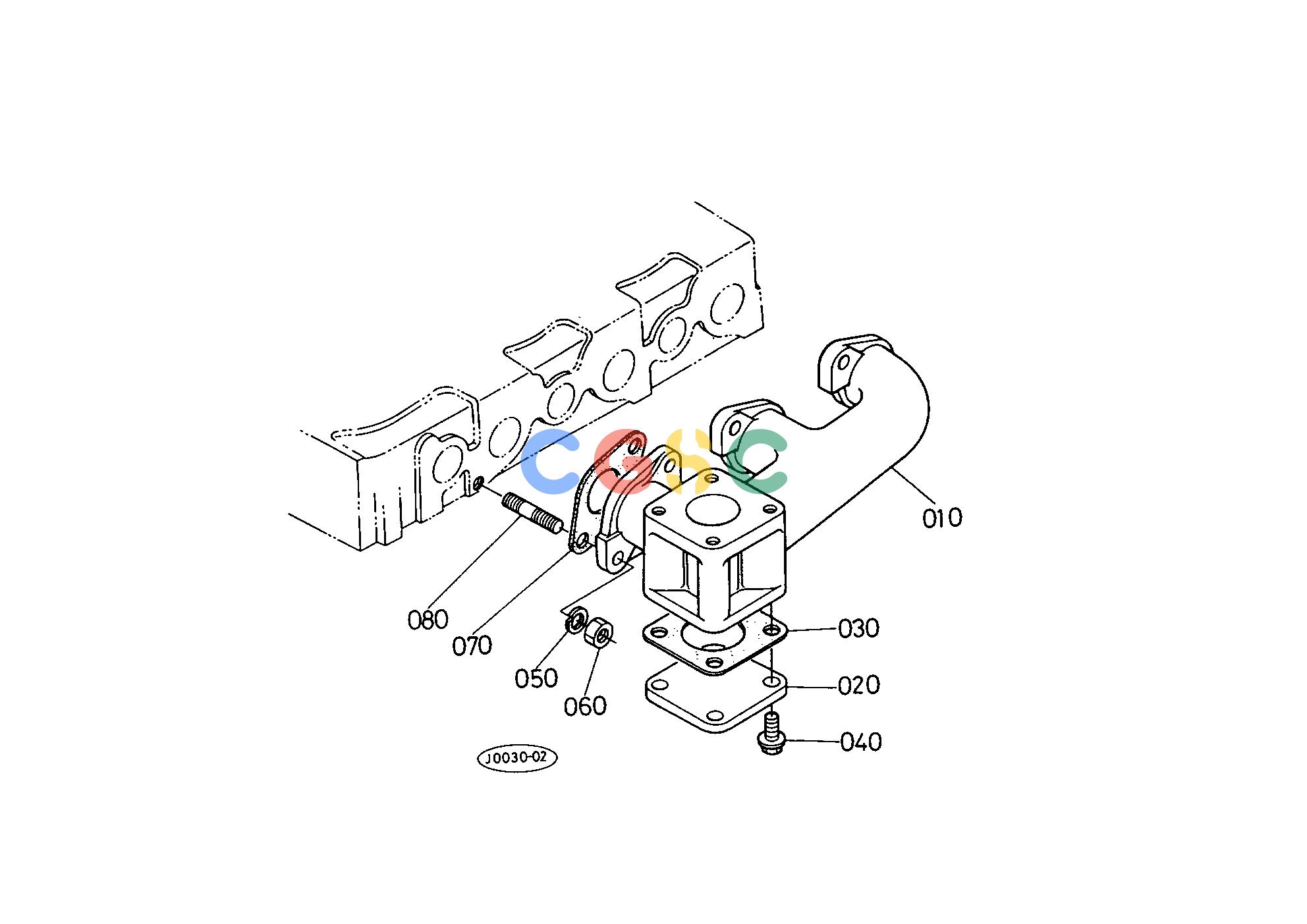

久保田零件查询T01200 EXHAUST MANIFOLD ENGINEEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
787 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1732512310
|
[1] |
MANIFOLD EXHAUST
|
0.0000(lbs); 0.000
|
| 020. |
1735592850
|
[1] |
COVER MANIFOLD
|
0.0000(lbs); 0.000
|
| 030. |
1547112230
|
[1] |
GASKET MUFFLER
|
0.0000(lbs); 0.000
|
| 040. |
0112350820
|
[4] |
BOLT
|
0.0242(lbs); 0.011
|
| 050. |
0451250080
|
[6] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 060. |
0215650080
|
[6] |
NUT
|
0.0088(lbs); 0.004
|
| 070. |
1552112350
|
[3] |
GASKET EX-MANIFOLD
|
0.0000(lbs); 0.000
|
| 080. |
1522191530
|
[6] |
STUD
|
0.0220(lbs); 0.010
|
