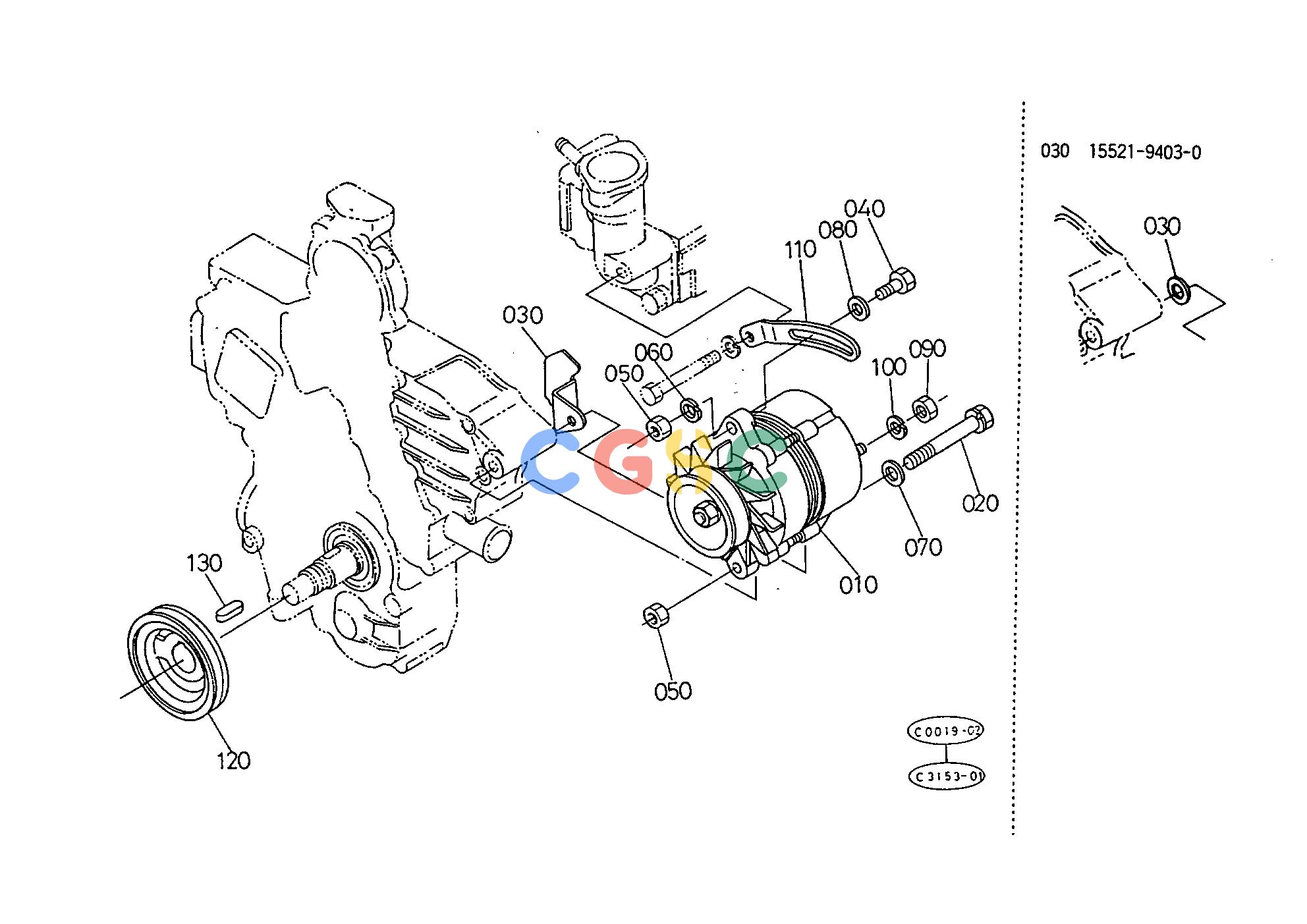

久保田零件查询T05801 DYNAMO EXCEPT [CA] ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
803 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1525364010
|
[1] |
ASSY DYNAMO
|
7.0400(lbs); 3.200
|
| 020. |
1733191030
|
[1] |
BOLT
|
0.0000(lbs); 0.000
|
| 020. |
1736791030
|
[1] |
BOLT
|
0.0836(lbs); 0.038
|
| 030. |
1552194030
|
[1] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 030. |
1736705580
|
[1] |
CLAMP PIPE
|
0.0000(lbs); 0.000
|
| 040. |
0115350830
|
[1] |
BOLT
|
0.0286(lbs); 0.013
|
| 050. |
0215650080
|
[2] |
NUT
|
0.0088(lbs); 0.004
|
| 060. |
0451250080
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 070. |
0401250080
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 080. |
0401550080
|
[1] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 090. |
0205650060
|
[1] |
NUT
|
0.0044(lbs); 0.002
|
| 100. |
0451250060
|
[1] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 110. |
1532164420
|
[1] |
STAY DYNAMO
|
0.2200(lbs); 0.100
|
| 120. |
1733174280
|
[1] |
PULLEY FAN DRIVE
|
2.8600(lbs); 1.300
|
| 120. |
H173074280
|
[1] |
PULLEY FAN DRIVE
|
2.8600(lbs); 1.300
|
| 130. |
0571200720
|
[1] |
KEY FEATHER
|
0.0176(lbs); 0.008
|
