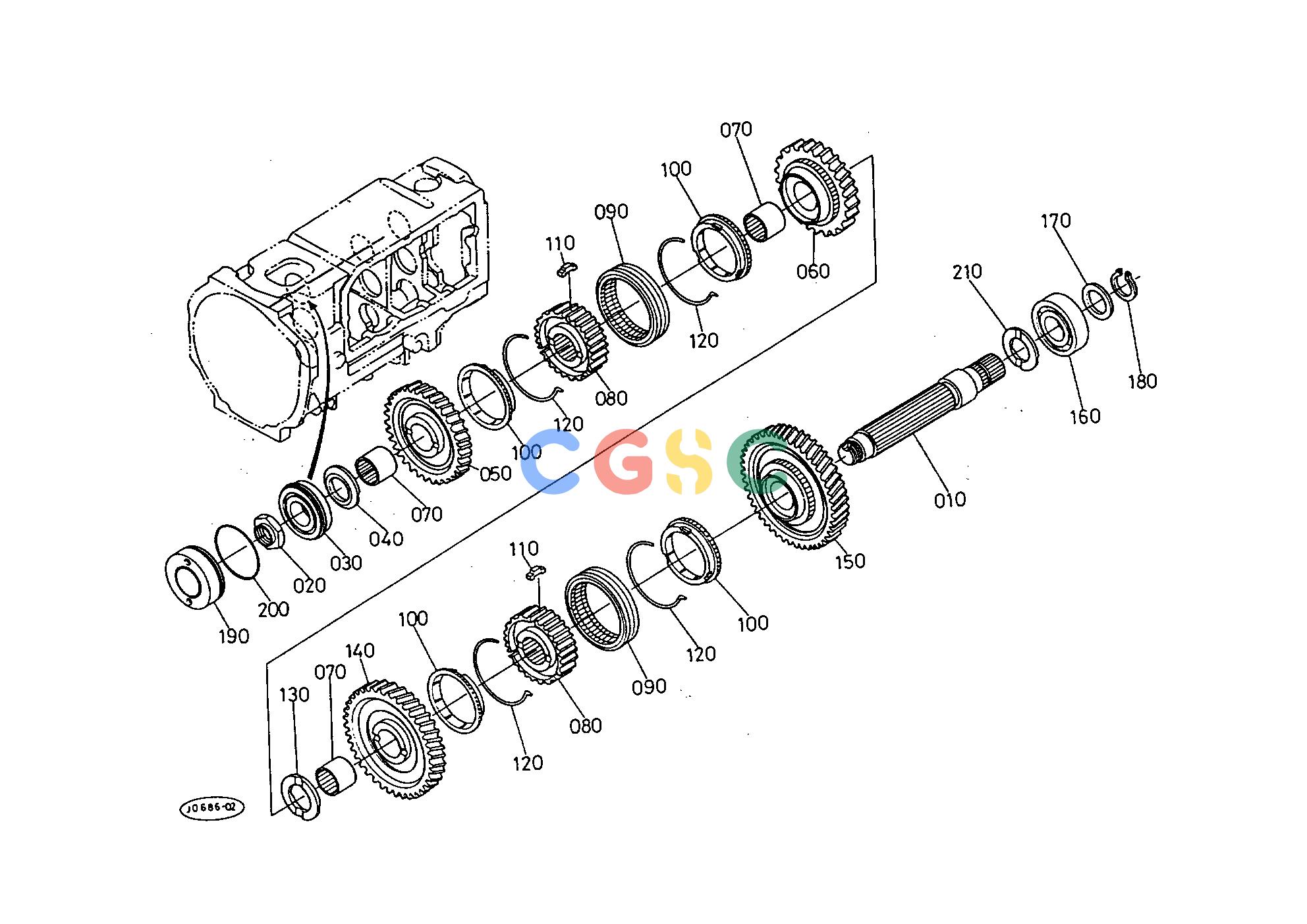

Pos.	Part No	Qty	Parts name	Comments
010.	3242067140	[1]	COUNTERSHAFT	1.9580(lbs); 0.890
020.	3242067150	[1]	NUT	0.0440(lbs); 0.020
030.	0815106205	[1]	BEARING BALL	0.2882(lbs); 0.131
040.	3537021760	[1]	COLLAR THRUST	0.0550(lbs); 0.025
050.	3242067170	[1]	GEAR	38T 1.9910(lbs); 0.905
060.	3242067190	[1]	GEAR	34T 0.0000(lbs); 0.000
070.	3135121790	[3]	RING INNER	0.1100(lbs); 0.050
080.	3243021420	[2]	COUPLING	0.0000(lbs); 0.000
090.	3243021410	[2]	SHIFTER	; <=80245 0.0000(lbs); 0.000
090.	3242067240	[2]	SHIFTER	; =>80246 0.0000(lbs); 0.000
100.	3243021432	[4]	RING SYNCHRONIZER	0.0990(lbs); 0.045
110.	3243021440	[6]	KEY SYNCHRONIZER	0.0088(lbs); 0.004
120.	3243021460	[4]	SPRING	0.0066(lbs); 0.003
130.	3243021760	[1]	COLLAR THRUST	0.0660(lbs); 0.030
140.	3242067210	[1]	GEAR	43T 0.0000(lbs); 0.000
150.	3242067230	[1]	GEAR	46T 2.9700(lbs); 1.350
150.	H324067230	[1]	GEAR	46T 2.9700(lbs); 1.350
160.	3845021980	[1]	BEARING BALL	0.4950(lbs); 0.225
170.	3415021560	[1]	WASHER	0.0110(lbs); 0.005
180.	3715021551	[1]	CIR-CLIP EXTERNAL	0.0110(lbs); 0.005
190.	3824021650	[1]	COVER BEARING	0.1980(lbs); 0.090
200.	0481150550	[1]	RING	0.0044(lbs); 0.002
210.	3537021760	[1]	COLLAR THRUST	0.0550(lbs); 0.025
