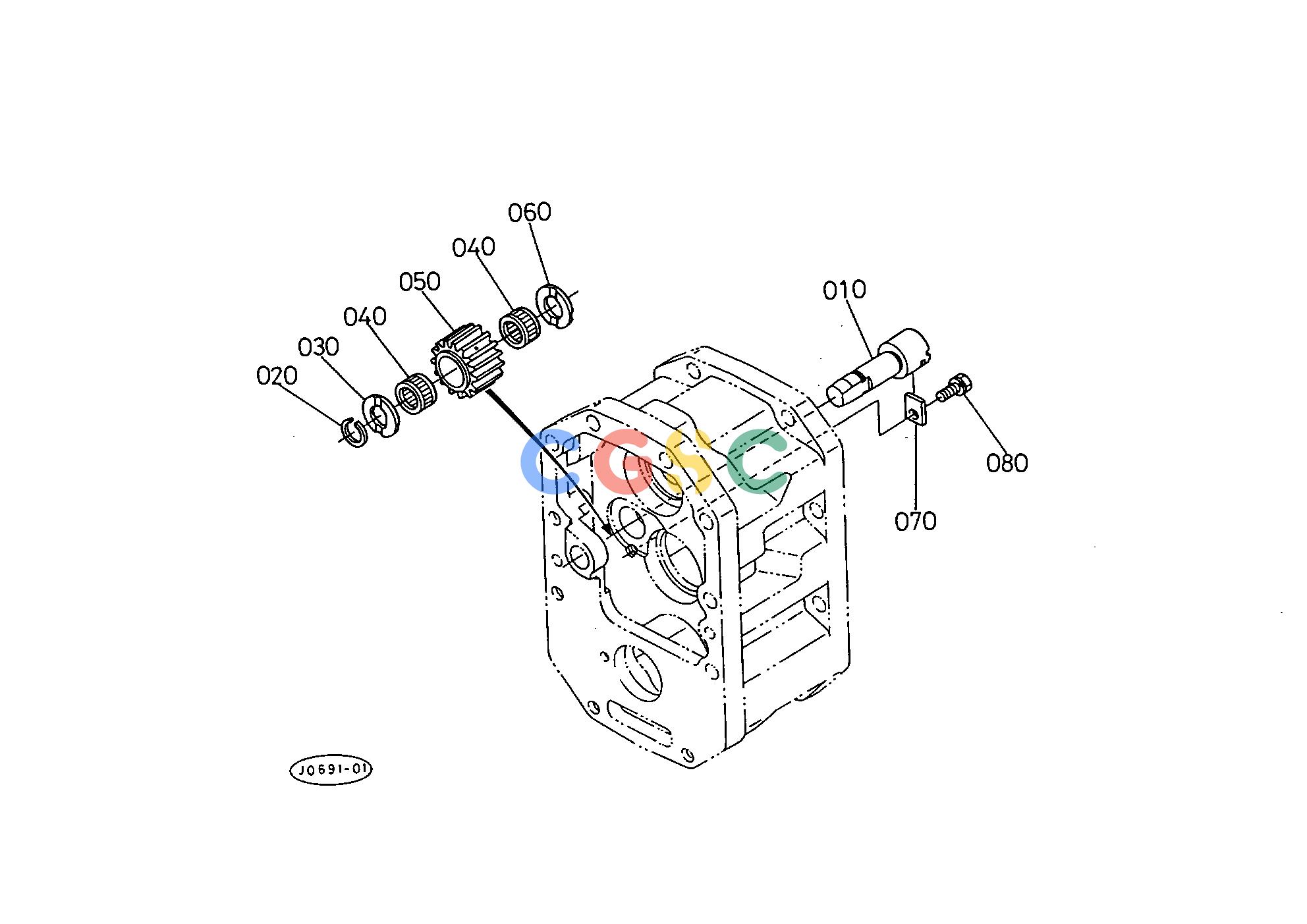

久保田零件查询T07800 REVERSE SHAFT TRANSMISSIONEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
390 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3242067560
|
[1] |
SHAFT REVERSE
|
0.5940(lbs); 0.270
|
| 020. |
3242067570
|
[1] |
CIR-CLIP EXTERNAL
|
0.0110(lbs); 0.005
|
| 030. |
3242067580
|
[1] |
COLLAR
|
0.0440(lbs); 0.020
|
| 040. |
3242067610
|
[2] |
BEARING NEEDLE
|
0.0660(lbs); 0.030
|
| 050. |
3242067620
|
[1] |
GEAR
|
0.5720(lbs); 0.260
|
| 060. |
3136122780
|
[1] |
COLLAR
|
0.0220(lbs); 0.010
|
| 070. |
3526023210
|
[1] |
STOPPER
|
0.0110(lbs); 0.005
|
| 080. |
0112350816
|
[1] |
BOLT
|
0.0242(lbs); 0.011
|
