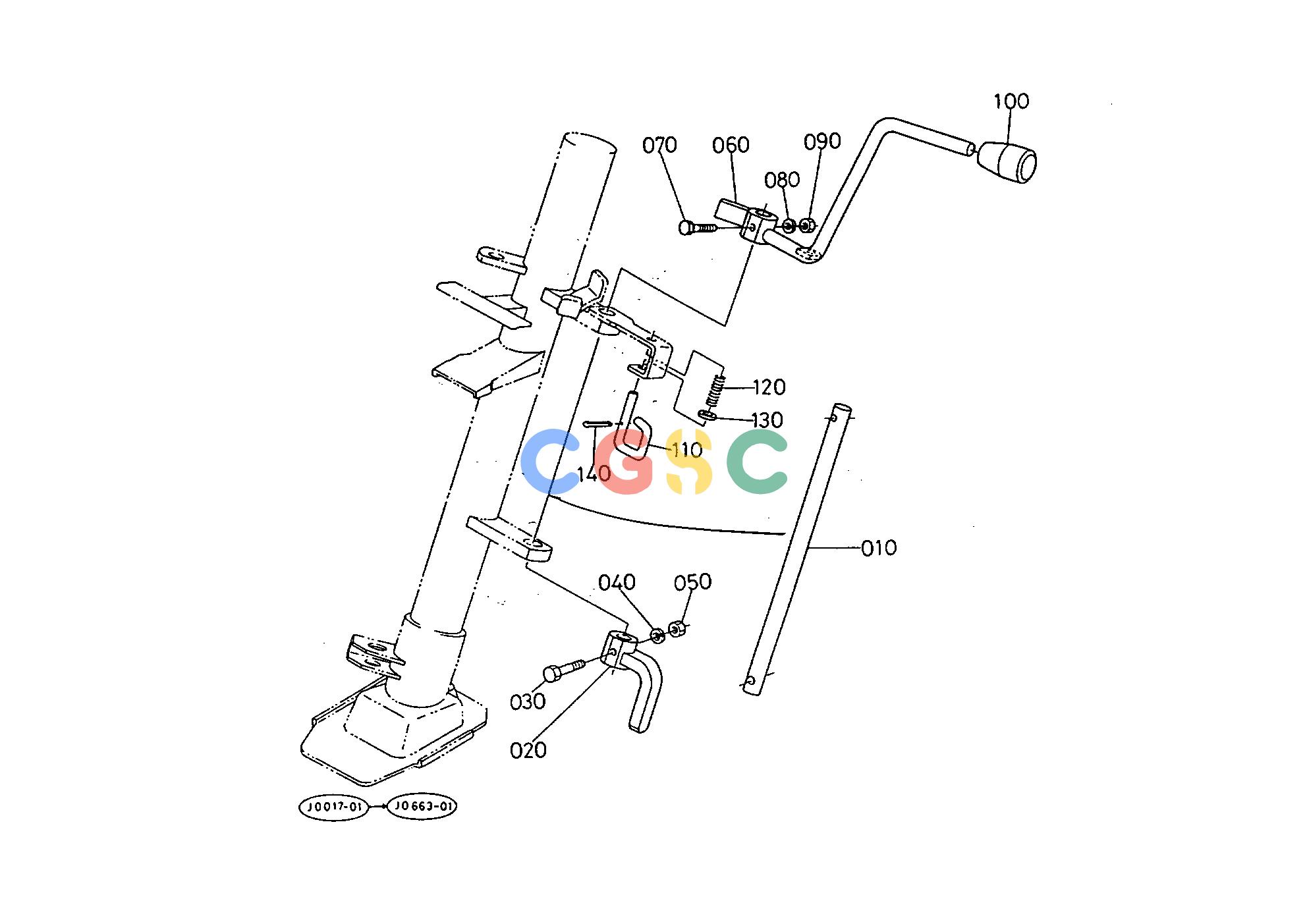

久保田零件查询T08200 SHUTTLE GEAR SHIFT LEVER SPEED CHANGE LEVEREPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
626 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3243017370
|
[1] |
SHAFT SHUTTLE CONT.
|
0.9680(lbs); 0.440
|
| 020. |
3243017380
|
[1] |
ARM SHUTTLE CHANGE
|
0.4400(lbs); 0.200
|
| 030. |
3135117150
|
[1] |
BOLT REAMER
|
0.0220(lbs); 0.010
|
| 040. |
0451250060
|
[1] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 050. |
0205650060
|
[1] |
NUT
|
0.0044(lbs); 0.002
|
| 060. |
3243017510
|
[1] |
LEVER SHUTTLE CHANGE
|
0.8800(lbs); 0.400
|
| 070. |
3135117150
|
[1] |
BOLT REAMER
|
0.0220(lbs); 0.010
|
| 080. |
0451250060
|
[1] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 090. |
0205650060
|
[1] |
NUT
|
0.0044(lbs); 0.002
|
| 100. |
3135117530
|
[1] |
GRIP LEVER
|
0.0000(lbs); 0.000
|
| 110. |
3243017570
|
[1] |
PIN SHUTTLE LOCK
|
0.0660(lbs); 0.030
|
| 120. |
3243017580
|
[1] |
SPRING
|
0.0044(lbs); 0.002
|
| 130. |
0401350060
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 140. |
0551150218
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
