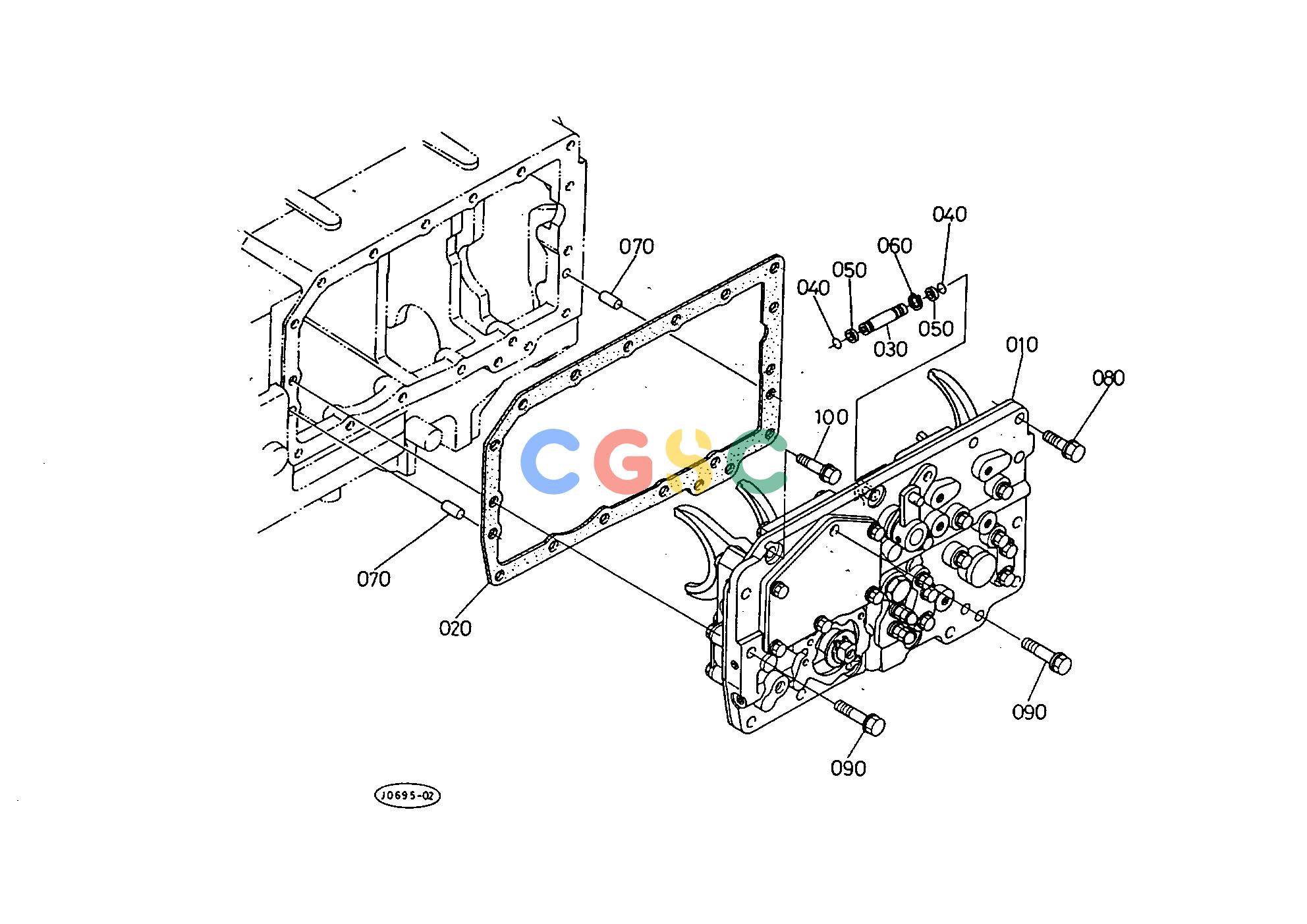

久保田零件查询T08500 SIDE COVER SPEED CHANGE LEVEREPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
518 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3242099850
|
[1] |
ASSY COVER SIDE
|
53.2400(lbs); 24.200
|
| 020. |
3242067040
|
[1] |
GASKET
|
0.0110(lbs); 0.005
|
| 030. |
3242068780
|
[1] |
PIPE CLUTCH
|
0.0000(lbs); 0.000
|
| 040. |
0481100090
|
[2] |
RING
|
0.0022(lbs); 0.001
|
| 050. |
3633082970
|
[2] |
RING BACK UP
|
0.0022(lbs); 0.001
|
| 060. |
0461200120
|
[1] |
CIR-CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 070. |
0501201020
|
[2] |
PIN STRAIGHT
|
0.0286(lbs); 0.013
|
| 080. |
0177451030
|
[15] |
BOLT FLANGE
|
0.0572(lbs); 0.026
|
| 090. |
0177451040
|
[2] |
BOLT FLANGE
|
0.0704(lbs); 0.032
|
| 100. |
0177451025
|
[1] |
BOLT FLANGE
|
0.0440(lbs); 0.020
|
