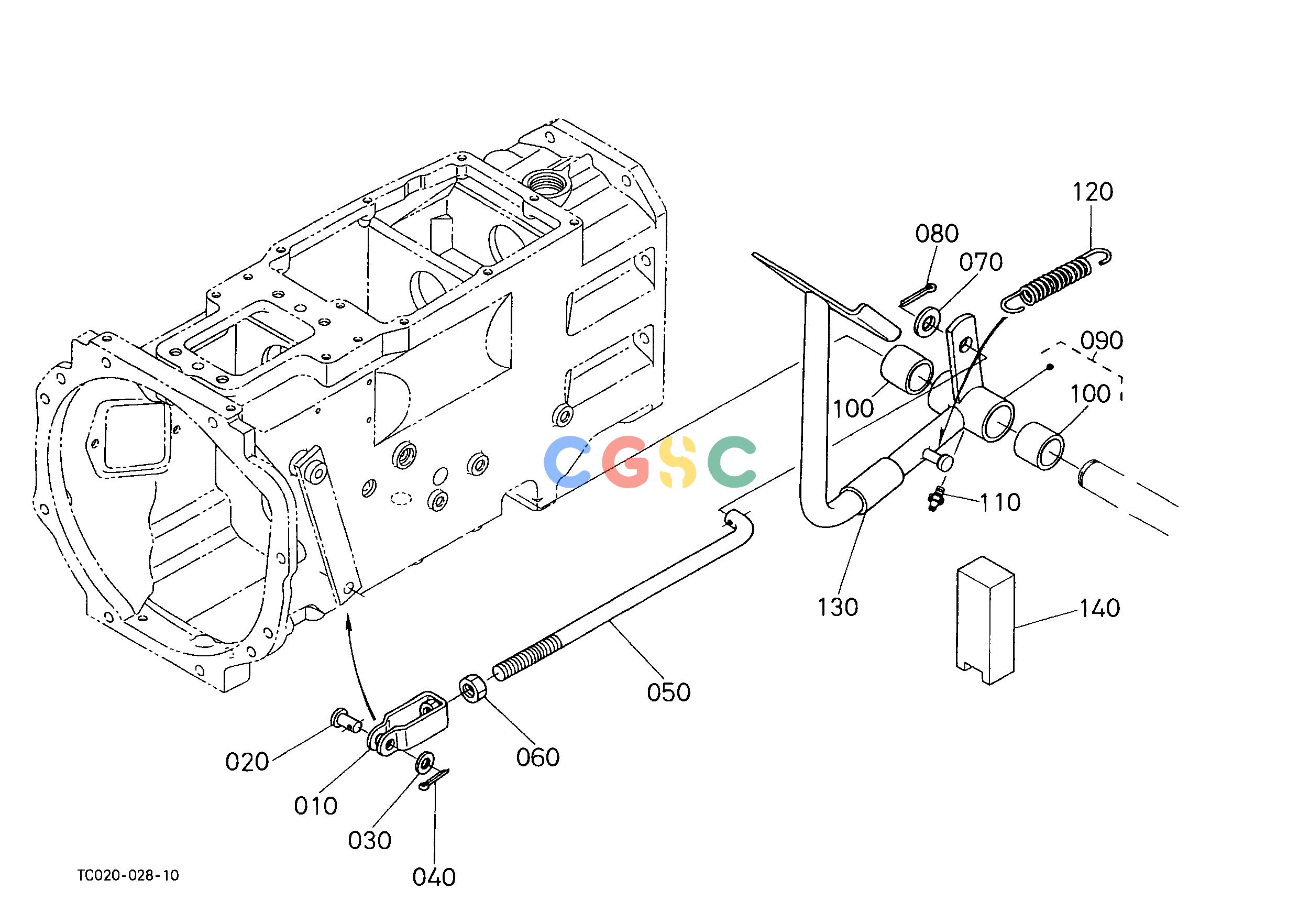

久保田零件查询C30101 CLUTCH PEDAL [OLD TYPE] ## S.No.<=52018 CLUTCH/TRANSMISSIONEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
604 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3415015630
|
[1] |
U-JOINT
|
0.2090(lbs); 0.095
|
| 020. |
0511250820
|
[1] |
PIN JOINT
|
0.0198(lbs); 0.009
|
| 030. |
0401250080
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 040. |
0551150220
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 050. |
3415015640
|
[1] |
ROD CLUTCH
|
0.4180(lbs); 0.190
|
| 060. |
0217250120
|
[1] |
NUT
|
0.0220(lbs); 0.010
|
| 070. |
0401360120
|
[1] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 080. |
0551150425
|
[1] |
PIN SPLIT
|
0.0066(lbs); 0.003
|
| 090. |
3715015710
|
[1] |
PEDAL CLUTCH
|
3.0800(lbs); 1.400
|
| 100. |
3415028430
|
[2] |
BUSH
|
0.0880(lbs); 0.040
|
| 110. |
0661310675
|
[1] |
NIPPLE GREASE
|
0.0066(lbs); 0.003
|
| 120. |
3715015840
|
[1] |
SPRING
|
0.1320(lbs); 0.060
|
| 130. |
3240015830
|
[1] |
CUSHION
|
0.0110(lbs); 0.005
|
| 140. |
TC02015950
|
[1] |
PIECE DISTANCE
|
0.1342(lbs); 0.061
|
