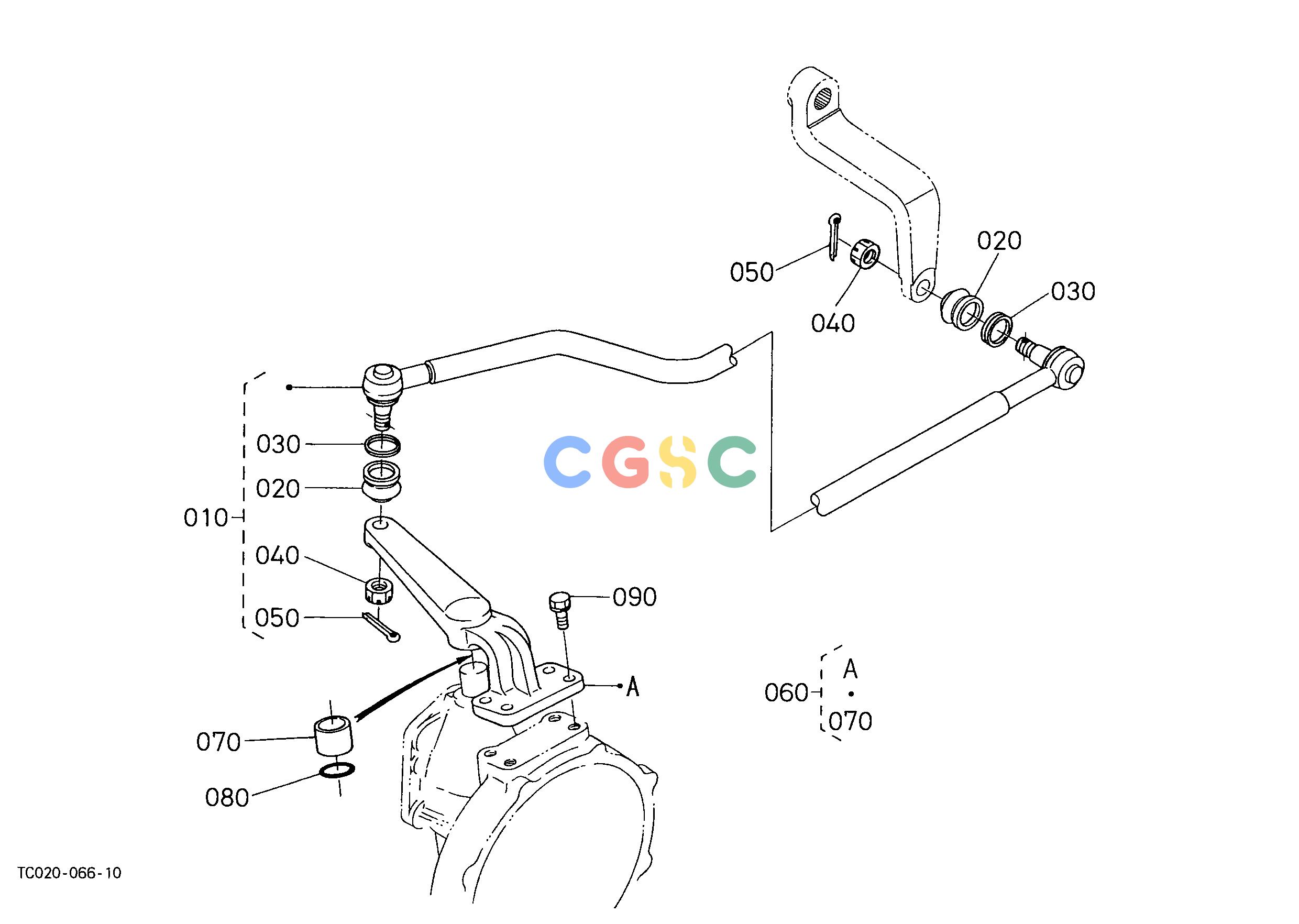

久保田零件查询G11902 STEERING LINKAGE (DRAG LINK) STEERINGEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
778 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TC01045610
|
[1] |
ASSY LINK DRAG(PS)
|
7.0400(lbs); 3.200
|
| 010. |
HTC0045600
|
[1] |
ASSY LINK DRAG(PS)
|
7.0400(lbs); 3.200
|
| 020. |
3527012650
|
[2] |
COVER DUST
|
0.0220(lbs); 0.010
|
| 030. |
3527012660
|
[2] |
CLIP
|
0.0110(lbs); 0.005
|
| 040. |
3527012670
|
[2] |
NUT
|
0.0308(lbs); 0.014
|
| 050. |
0551150328
|
[2] |
PIN SPLIT
|
0.0044(lbs); 0.002
|
| 060. |
TC02045460
|
[1] |
ASSY END DRAG LINK
|
4.3010(lbs); 1.955
|
| 070. |
3780043890
|
[1] |
BUSH
|
0.0770(lbs); 0.035
|
| 080. |
0481100260
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 080. |
0481700260
|
[1] |
O RING
|
0.0088(lbs); 0.004
|
| 090. |
0113351025
|
[4] |
BOLT
|
0.0506(lbs); 0.023
|
