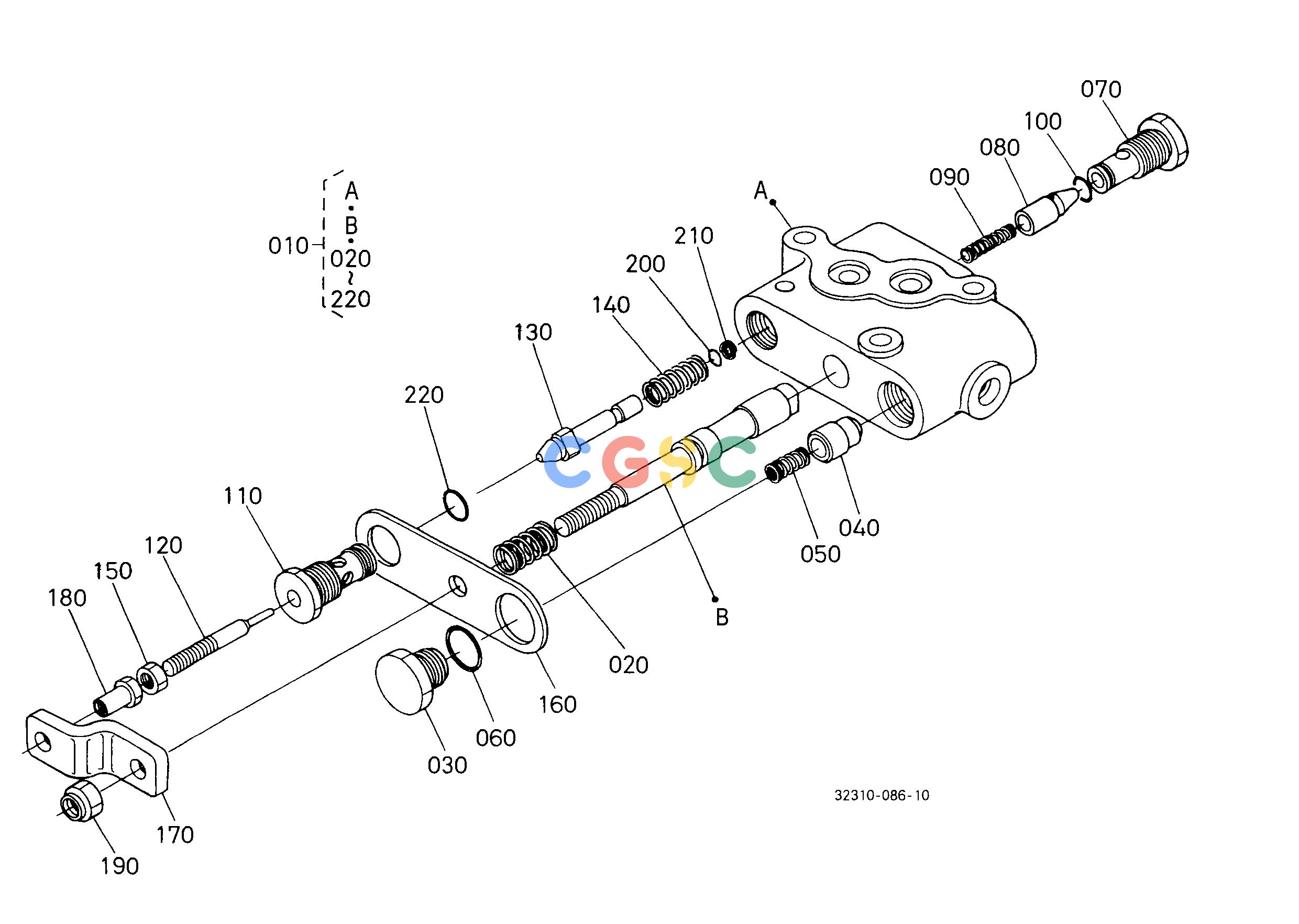

久保田零件查询H41000 CONTROL VALVE [COMPONENT PARTS] [OLD TYPE] ## S.No.<=10354 HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
816 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3139139000
|
[1] |
ASSY VALVE CONTROL
|
3.6300(lbs); 1.650
|
| 020. |
3135139130
|
[1] |
SPRING SPOOL
|
0.0110(lbs); 0.005
|
| 030. |
3135139140
|
[1] |
PLUG
|
0.1100(lbs); 0.050
|
| 040. |
3135139150
|
[1] |
POPPET
|
0.0440(lbs); 0.020
|
| 050. |
6753138470
|
[1] |
SPRING
|
0.0022(lbs); 0.001
|
| 060. |
0481600160
|
[1] |
O RING
|
0.0066(lbs); 0.003
|
| 070. |
3139139170
|
[1] |
PLUG
|
0.1100(lbs); 0.050
|
| 080. |
3139139180
|
[1] |
POPPET
|
0.0330(lbs); 0.015
|
| 090. |
3139139190
|
[1] |
SPRING
|
0.0022(lbs); 0.001
|
| 100. |
0481000090
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 100. |
0481700090
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 110. |
3135139200
|
[1] |
PLUG
|
0.0880(lbs); 0.040
|
| 120. |
3135139210
|
[1] |
RETAINER ROD
|
0.0286(lbs); 0.013
|
| 130. |
3135139180
|
[1] |
POPPET
|
0.0550(lbs); 0.025
|
| 140. |
3135139190
|
[1] |
SPRING
|
0.0176(lbs); 0.008
|
| 150. |
0205650060
|
[1] |
NUT
|
0.0044(lbs); 0.002
|
| 160. |
3135139240
|
[1] |
PLATE
|
0.1100(lbs); 0.050
|
| 170. |
3135139250
|
[1] |
PLATE JOINT
|
0.1144(lbs); 0.052
|
| 180. |
3135139260
|
[1] |
NUT ADJUSTING
|
0.0176(lbs); 0.008
|
| 190. |
3135139270
|
[1] |
U NUT
|
0.0110(lbs); 0.005
|
| 200. |
0481100050
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 200. |
0481600050
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 210. |
3135139290
|
[1] |
RING BACK UP
|
0.0022(lbs); 0.001
|
| 220. |
0481006100
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 220. |
0481706100
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
