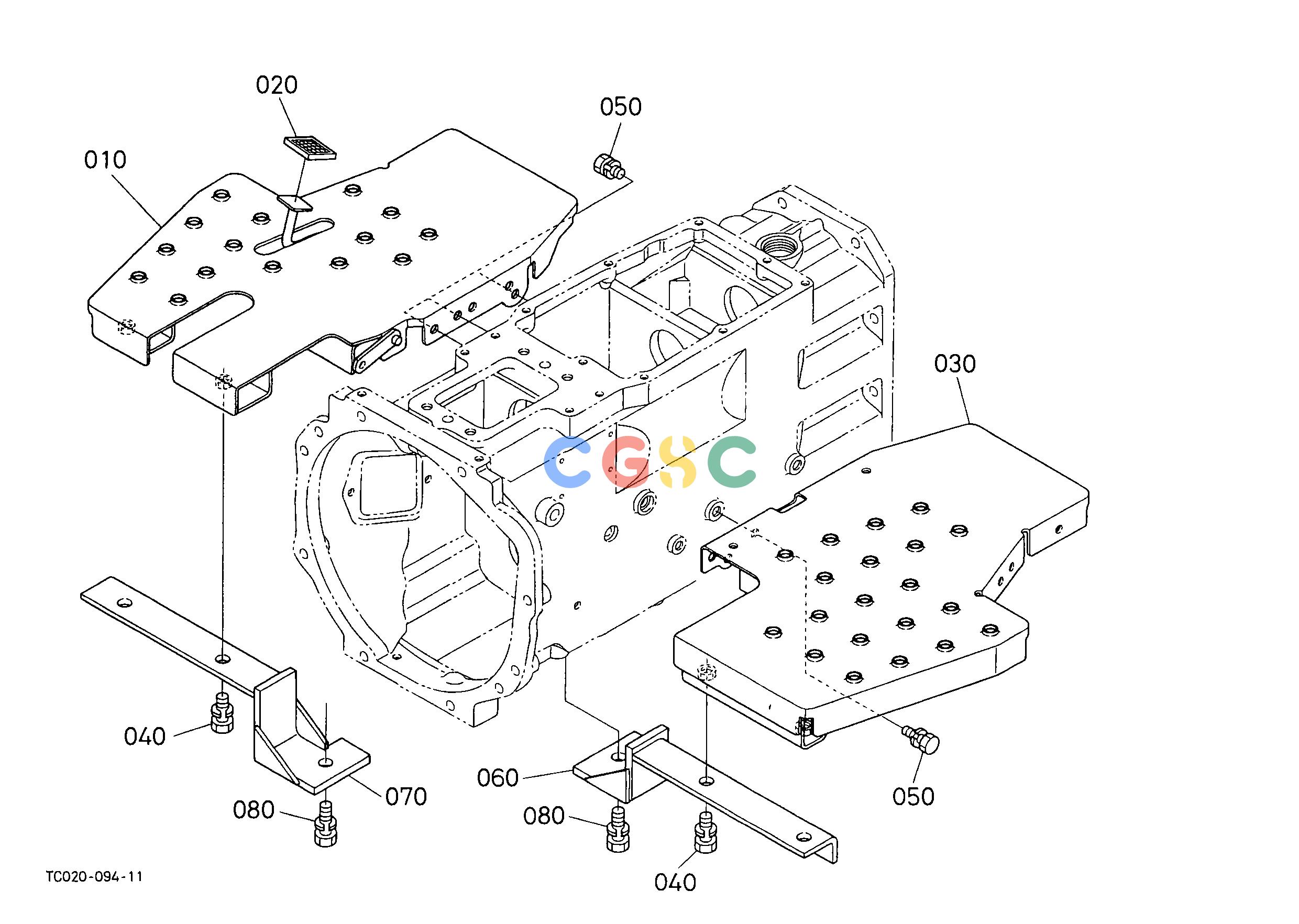

久保田零件查询L22501 STEP [OLD TYPE] ## S.No.<=10354 HOOD/BONNETEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
367 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TC02029900
|
[1] |
COMP.STEP RH
|
10.5600(lbs); 4.800
|
| 020. |
3741044850
|
[1] |
COVER ACCEL.PEDAL
|
0.0220(lbs); 0.010
|
| 030. |
TC01029920
|
[1] |
COMP.STEP LH
|
11.0000(lbs); 5.000
|
| 040. |
0113351020
|
[4] |
BOLT
|
0.0440(lbs); 0.020
|
| 050. |
0113351016
|
[6] |
BOLT
|
0.0374(lbs); 0.017
|
| 060. |
TC01029142
|
[1] |
BRACKET STEP LH
|
4.1800(lbs); 1.900
|
| 060. |
TC01029143
|
[1] |
BRACKET STEP LH
|
4.1800(lbs); 1.900
|
| 070. |
TC01029152
|
[1] |
BRACKET STEP RH
|
4.5100(lbs); 2.050
|
| 070. |
TC01029153
|
[1] |
BRACKET STEP RH
|
20.6800(lbs); 9.400
|
| 080. |
0113351230
|
[2] |
BOLT
|
0.0880(lbs); 0.040
|
