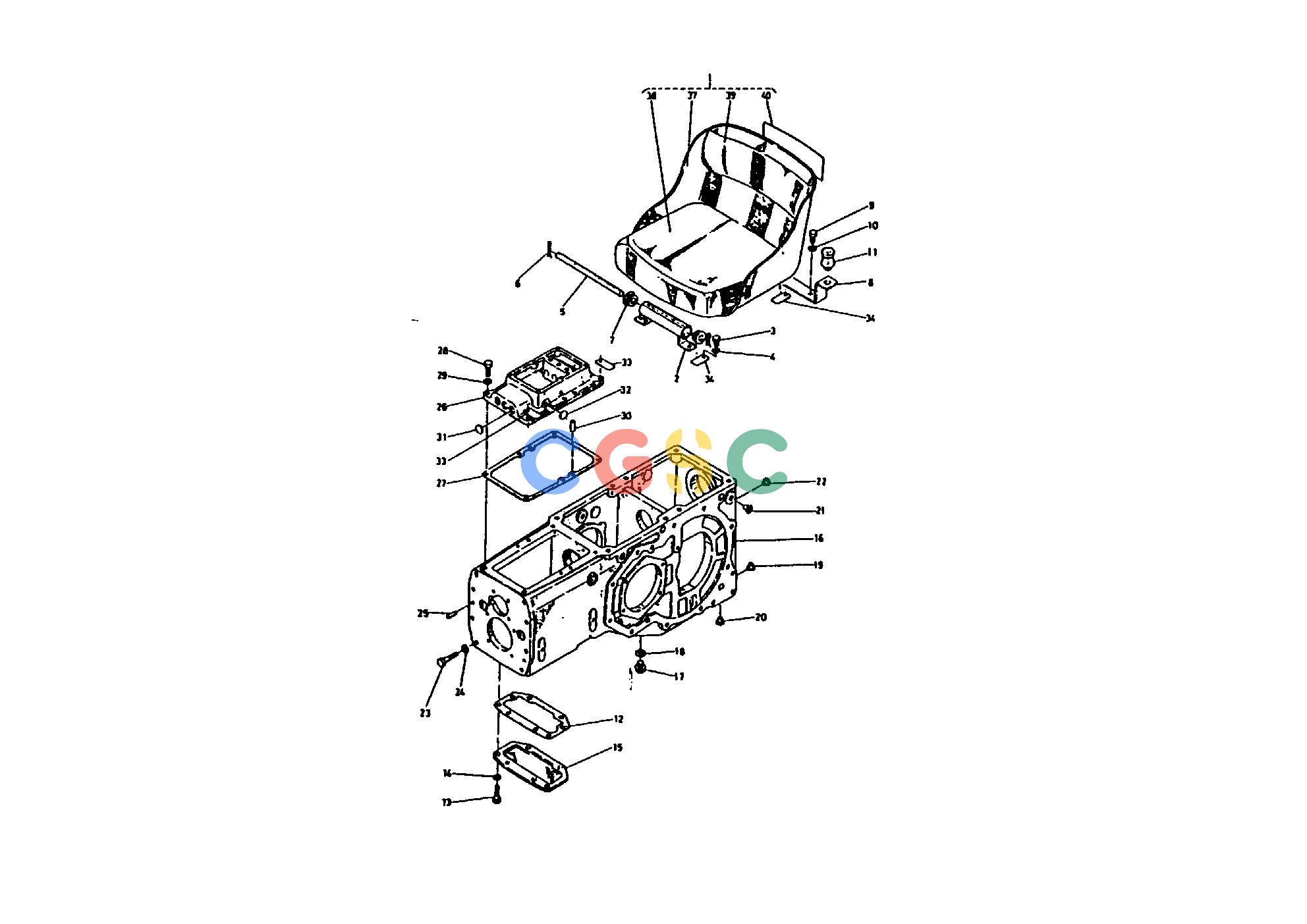

久保田零件查询180000 SEAT AND MISSION CASE TRANSMISSIONEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
498 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3214018405
|
[1] |
ASS'Y SEAT
|
0.0000(lbs); 0.000
|
| 002. |
3224018412
|
[1] |
SUPPORT SEAT
|
0.0000(lbs); 0.000
|
| 003. |
0117351018
|
[2] |
BOLT
|
0.0396(lbs); 0.018
|
| 004. |
0451210100
|
[2] |
WASHER LOCK
|
0.0000(lbs); 0.000
|
| 005. |
3216018432
|
[1] |
SHAFT SEAT SET
|
0.0000(lbs); 0.000
|
| 006. |
0551511000
|
[2] |
PIN SNAP
|
0.0000(lbs); 0.000
|
| 007. |
3216018492
|
[2] |
CUSHION
|
0.0000(lbs); 0.000
|
| 008. |
3224018484
|
[1] |
HOLDER CUSHION
|
0.0000(lbs); 0.000
|
| 009. |
0117351018
|
[2] |
BOLT
|
0.0396(lbs); 0.018
|
| 010. |
0451210100
|
[2] |
WASHER LOCK
|
0.0000(lbs); 0.000
|
| 011. |
3224018442
|
[2] |
CUSHION
|
0.0000(lbs); 0.000
|
| 012. |
3122021283
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 013. |
0117051022
|
[6] |
BOLT
|
0.0000(lbs); 0.000
|
| 014. |
0451210100
|
[6] |
WASHER LOCK
|
0.0000(lbs); 0.000
|
| 015. |
3122021272
|
[1] |
COVER CASE UNDER
|
0.0000(lbs); 0.000
|
| 016. |
3224021115
|
[1] |
CASE TRANSMISSION
|
0.0000(lbs); 0.000
|
| 017. |
3224021450
|
[1] |
PLUG
|
0.2508(lbs); 0.114
|
| 018. |
0471702150
|
[1] |
WASHER SEAL
|
0.0088(lbs); 0.004
|
| 019. |
3221027580
|
[6] |
PLUG
|
0.0022(lbs); 0.001
|
| 020. |
3122014293
|
[14] |
PLUG
|
0.0000(lbs); 0.000
|
| 021. |
3213014270
|
[2] |
PLUG
|
0.0176(lbs); 0.008
|
| 022. |
3213014290
|
[4] |
PLUG
|
0.0308(lbs); 0.014
|
| 023. |
0117351232
|
[8] |
BOLT
|
0.0814(lbs); 0.037
|
| 024. |
0451210120
|
[8] |
WASHER LOCK
|
0.0000(lbs); 0.000
|
| 025. |
0501201022
|
[2] |
PIN STRAIGHT
|
0.0308(lbs); 0.014
|
| 026. |
3224021212
|
[1] |
COVER TRANSMISSION C
|
0.0000(lbs); 0.000
|
| 027. |
3224021222
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 028. |
0115350825
|
[5] |
BOLT
|
0.0264(lbs); 0.012
|
| 029. |
0451210080
|
[6] |
WASHER LOCK
|
0.0000(lbs); 0.000
|
| 030. |
0501200820
|
[2] |
PIN STRAIGHT
|
0.0176(lbs); 0.008
|
| 031. |
0631171020
|
[3] |
PLUG EXPANSION
|
0.0000(lbs); 0.000
|
| 032. |
0631171015
|
[1] |
PLUG EXPANSION
|
0.0000(lbs); 0.000
|
| 033. |
3224034490
|
[2] |
CLAMP
|
0.0066(lbs); 0.003
|
| 034. |
3215029383
|
[2] |
CLAMP
|
0.0000(lbs); 0.000
|
| 035. |
0115350828
|
[1] |
BOLT
|
0.0308(lbs); 0.014
|
| 036. |
0117351265
|
[4] |
BOLT
|
0.1386(lbs); 0.063
|
| 037. |
3214018410
|
[1] |
SEAT PLATE
|
8.8000(lbs); 4.000
|
| 038. |
3214018450
|
[1] |
CUSHION SEAT 1
|
1.0120(lbs); 0.460
|
| 039. |
3214018460
|
[1] |
CUSHION SEAT 2
|
0.4664(lbs); 0.212
|
| 040. |
3214018470
|
[1] |
MARK KUBOTA
|
0.0044(lbs); 0.002
|
